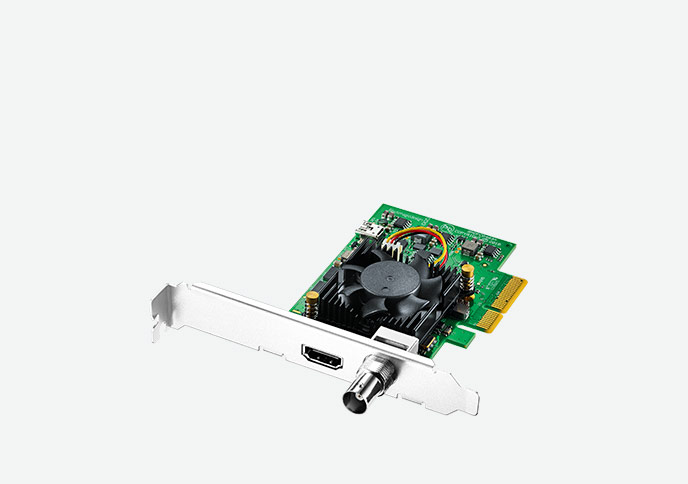

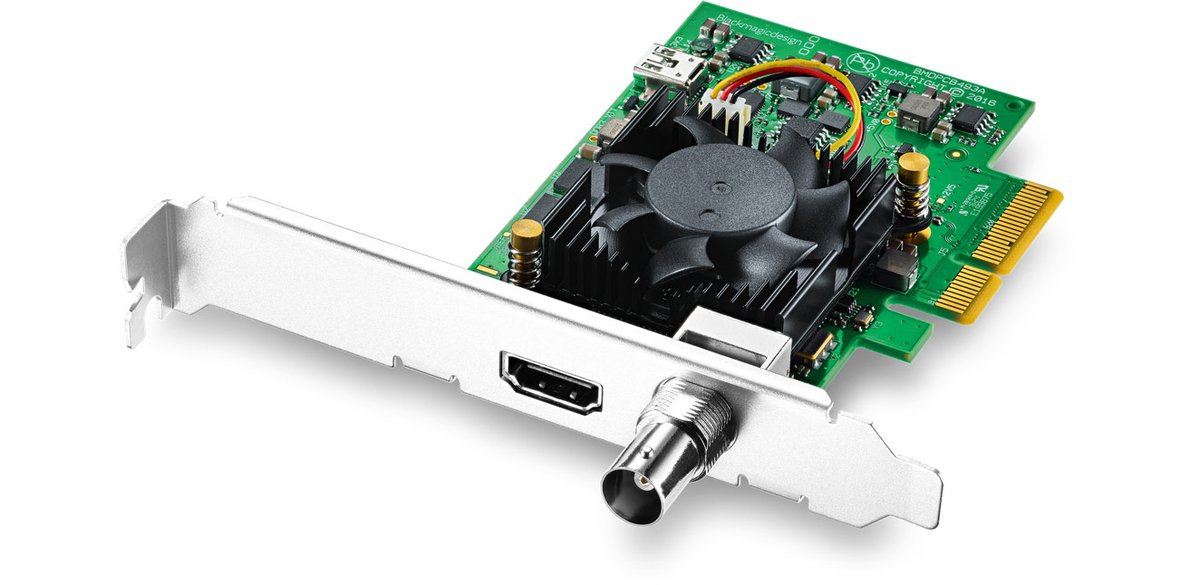

Blackmagic DeckLink Mini Recorder 4K

The DeckLink Mini Recorder 4K captures Ultra HD from a low profile PCIe slot. Its single 10-bit SDI input switches across SD, HD and Ultra HD, and an HDMI 2.0a input sits beside it, so the same card handles a 6G-SDI camera feed one day and an Ultra HD HDMI source the next.

Ultra HD capture runs to 2160p30 and 4K DCI to 25p, with HDR static metadata, HLG and PQ supported on the SDI input and 4:4:4, 4:2:2 and 4:2:0 sampling on HDMI. Sixteen audio channels embed on SDI and eight on HDMI at 48 kHz and 24-bit. The card takes a four lane generation 2 PCI Express slot on Mac, Windows and Linux. Note that the HDMI input will not capture copy protected sources.
