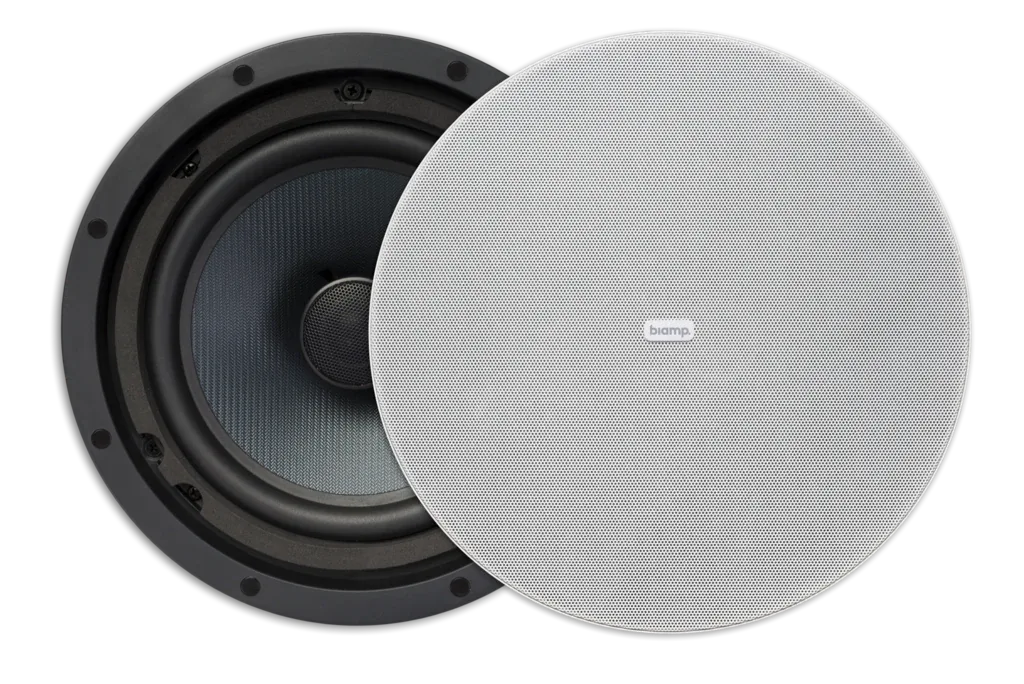

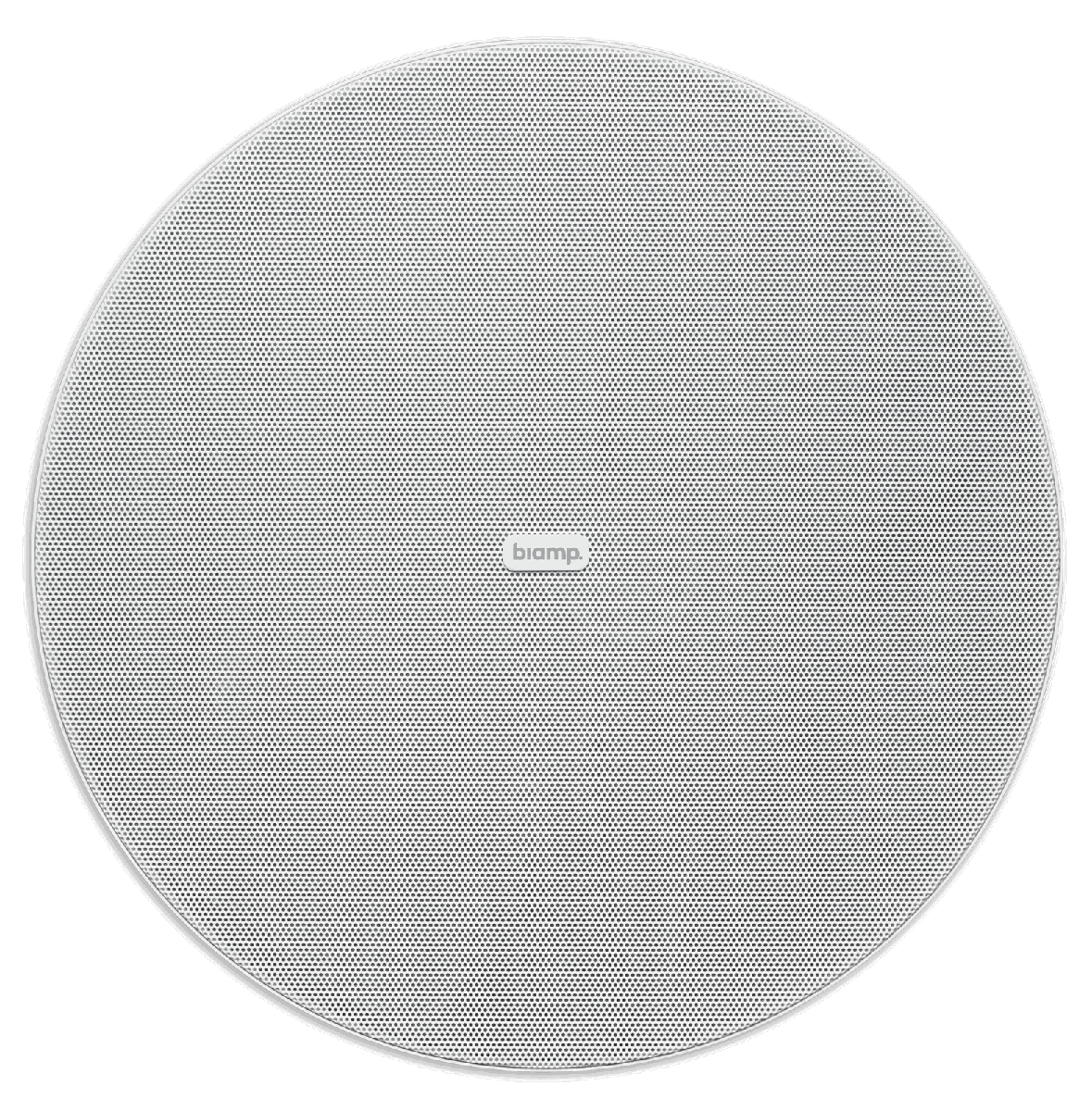

Biamp Commercial Loudspeakers CMX20DT

The Biamp Commercial Loudspeakers CMX20DT is a 2-way 8-inch thin edge 70V/100V ceiling loudspeaker built for retail and hospitality installations. Drivers are LF 1 x 8 inches enforced polypropylene; HF 1 x 1 inch. Its operating range is 50 Hz - 20 kHz. Sensitivity measures (1W/1m) 88 dB.

Power handling is rated at 50W Cont.; 200W Peak. Nominal impedance is 16 ohms. Transformer tap settings are 70V: 20W, 10W, 5W, 2.5W; 100V: 20W, 10W, 5W. Environmental rating is IP50.

Loudspeaker Type	2-way 8-inch thin edge 70V/100V ceiling loudspeaker

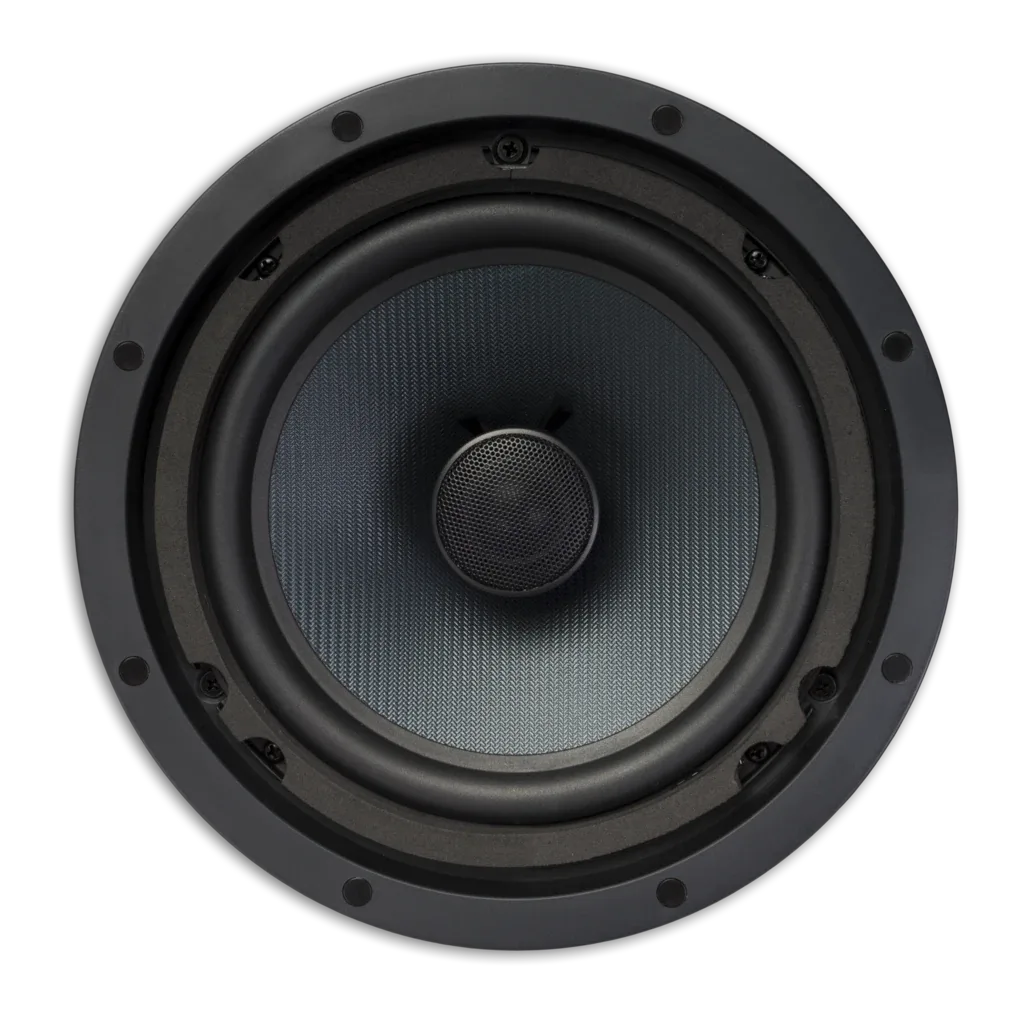

Drivers	LF 1 x 8 inches enforced polypropylene; HF 1 x 1 inch
Operating Range	50 Hz - 20 kHz
Sensitivity	(1W/1m) 88 dB
Power	50W Cont.; 200W Peak
Impedance	16 ohms
Dispersion	180 deg conical
Maximum Output	108 dB; 114 dB Peak
