Biamp Commercial Loudspeakers DC220T-M

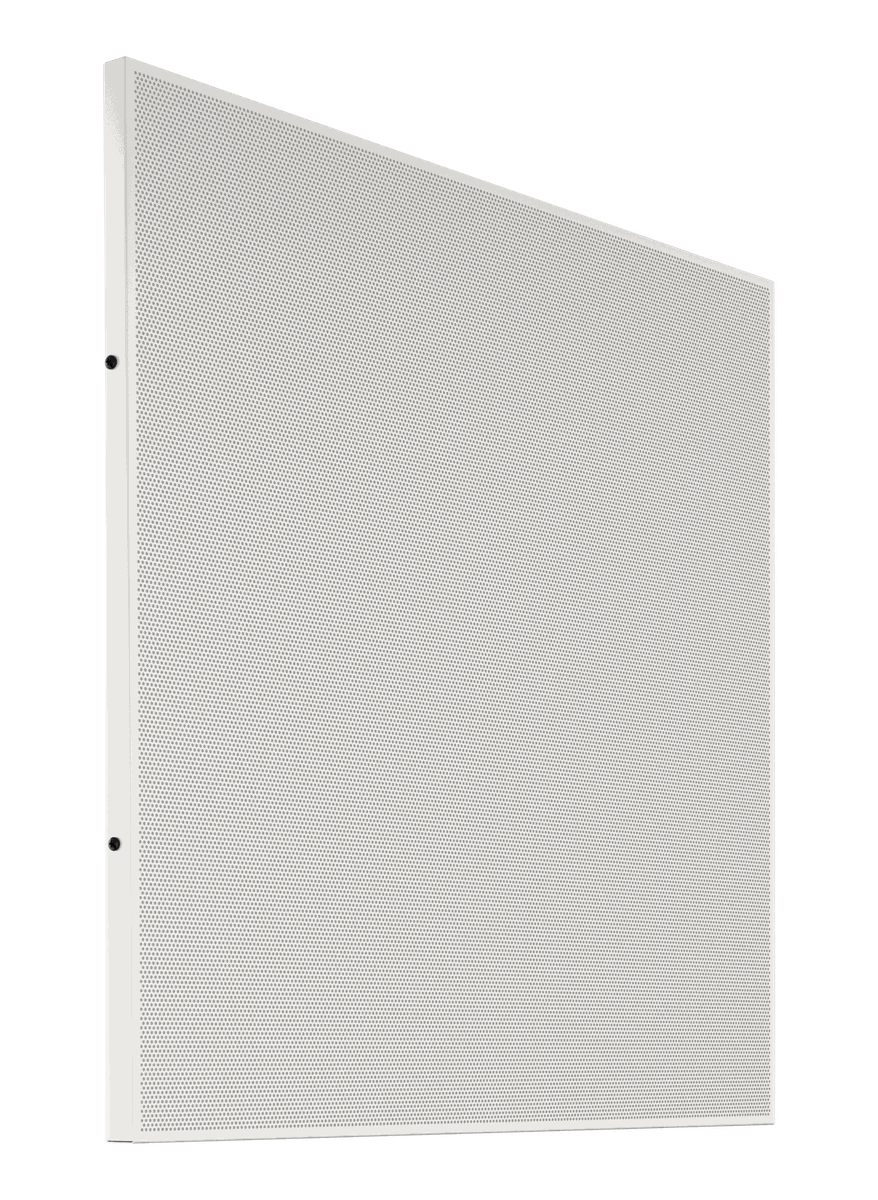

The Biamp Commercial Loudspeakers DC220T-M is a metric drop ceiling tile, full range driver, loudspeaker built for retail and hospitality installations. The transducer complement is Full Range 1 x 6.5" (165 mm) paper diaphragm driver. Its operating range is (-10 dB): 100 Hz to 18.5 kHz. Sensitivity measures @ 1m: 93 dB (2.83 V); 93 dB (1 W, 8 ohms).

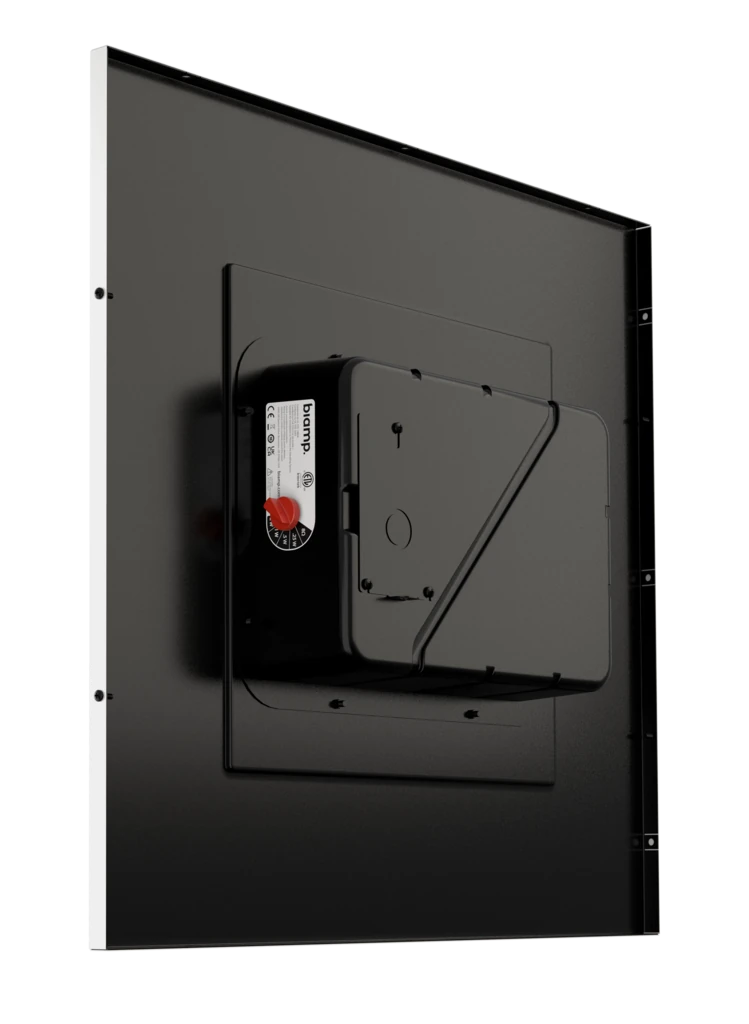

Power handling is rated at Nominal Continuous Power Handling - Passive: Continuous: 102 db; Peak: 108 db. Biamp recommends 10 W - 20 W, 8 ohms (9 V - 13 V) of amplifier power. Transformer tap settings are 70 V: 10 W, 5 W, 2.5 W, 1.25 W, 0.625 W; 100 V: 10 W, 5 W, 2.5 W, 1.25 W. Control connection is Wattage / low impedance selector switch.

Loudspeaker Type	Metric drop ceiling tile, full range driver, loudspeaker
Transducers	Full Range 1 x 6.5" (165 mm) paper diaphragm driver
Operating Range	(-10 dB): 100 Hz to 18.5 kHz
Sensitivity	@ 1m: 93 dB (2.83 V); 93 dB (1 W, 8 ohms)
Power	Nominal Continuous Power Handling - Passive: Continuous: 102 db; Peak: 108 db
Beamwidth	Nominal Beamwidth: 130 deg, (conical)
Dimensions (H x W x D)	23.48 inches (596 mm) x 23.48 inches (596 mm) x 4.22 inches (107 mm)
SPL	Nominal Maximum SPL (Processed) @ 1m; Continuous: 102 dB; Peak: 114 dB; Rated Maximum SPL (Processed) @ 1m; Continuous: 102 dB; Peak: 114 dB
