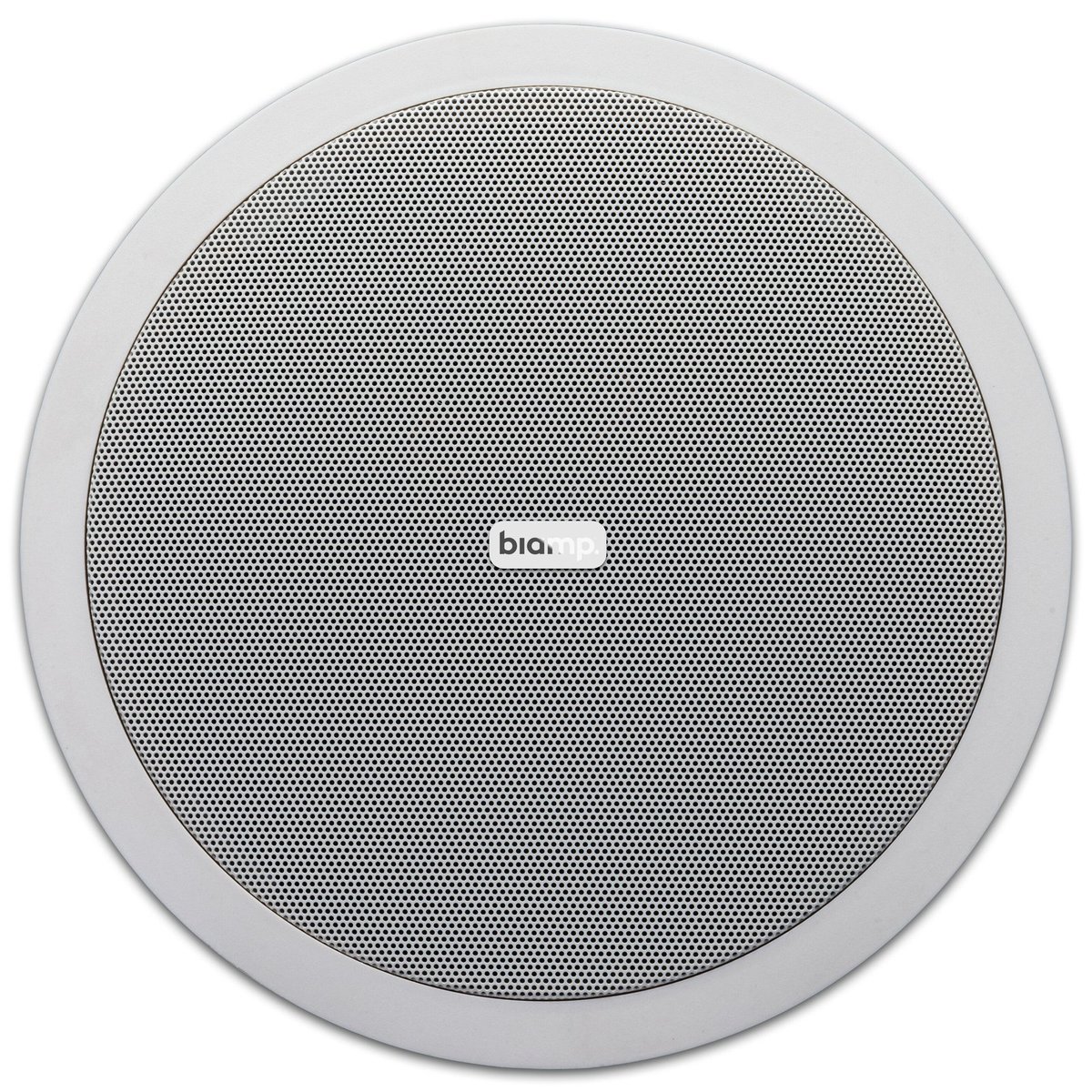

Biamp Commercial Loudspeakers CMX20T

The Biamp Commercial Loudspeakers CMX20T is a 2-way 8-inch 70V/100V ceiling loudspeaker built for retail and hospitality installations. Drivers are LF 1 x 8 inches enforced polypropylene; HF 1 x 1 inch. Its operating range is 50 Hz - 20 kHz. Sensitivity measures (1W/1m) 88 dB.

Power handling is rated at 50W Cont.; 200W Peak. Nominal impedance is 16 ohms. Transformer tap settings are 70V: 20W, 10W, 5W, 2.5W; 100V: 20W, 10W, 5W. Mounting provision: 3 screws. Order it in 2 versions: CMX20T-BL, CMX20T.

Loudspeaker Type	2-way 8-inch 70V/100V ceiling loudspeaker
Drivers	LF 1 x 8 inches enforced polypropylene; HF 1 x 1 inch
Operating Range	50 Hz - 20 kHz
Sensitivity	(1W/1m) 88 dB
Power	50W Cont.; 200W Peak
Impedance	16 ohms
Dispersion	180 deg conical
Maximum Output	108 dB; 114 dB Peak
