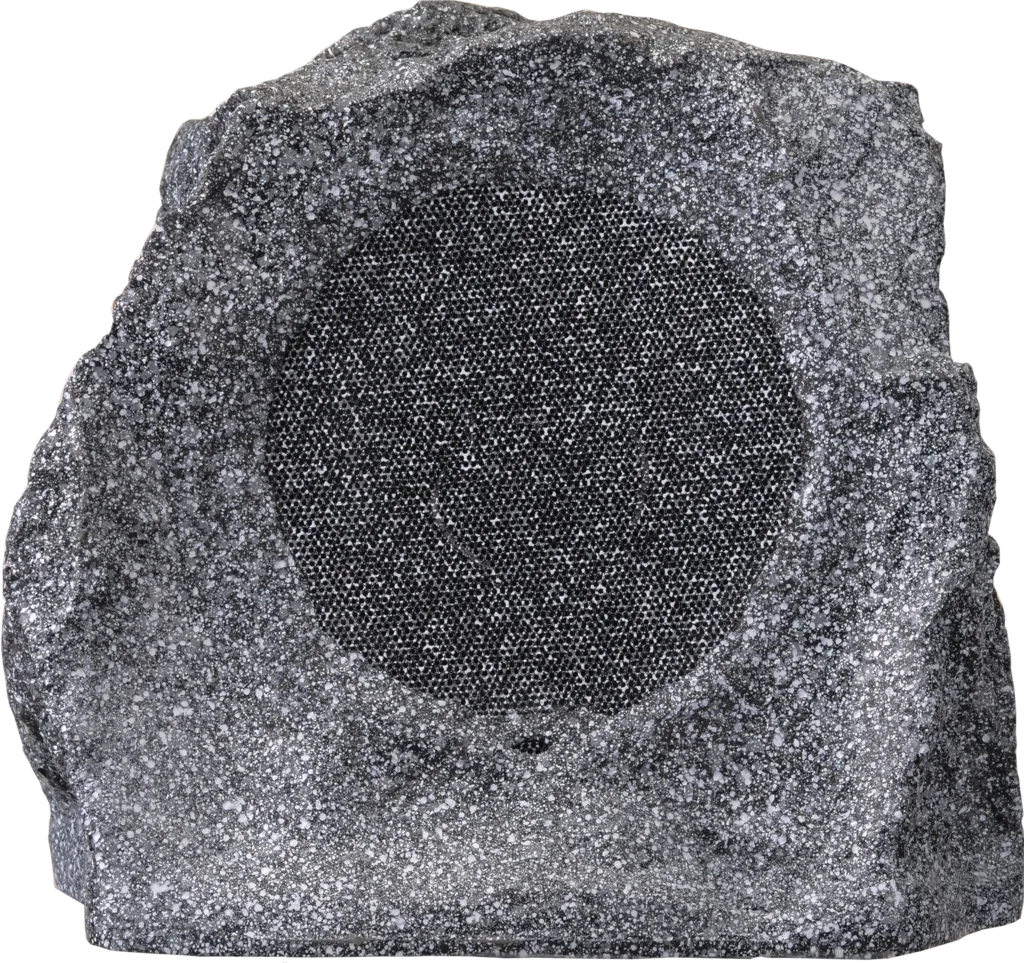

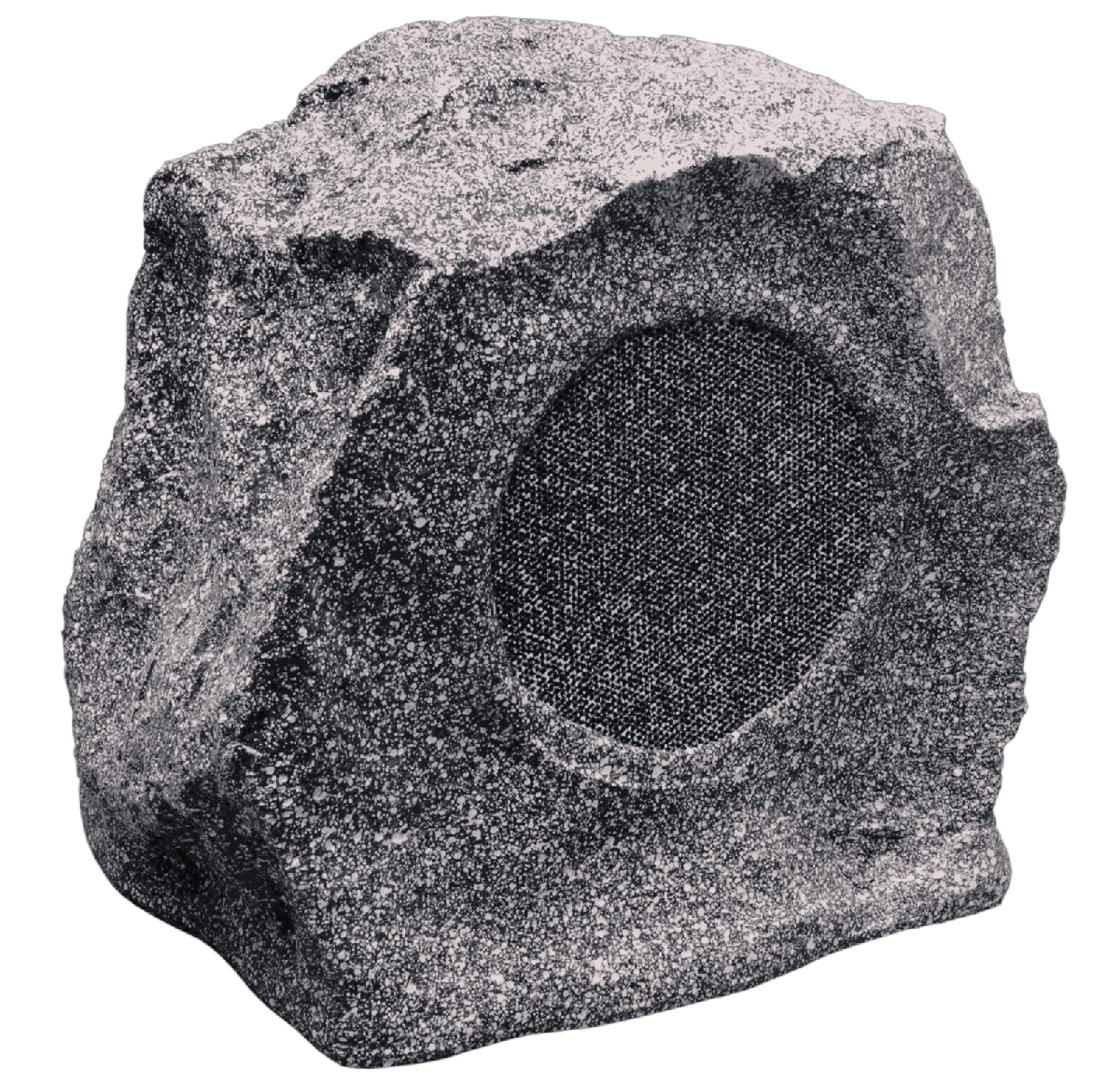

Biamp Commercial Loudspeakers ROCK20

The Biamp Commercial Loudspeakers ROCK20 is an outdoor, landscape/garden built for retail and hospitality installations. Frequency response is quoted at 60 Hz - 20 kHz. Coverage is Horizontal Dispersion Angle @ 1000 Hz: 180 deg; Vertical dispersion angle 1000 Hz: 55 deg. Rated SPL is SPL 1W/1m in dB: 98; Max SPL 1 m: 113 dB.

Power handling is rated at 25 W. Nominal impedance is 8 ohms. Transformer tap settings are 100 V transformer power taps: 20 W - 10 W - 5 W - 2.5 W; 70 V transformer power taps: 10 W - 5 W - 2.5 W - 1.25 W. Environmental rating is IP 64.

Loudspeaker TypeOutdoor, landscape/garden
Frequency Response60 Hz - 20 kHz
PowerLow impedance continuous power: 25 W
Impedance8 ohms
DispersionHorizontal Dispersion Angle @ 1000 Hz: 180 deg; Vertical dispersion angle 1000 Hz: 55 deg
SPLSPL 1W/1m in dB: 98; Max SPL 1 m: 113 dB
Dimensions (H x W x D)10.24 inches (260 mm) x 7.87 inches (200 mm) x 11.02 inches (280 mm)
Transformer100 V transformer power taps: 20 W - 10 W - 5 W - 2.5 W; 70 V transformer power taps: 10 W - 5 W - 2.5 W - 1.25 W
