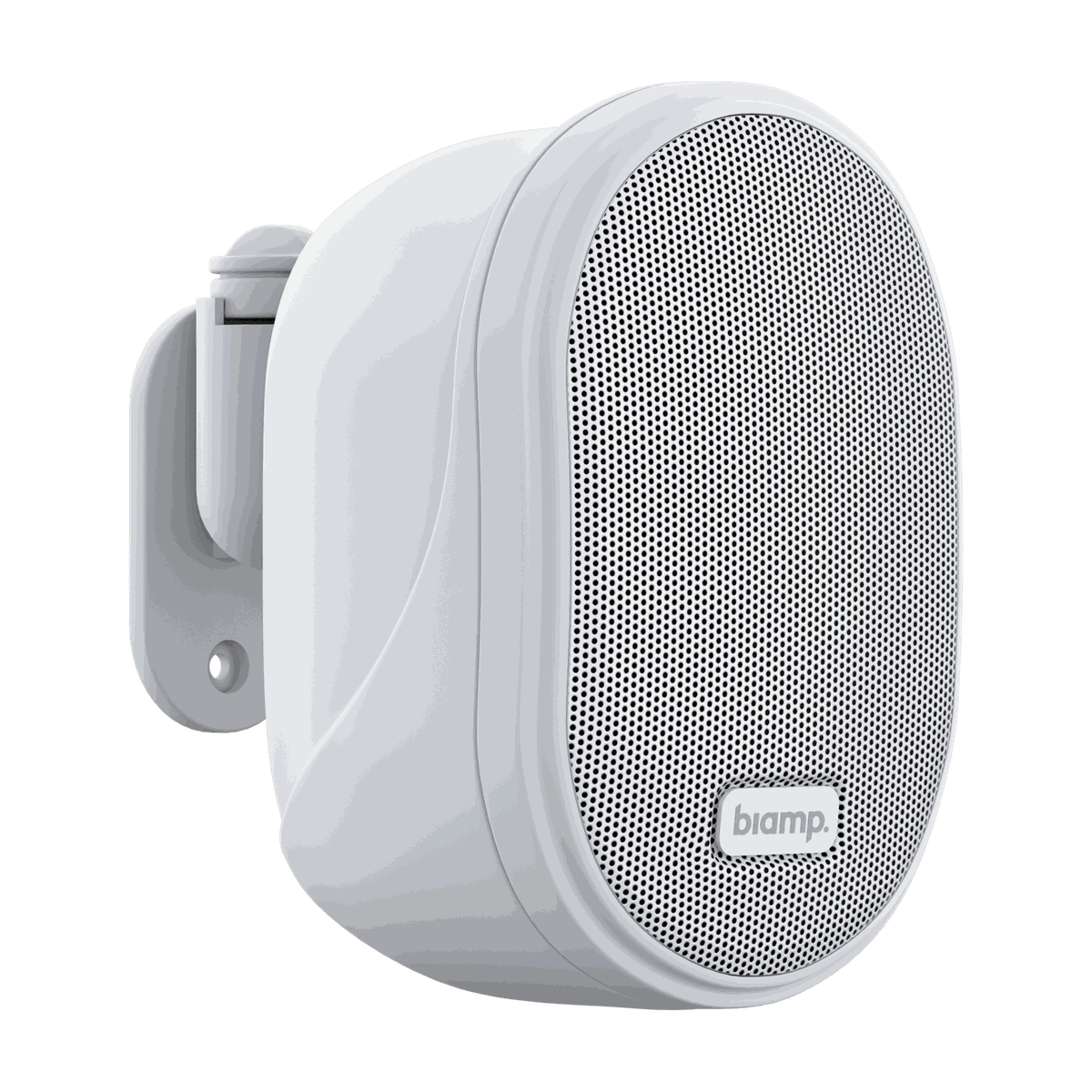

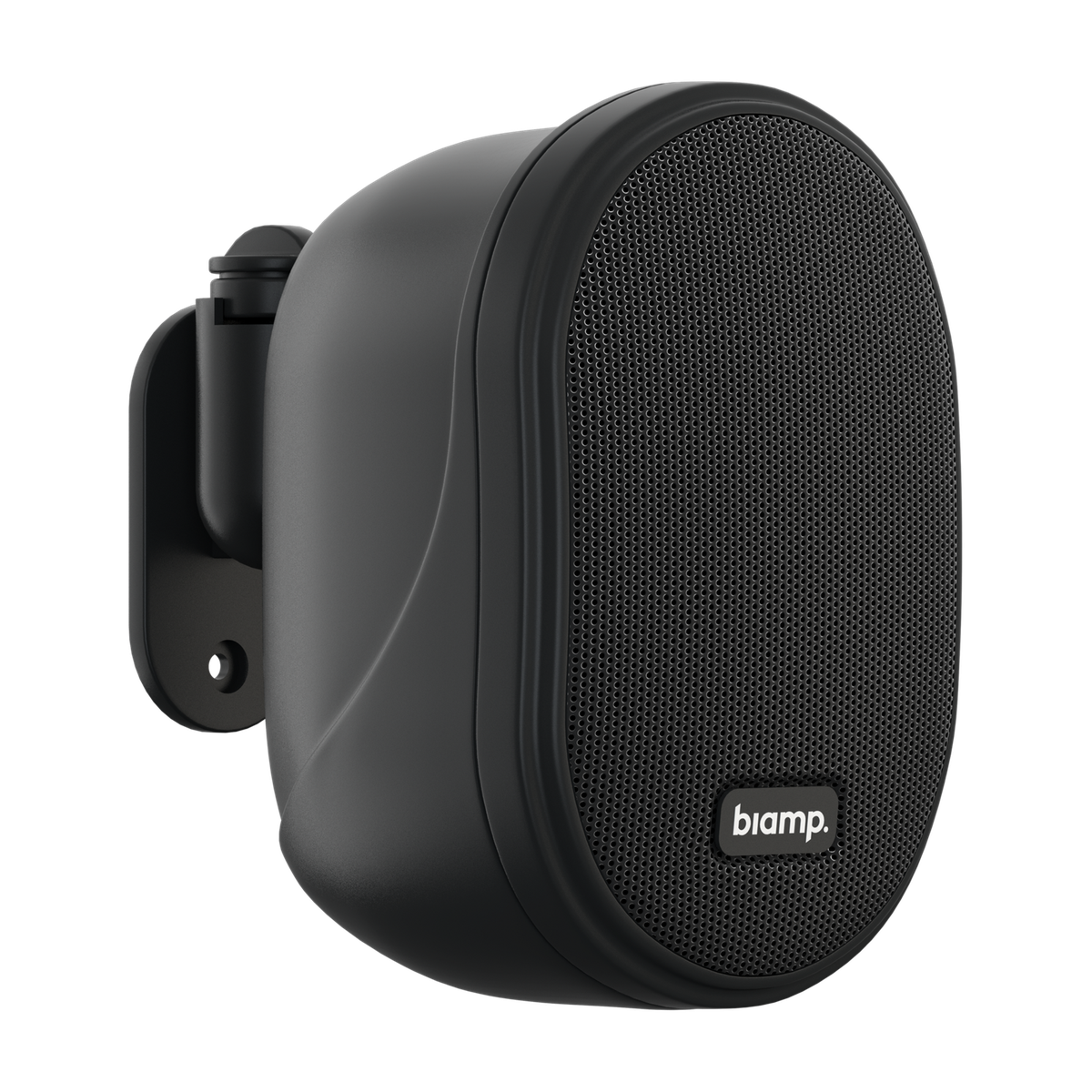

Biamp Commercial Loudspeakers OVO3T

The Biamp Commercial Loudspeakers OVO3T is a 2-way, 3-inch 70V/100V surface mount loudspeaker built for retail and hospitality installations. Drivers are LF 1 x 3 inches coated paper cone; HF 1 x 1 inch silk dome. Its operating range is 100 Hz - 20 kHz. Sensitivity measures (1W/1m) 86 dB.

Power handling is rated at 20W cont. Nominal impedance is 16 ohms. Transformer tap settings are 70V: 6W, 3W, 1.5W, 0.75W; 100V: 6W, 3W, 1.5W. It is rated for IP40 use. Order it in 2 versions: B Black, W White.

Loudspeaker Type	2-way, 3-inch 70V/100V surface mount loudspeaker
Drivers	LF 1 x 3 inches coated paper cone; HF 1 x 1 inch silk dome
Operating Range	100 Hz - 20 kHz
Sensitivity	(1W/1m) 86 dB
Power	20W cont
Impedance	16 ohms
Dimensions (H x W x D)	6.3 inches (160 mm) x 4.2 inches (108 mm) x 4.7 inches (119 mm)
Dispersion	185 deg x 135 deg
