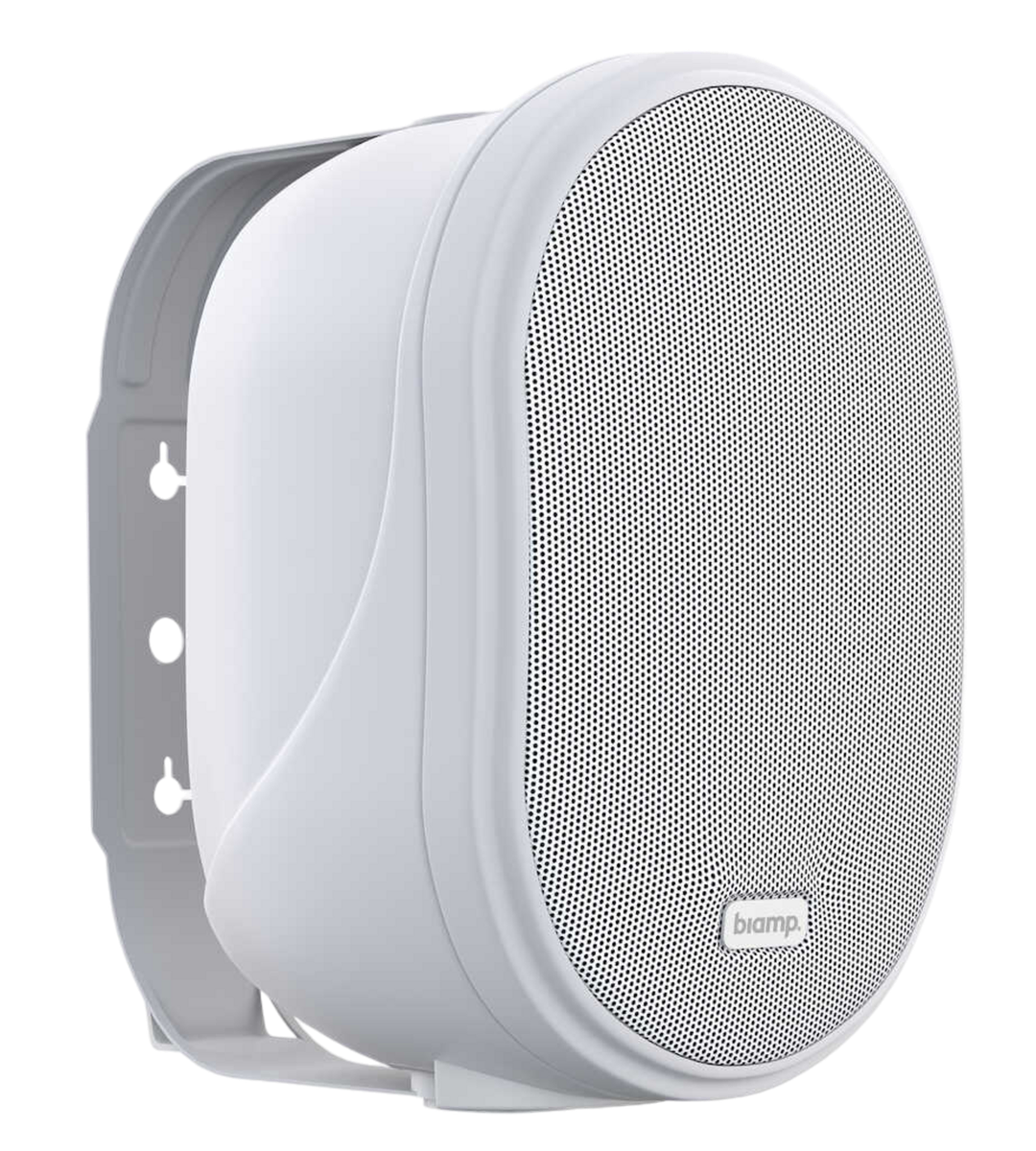

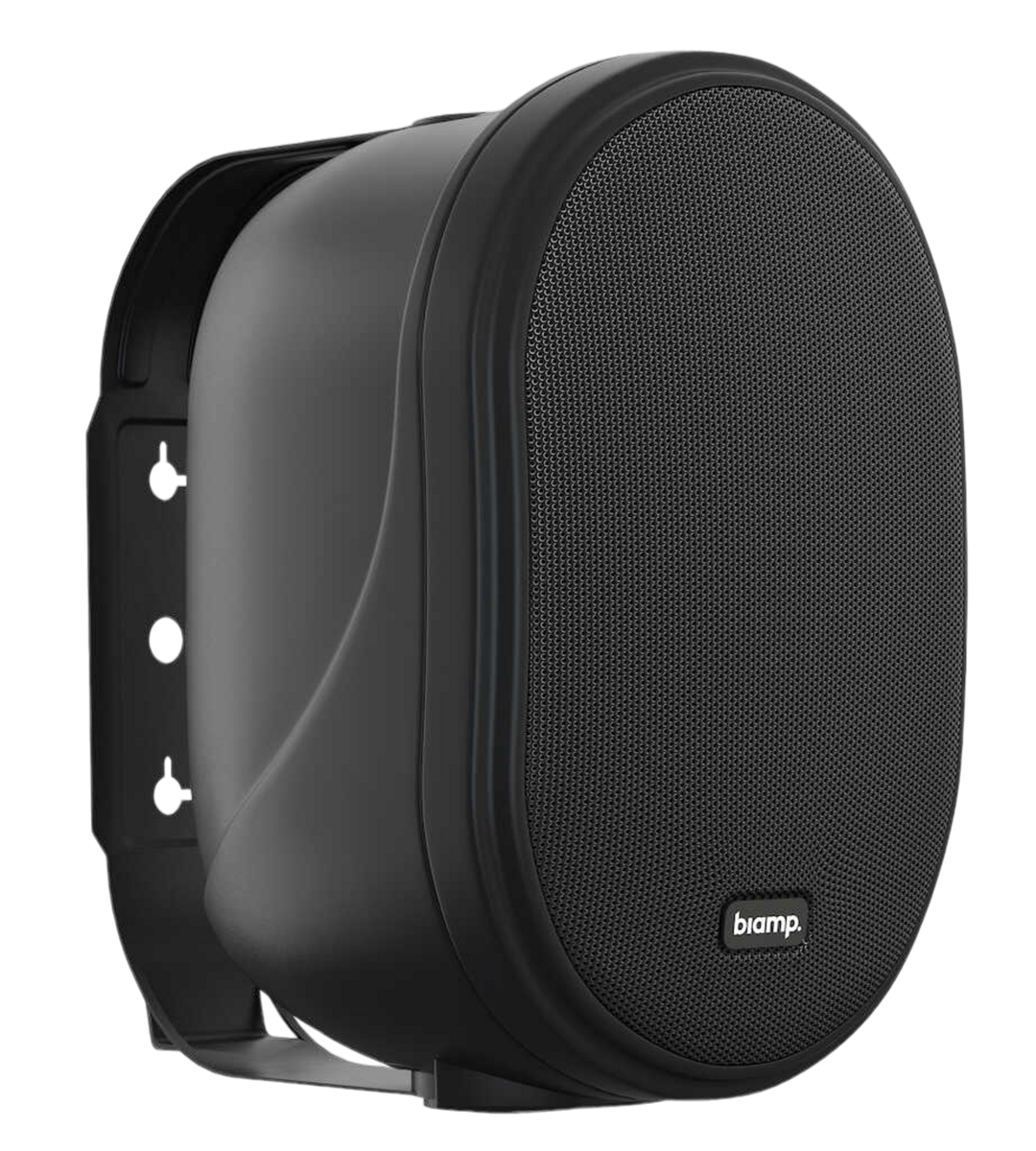

Biamp Commercial Loudspeakers OVO5T

The Biamp Commercial Loudspeakers OVO5T is a 2-way 5.25-inch 70V/100V surface mount loudspeaker built for retail and hospitality installations. Drivers are LF 1 x 5.25 inches coated paper cone; HF 1 x 1 inch silk dome. Its operating range is 74 Hz - 20 kHz. Sensitivity measures (1W/1m) 89 dB.

Power handling is rated at 40W cont. Nominal impedance is 16 ohms. Transformer tap settings are 70V: 30W, 15W, 7.5W, 3W, 1.5W; 100V: 30W, 15W, 6W, 3W. It is rated for IP40 use. Order it in 2 versions: B Black, W White.

Loudspeaker Type	2-way 5.25-inch 70V/100V surface mount loudspeaker
Drivers	LF 1 x 5.25 inches coated paper cone; HF 1 x 1 inch silk dome
Operating Range	74 Hz - 20 kHz
Sensitivity	(1W/1m) 89 dB
Power	40W cont
Impedance	16 ohms
Dimensions (H x W x D)	10.1 inches (256 mm) x 6.6 inches (167 mm) x 7.4 inches (189 mm)
Dispersion	130 deg x 100 deg
