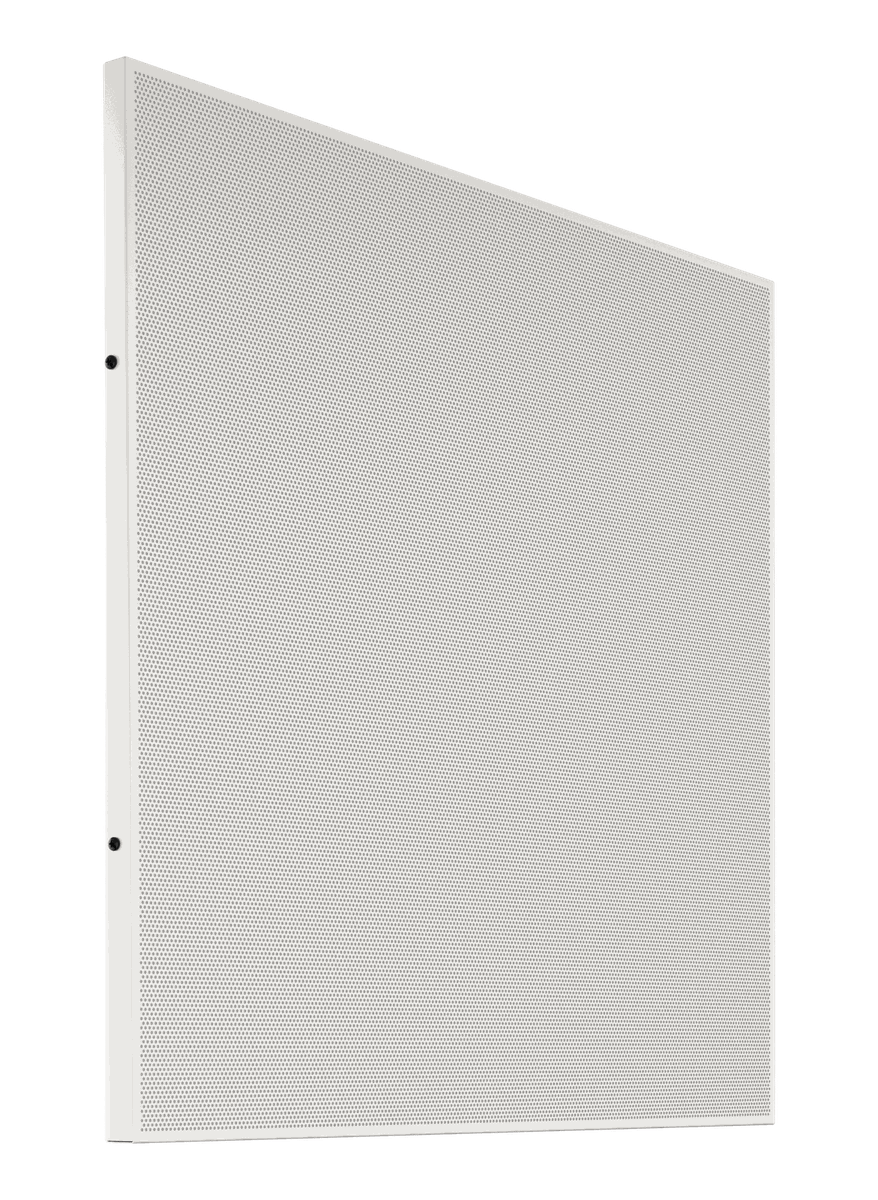

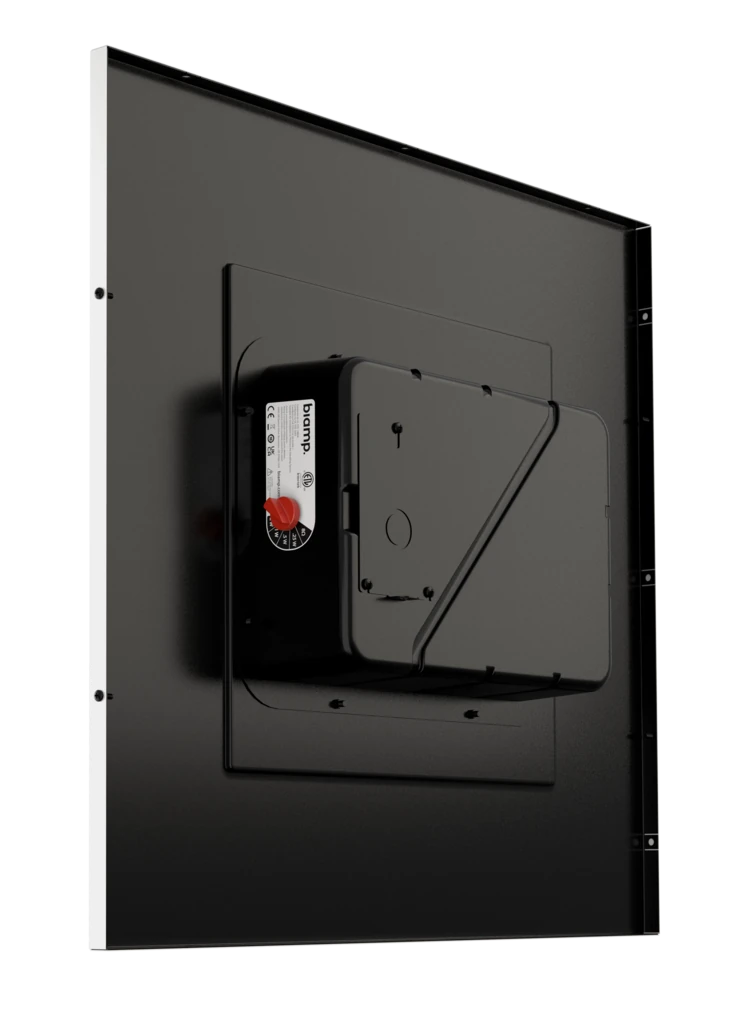

Biamp Commercial Loudspeakers DC220T White

The Biamp Commercial Loudspeakers DC220T White is a full range, 6.5-inch, 2x2 foot, ceiling tile loudspeaker built for retail and hospitality installations. The transducer complement is Full Range 1 x 6.5 inch (165 mm) paper diaphragm driver. Sensitivity measures @ 1 m: 93 dB (2.83 V); 93 dB (1 W, 8 ohms). Nominal beamwidth is Nominal: 130 deg, (conical).

Power handling is rated at Passive; 9 V (10 W @ 8 ohms). Biamp recommends 10 W - 20 W, 8 ohms (9 V - 13 V) of amplifier power. Transformer tap settings are 70 V: 10 W, 5 W, 2.5 W, 1.25 W, 0.625 W; 100 V: 10 W, 5 W, 2.5 W, 1.25 W. Control connection is Wattage / low impedance selector switch.

Loudspeaker Type	Full range, 6.5-inch, 2x2 foot, ceiling tile loudspeaker
Transducers	Full Range 1 x 6.5 inch (165 mm) paper diaphragm driver
Sensitivity	@ 1 m: 93 dB (2.83 V); 93 dB (1 W, 8 ohms)
Power	Nominal Continuous Power Handling: Passive; 9 V (10 W @ 8 ohms)
Beamwidth	Nominal: 130 deg, (conical)
SPL	Nominal Maximum SPL (Processed) @ 1 m: Continuous: 102 dB; Peak: 108 dB; Rated Maximum SPL (Processed) @ 1 m: Continuous: 102 dB; Peak: 114 dB
Dimensions (H x W x D)	23.75 inches (603 mm) x 23.75 inches (603 mm) x 4.22 inches (107 mm)
Transformer	70 V: 10 W, 5 W, 2.5 W, 1.25 W, 0.625 W; 100 V: 10 W, 5 W, 2.5 W, 1.25 W
