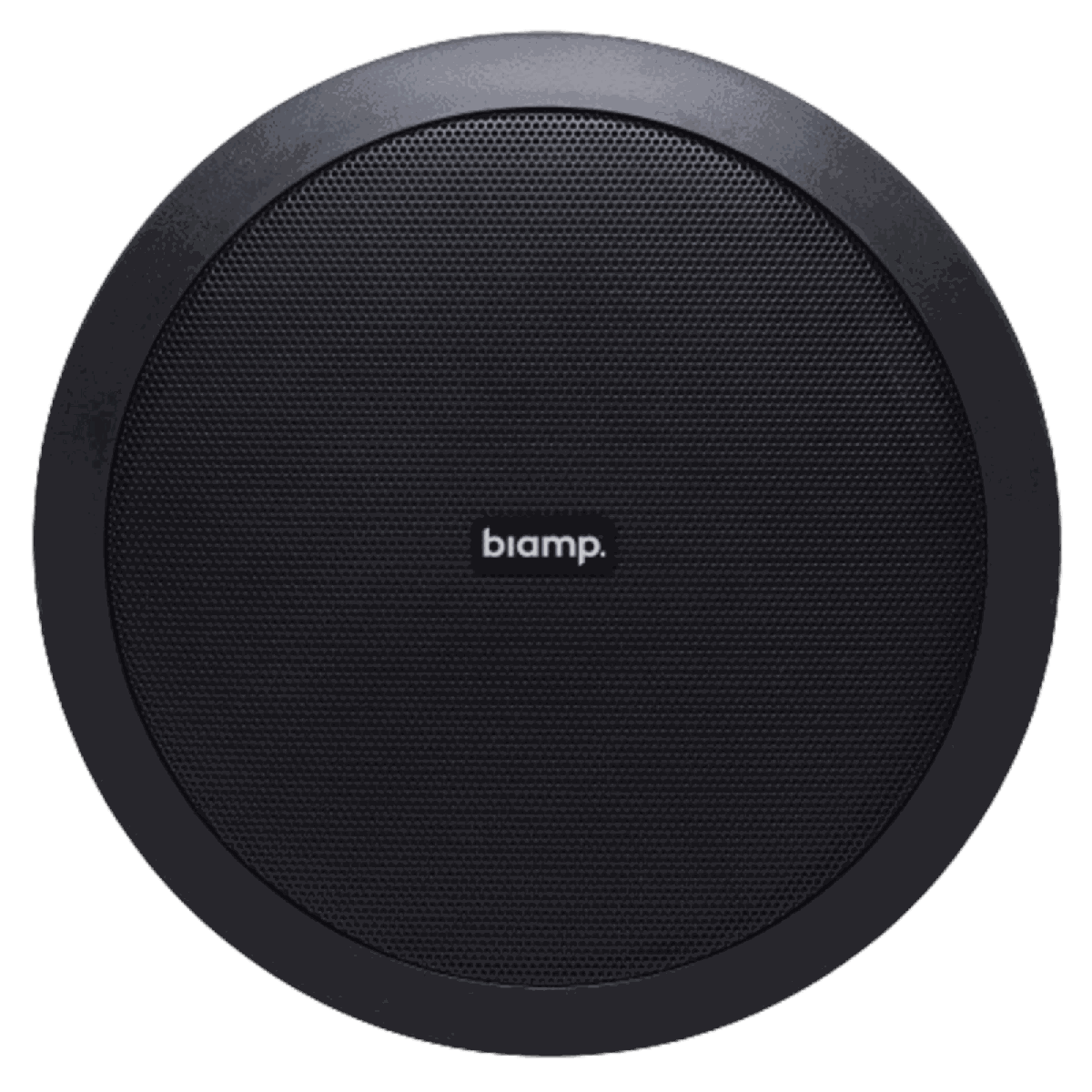

Biamp Commercial Loudspeakers CM6T

The Biamp Commercial Loudspeakers CM6T is a 2-way 6.5-inch 70V/100V ceiling loudspeaker built for retail and hospitality installations. Drivers are LF 1 x 6.5 inches enforced polypropylene; HF 1 x 1 inch. Its operating range is 60 Hz - 20 kHz. Sensitivity measures (1W/1m) 87 dB.

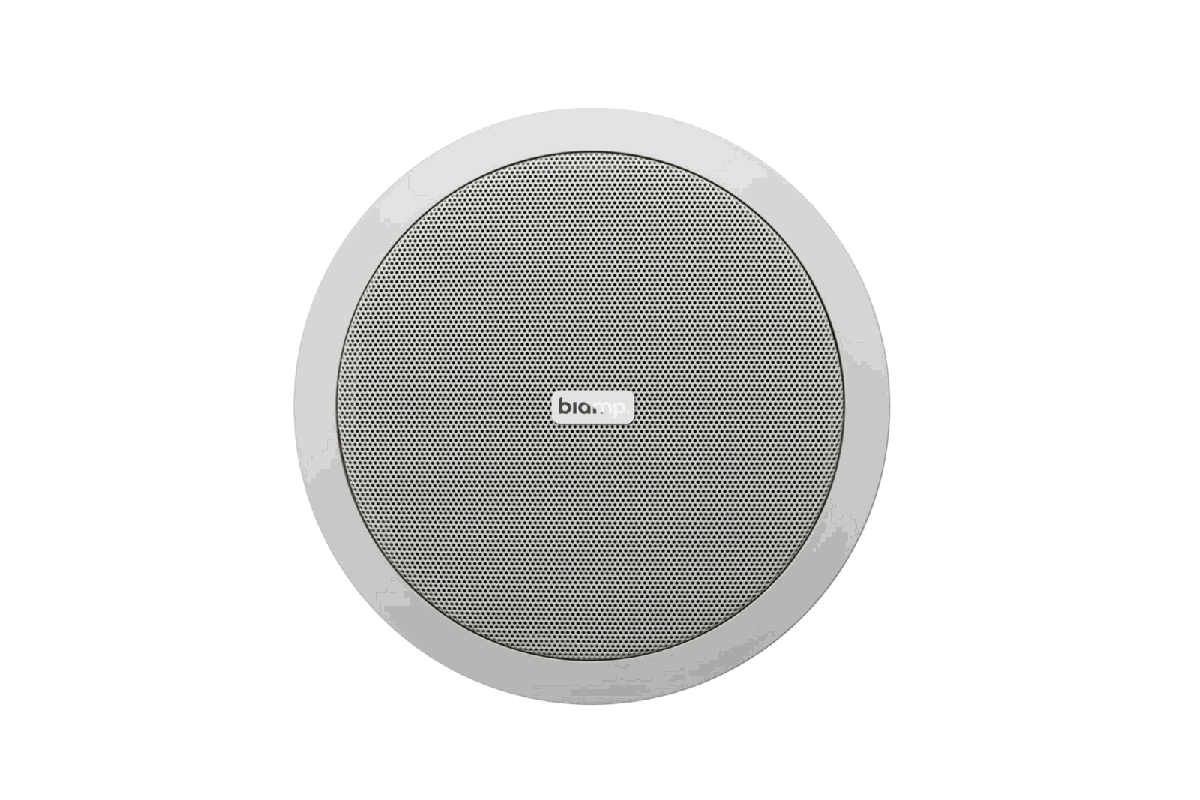

Power handling is rated at 30W Cont.; 120W Peak. Nominal impedance is 16 ohms. Transformer tap settings are 70V: 6W, 3W, 1.5W, 0.75W; 100V: 6W, 3W, 1.5W. Mounting provision: 3 screws. Order it in 2 versions: CM6T-BL, CM6T.

Loudspeaker Type	2-way 6.5-inch 70V/100V ceiling loudspeaker
Drivers	LF 1 x 6.5 inches enforced polypropylene; HF 1 x 1 inch
Operating Range	60 Hz - 20 kHz
Sensitivity	(1W/1m) 87 dB
Power	30W Cont.; 120W Peak
Impedance	16 ohms
Dispersion	180 deg conical
Maximum Output	105 dB; 111 dB Peak
