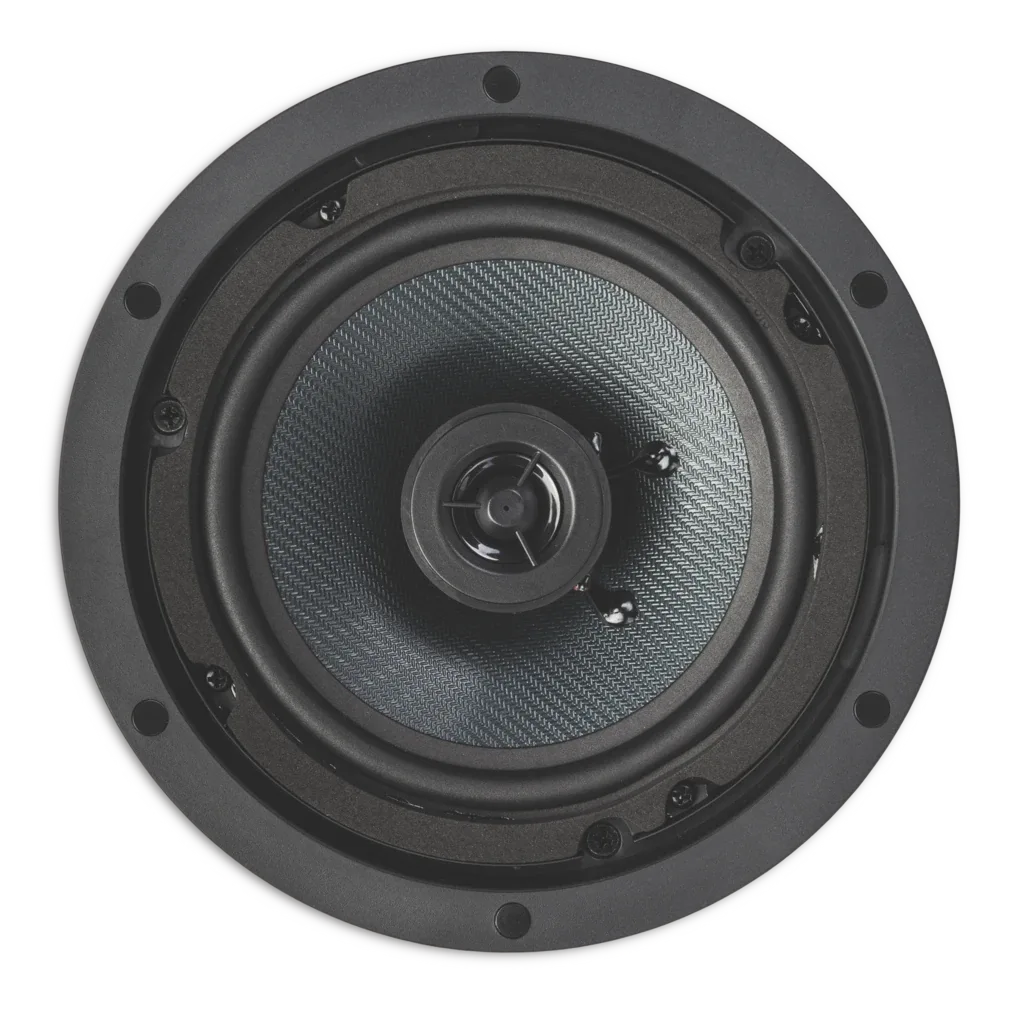

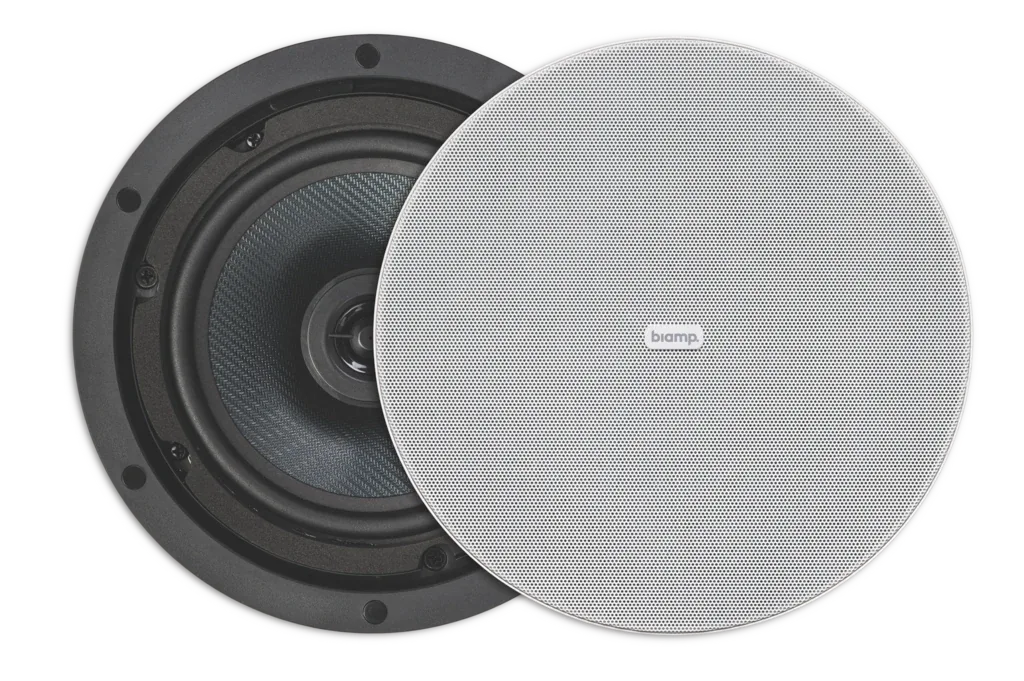

Biamp Commercial Loudspeakers CM20DT

The Biamp Commercial Loudspeakers CM20DT is a 2-way, 6.5-inch, thin edge, 70V/100V, white ceiling loudspeaker built for retail and hospitality installations. Drivers are LF 1 x 6.5 inch enforced polypropylene; HF 1 x 1 inch. Its operating range is 60 Hz - 20 kHz. Sensitivity measures (1W/1m) 86 dB.

Power handling is rated at 30W Cont.; 120W Peak. Nominal impedance is 16 ohms. Transformer tap settings are 70V: 20W, 10W, 5W, 2.5W; 100V: 20W, 10W, 5W. Mounting provision: 3 screws.

Loudspeaker Type	2-way, 6.5-inch, thin edge, 70V/100V, white ceiling loudspeaker
Drivers	LF 1 x 6.5 inch enforced polypropylene; HF 1 x 1 inch
Operating Range	60 Hz - 20 kHz
Sensitivity	(1W/1m) 86 dB
Power	30W Cont.; 120W Peak
Impedance	16 ohms
Dispersion	180 deg conical
Maximum Output	104 dB; 110 dB Peak
