Yamaha TF Series Digital Mixer

The Yamaha TF series is a digital mixer line built around TouchFlow Operation, a touchscreen workflow that puts channel EQ, dynamics, and routing under your finger instead of buried in menus, so an operator with no digital-console training can mix confidently within a set. Every model shares the same engine: 40-48 input channels, 3 main buses, 8 mono plus 6 stereo aux buses, 8 DCA groups, and 8 effects with 10 graphic EQs, so a show file built on a TF1 loads and behaves the same on a TF5.

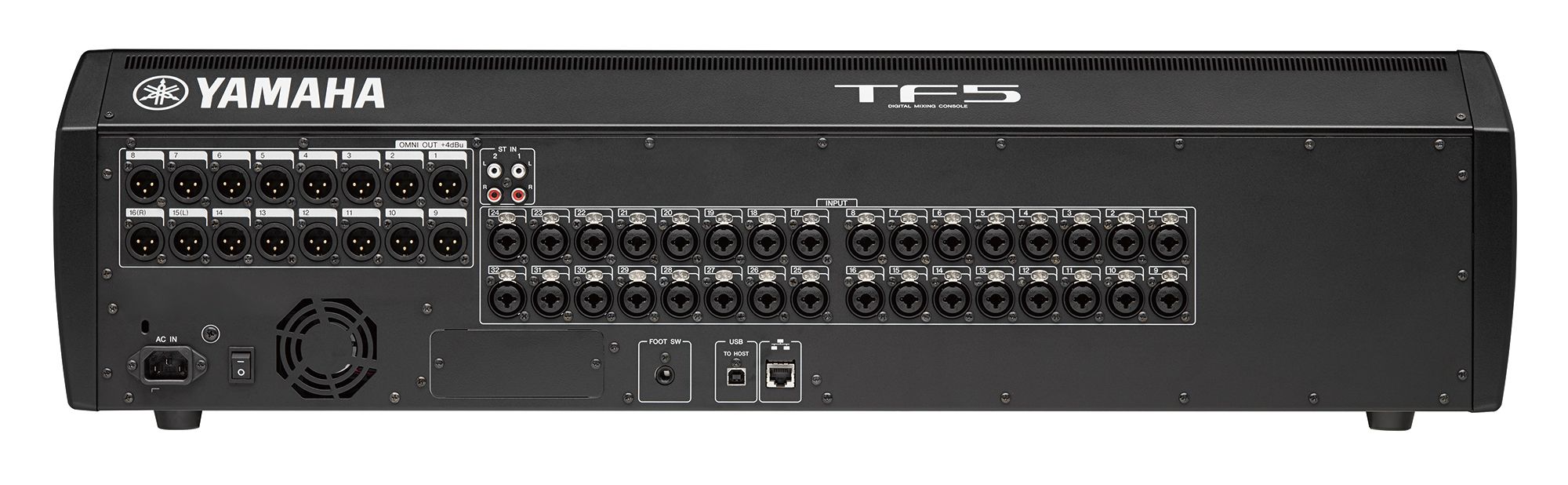

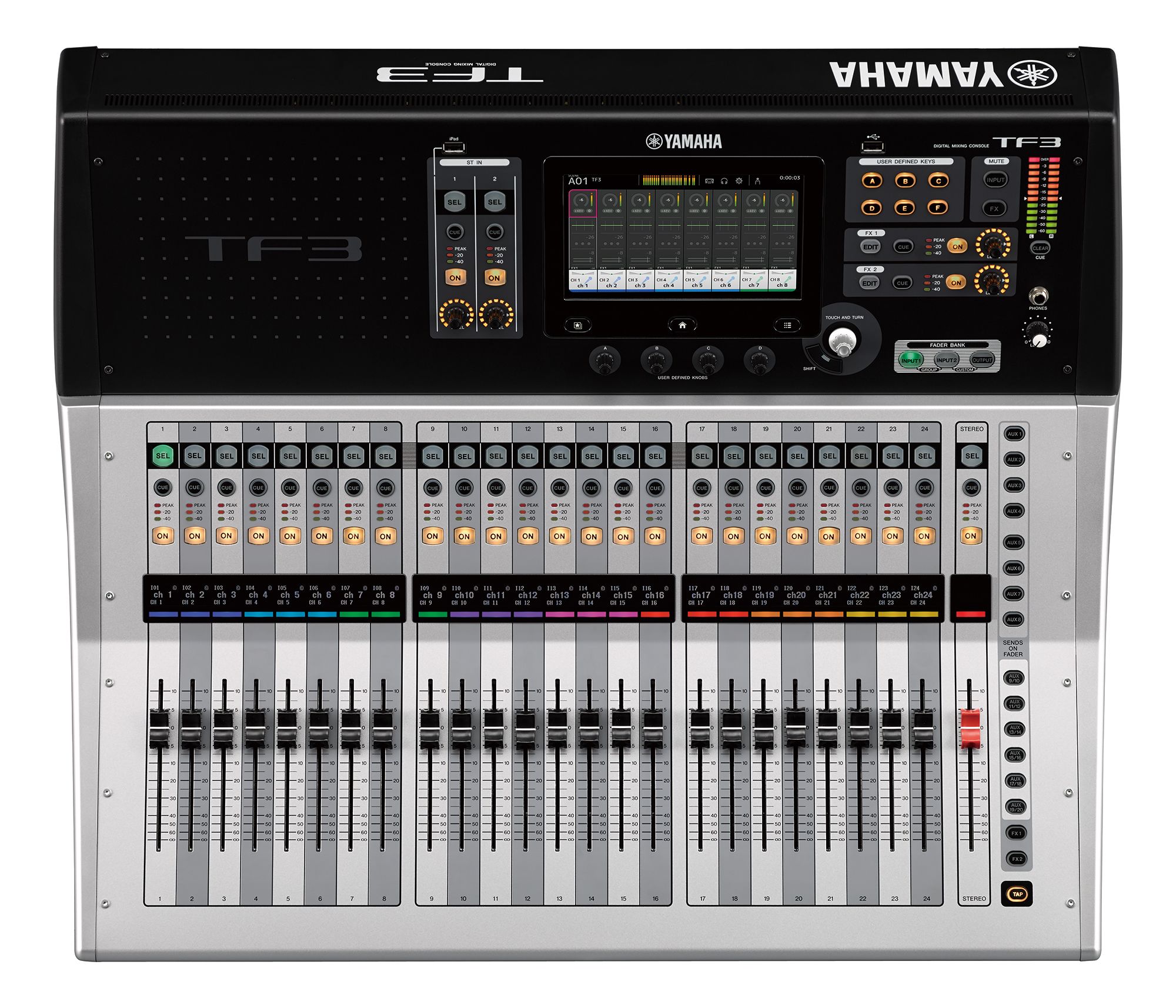

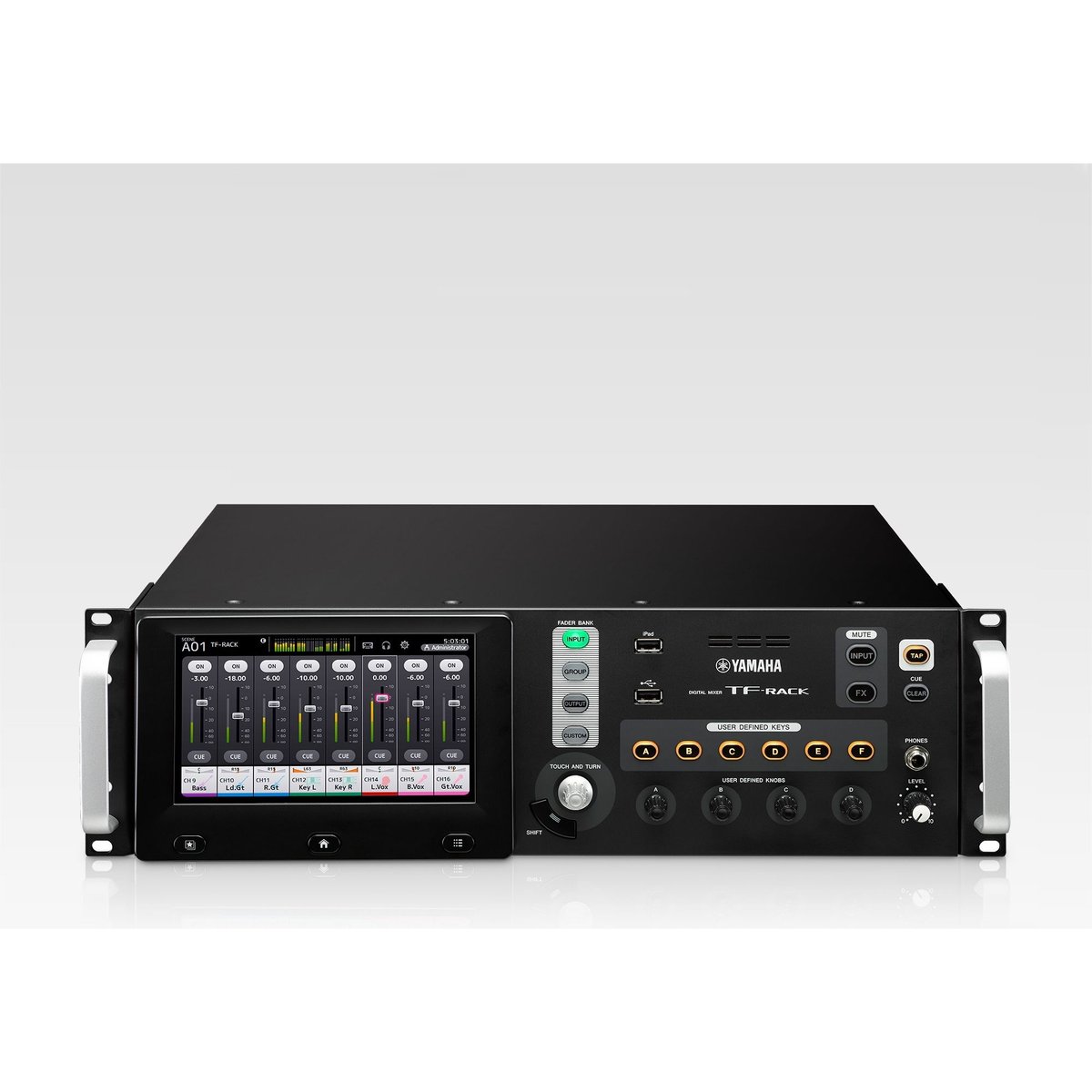

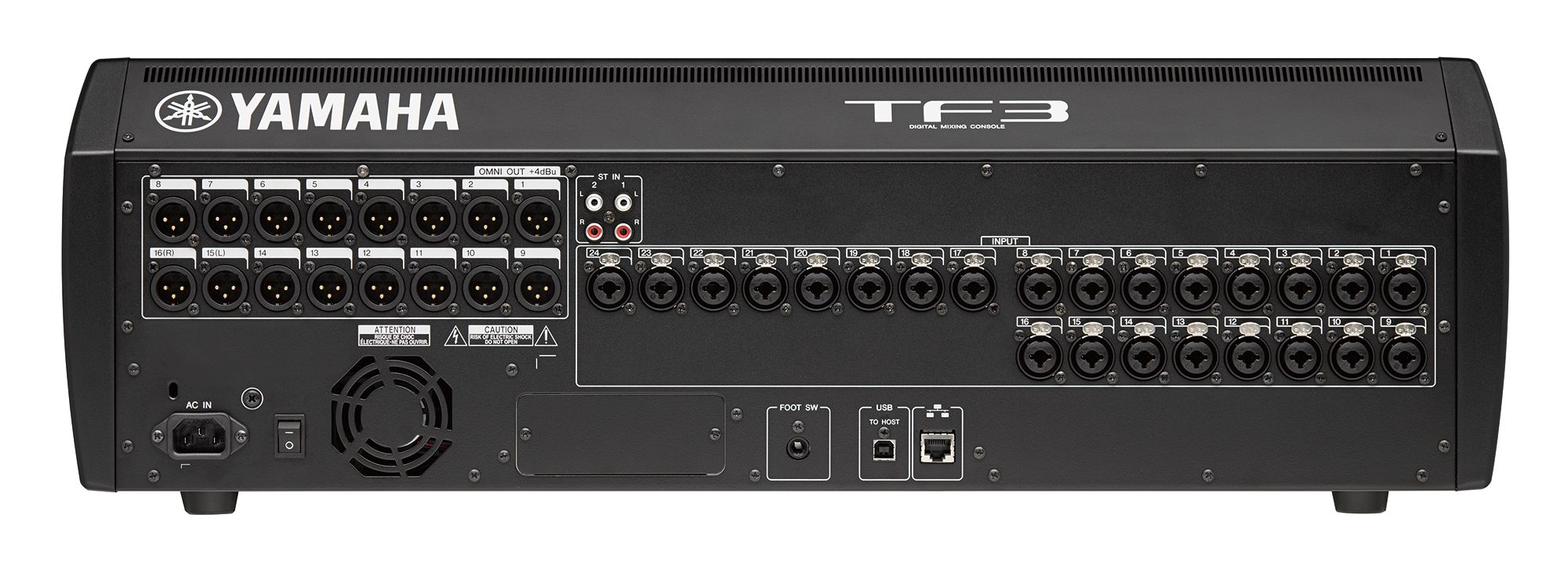

TF1, TF3, and TF5 differ in physical fader count and mic/line input count, 16, 24, and 32 respectively, to match the size of the console to the gig, while the TF-RACK strips away the surface entirely for a 2U rack-mount unit controlled from an iPad, ideal for a fixed install or a monitor position with no room for a control surface.
