Yamaha Dante Interface Cards and Format Converters - NY64-D, DANTE-MY16-AUD2, AIC128-D, RSio64-D, RMio64-D

This is Yamaha's family of format-conversion and expansion cards that bring Dante networking to gear that does not have it natively. The NY64-D drops straight into a TF-series console or TF-RACK's expansion slot for a full 64x64 Dante connection, and the DANTE-MY16-AUD2 does the same job in the Mini-YGDAI slot format used by older consoles and I/O racks that predate onboard Dante. The AIC128-D is a PCIe card for a studio or broadcast computer, recording up to 128 channels of Dante audio at 96 kHz directly into a DAW without an external interface.

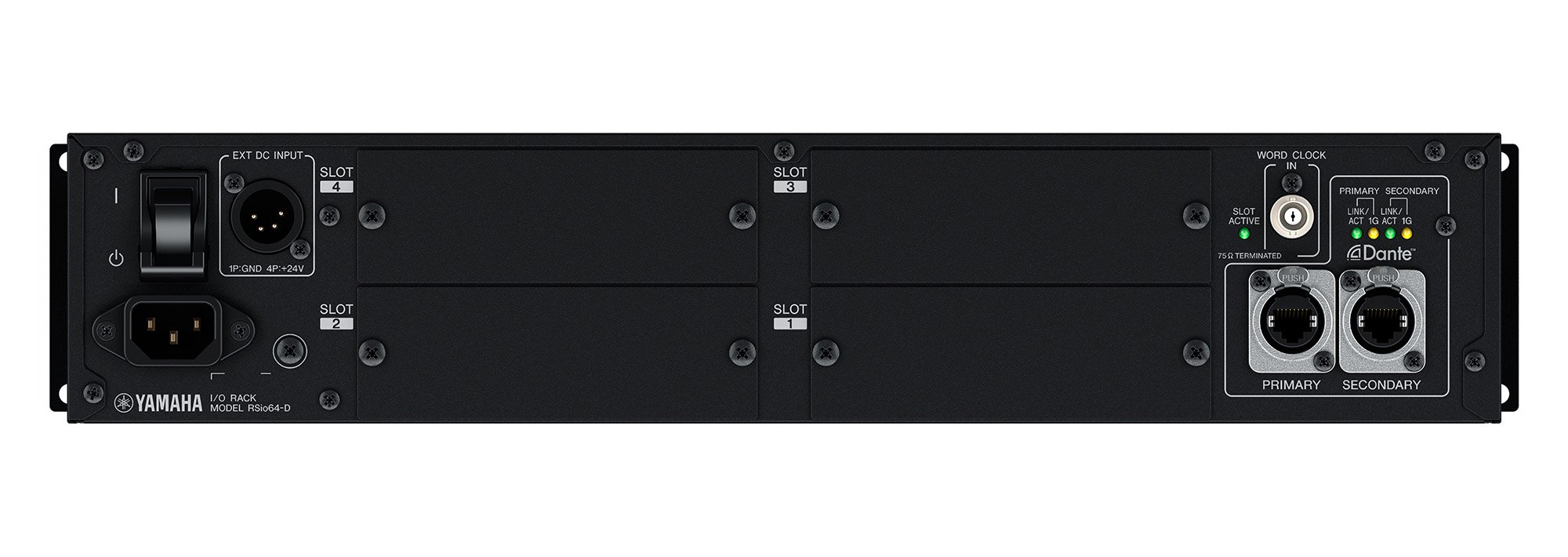

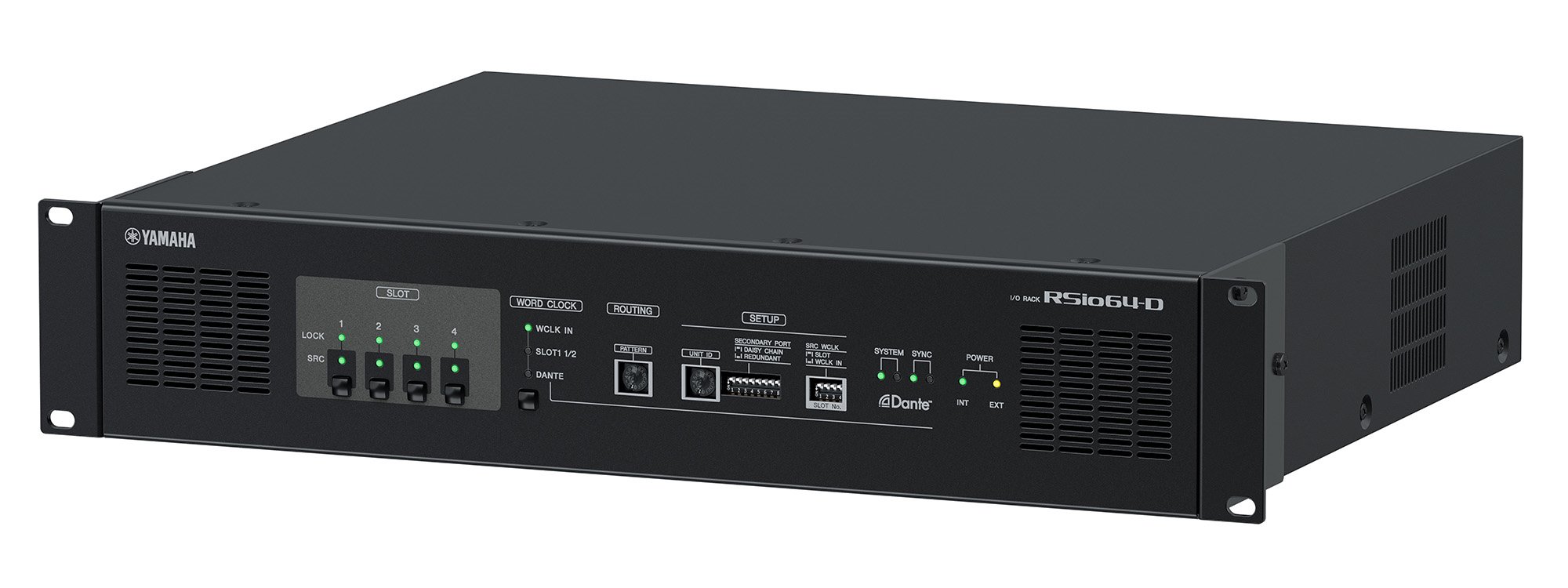

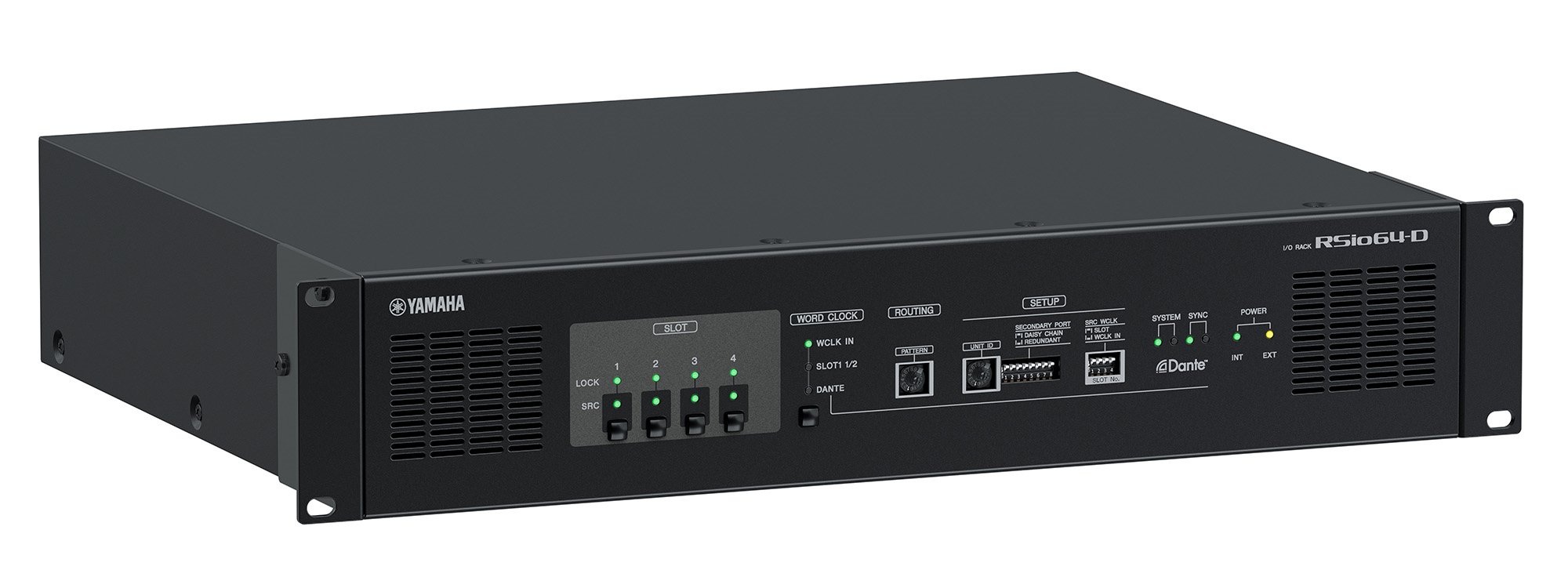

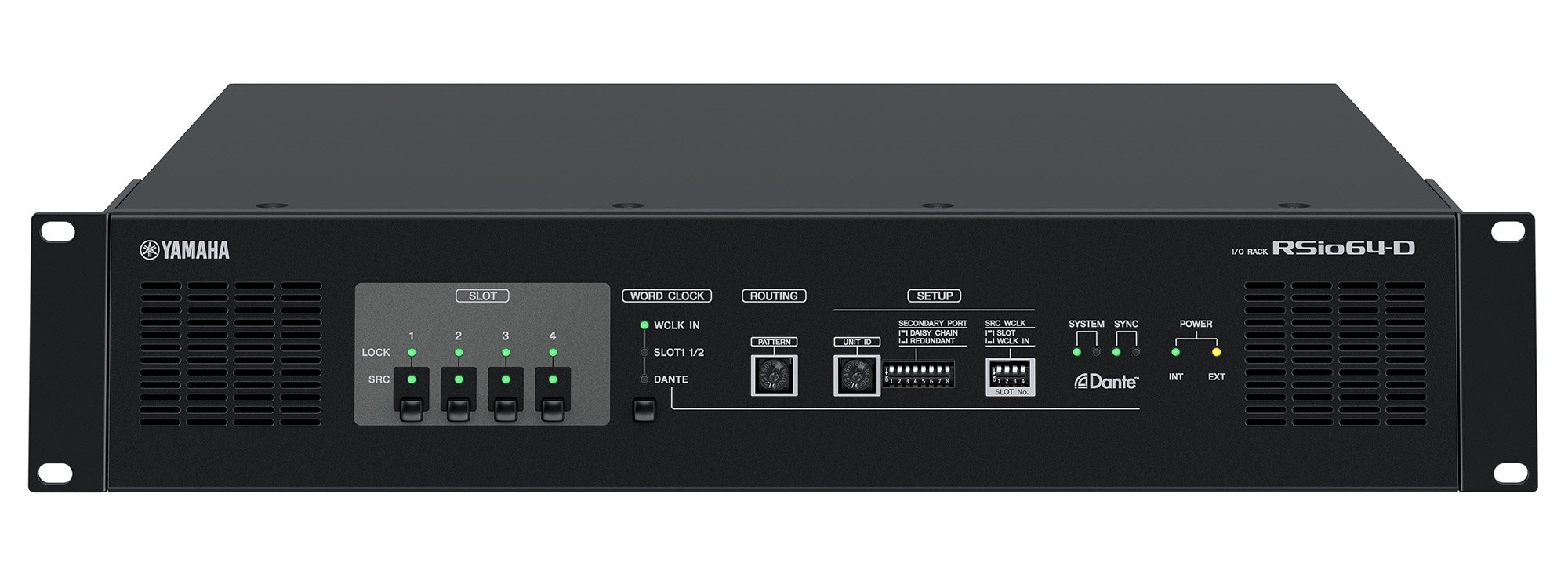

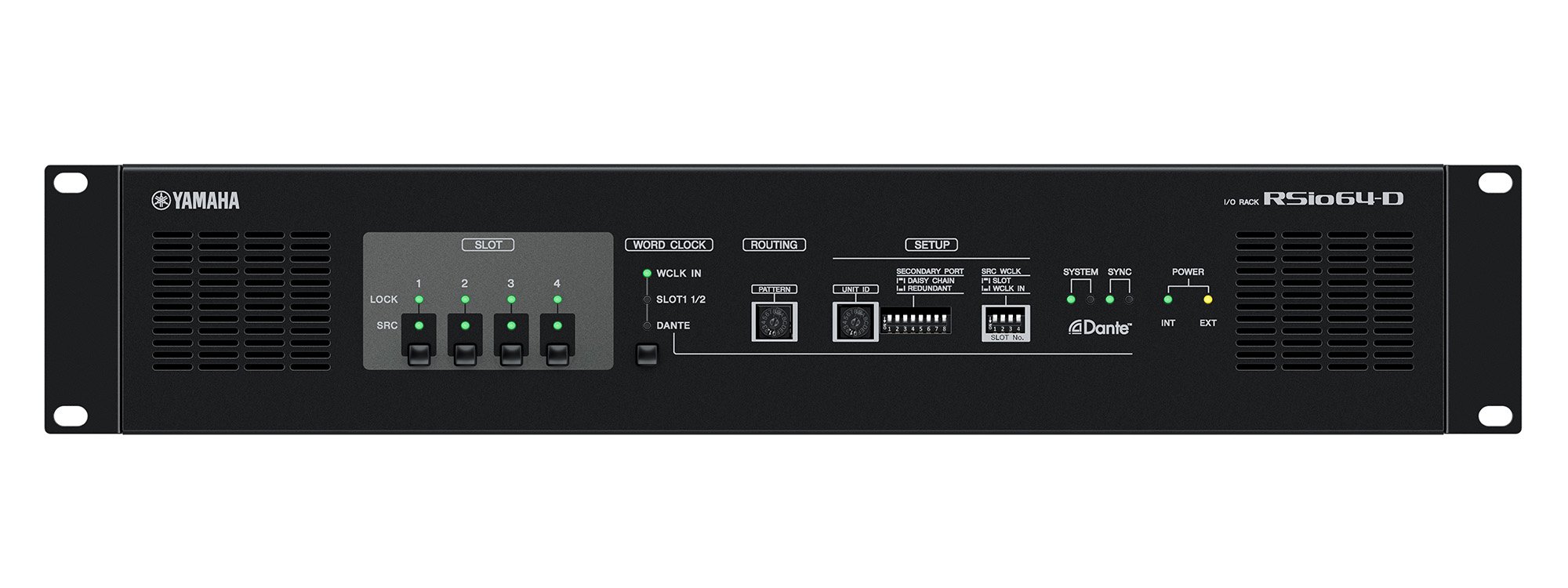

The RSio64-D and RMio64-D are 1U rack converters rather than plug-in cards: the RSio64-D holds four Mini-YGDAI slots so more than 30 legacy I/O and processing cards, including AES/EBU, ADAT, Lake processing, and Dan Dugan automixing, can be reached over a Dante network, while the RMio64-D converts between Dante and MADI with built-in sample-rate conversion, including a MADI split mode that feeds one MADI signal to Dante while passing a direct coaxial MADI output to another device.
