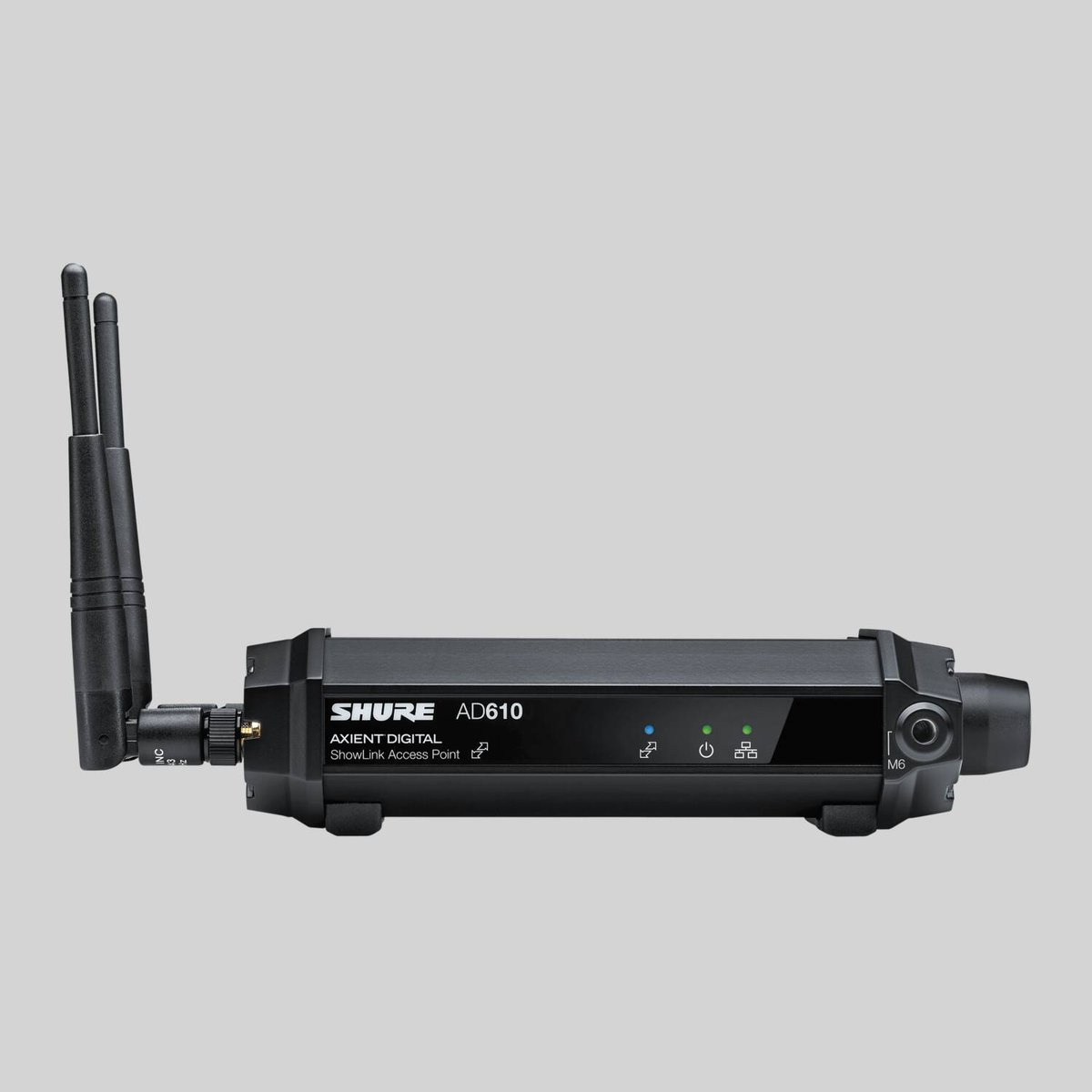

Shure AD610 Access Point
The AD610 is the diversity ShowLink access point that closes the loop between an Axient wireless rack and the transmitters out on stage. Over a 2.4 GHz IEEE 802.15.4 link it carries commands both ways, so an engineer can change a transmitter's frequency, gain, or lockout from the receiver or from Wireless Workbench and have it take effect on the performer's mic mid-show, with no interruption to the audio. It works with ShowLink-enabled ADX and AXT series transmitters.

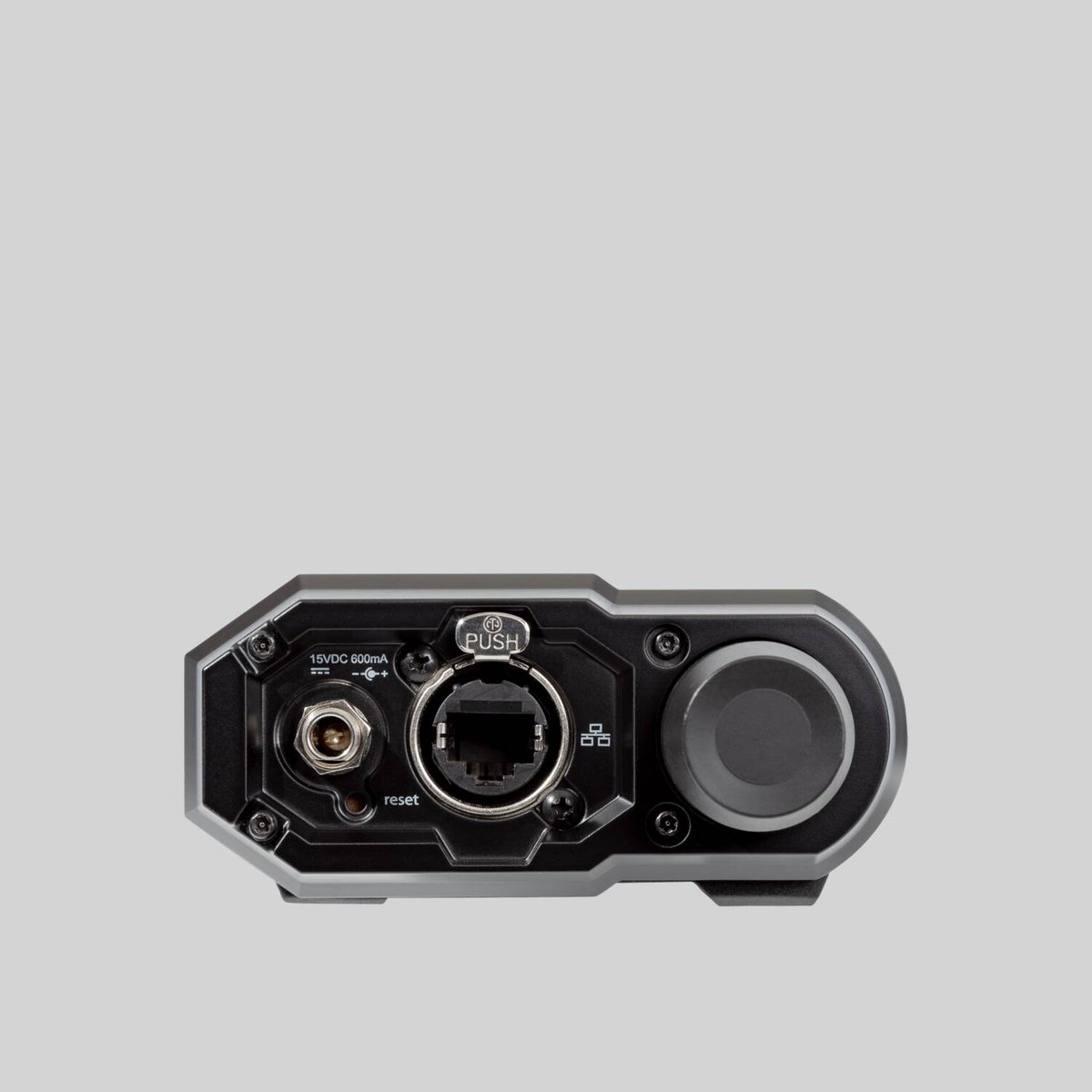

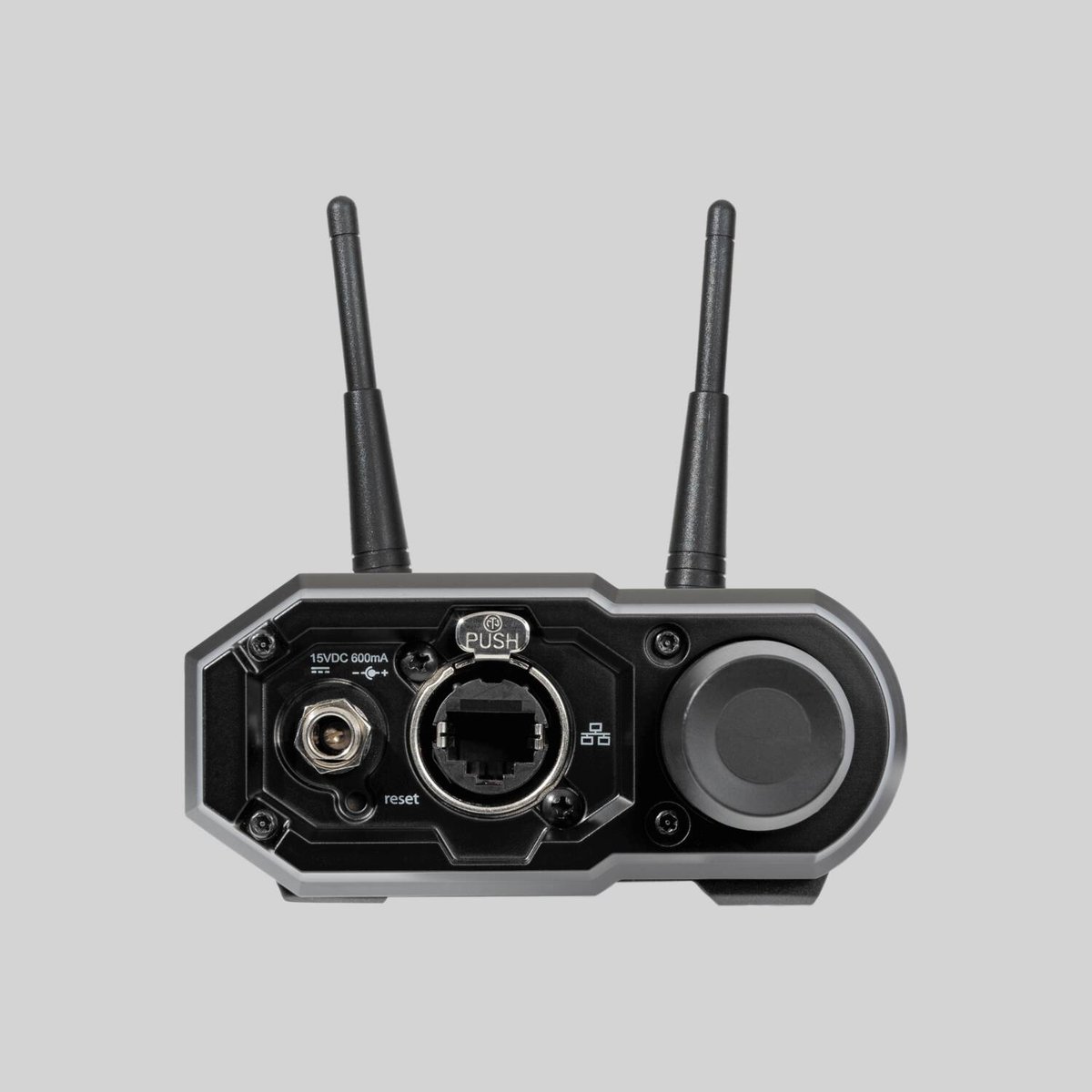

True diversity antenna inputs on two SMA connectors keep the control link solid as performers move, and a single unit manages up to 24 ShowLink transmitters. Add more access points to a network to widen coverage or raise the transmitter count. It powers from a PoE network port or an external 15V supply and mounts on standard 1/4 inch-20 and M6 x 1.0 thread points for rigging into a truss or stand.
- Capacity24 Axient ShowLink devices (AXT or ADX models)
- Storage Temperature Range-29°C (-20°F) to 74°C (165°F)
- Antenna Connection: Connectors2 SMA (Shell=Ground, Center=Signal)
- Antenna Connection: Impedance50 Ω
- Networking: Network InterfaceEthernet 10/100 Mbps
| Antenna Type | 2 Omnidirectional 2.4 GHz |
|---|---|
| Capacity | 24 Axient ShowLink devices (AXT or ADX models) |
| Mounting Type | WA371 Mic Clip or 1/4-20 thread mount |
| Operating Temperature Range | -18°C (0°F) to 60°C (140°F) |
| Storage Temperature Range | -29°C (-20°F) to 74°C (165°F) |
| Dimensions | 190 mm x 102 mm x 47 mm (7.48 in. x 4 in. x 1.85 in.) H x W x D, without antennas |
| Weight | 464 g (16.3 oz.), without antennas |
| Housing | Extruded Aluminum |
| Power Requirements | Power over Ethernet () Class 1: 36 to 57 V DC/V AC; External Power Supply (if PoE is unavailable): 15 V DC (600 mA), double insulated |
| Ingress Protection Rating | IPX3 |
| ShowLink: Network Type | IEEE 802.15.4 |
| ShowLink: Frequency Range | 2.40 to 2.4835 GHz (16 channels) |
| ShowLink: RF Output Power | 10 dBm EIRP / 20 dBm EIRP (dependent on applicable country regulations) |
| ShowLink: Working Range | Under typical conditions: 150 m (500 ft); Line of Sight, outdoors for a single system: 500 m (1600 ft) |
| Antenna Connection: Connectors | 2 SMA (Shell=Ground, Center=Signal) |
| Antenna Connection: Impedance | 50 Ω |
| Scanning Radio: Scanner RF Sensitivity | -106 dBm, typical (integrated antenna) |
| Networking: Network Interface | Ethernet 10/100 Mbps |
| Networking: Network Addressing Capability | DHCP or Manual IP address (configurable using Wireless Workbench) |

- Microphone stand clip (WA371)
- Shielded 25-foot Ethernet cable for ShowLink access point, RJ45-to-EtherCon connector (C825)
- Euro thread adapter for WA371 (31A1856)
