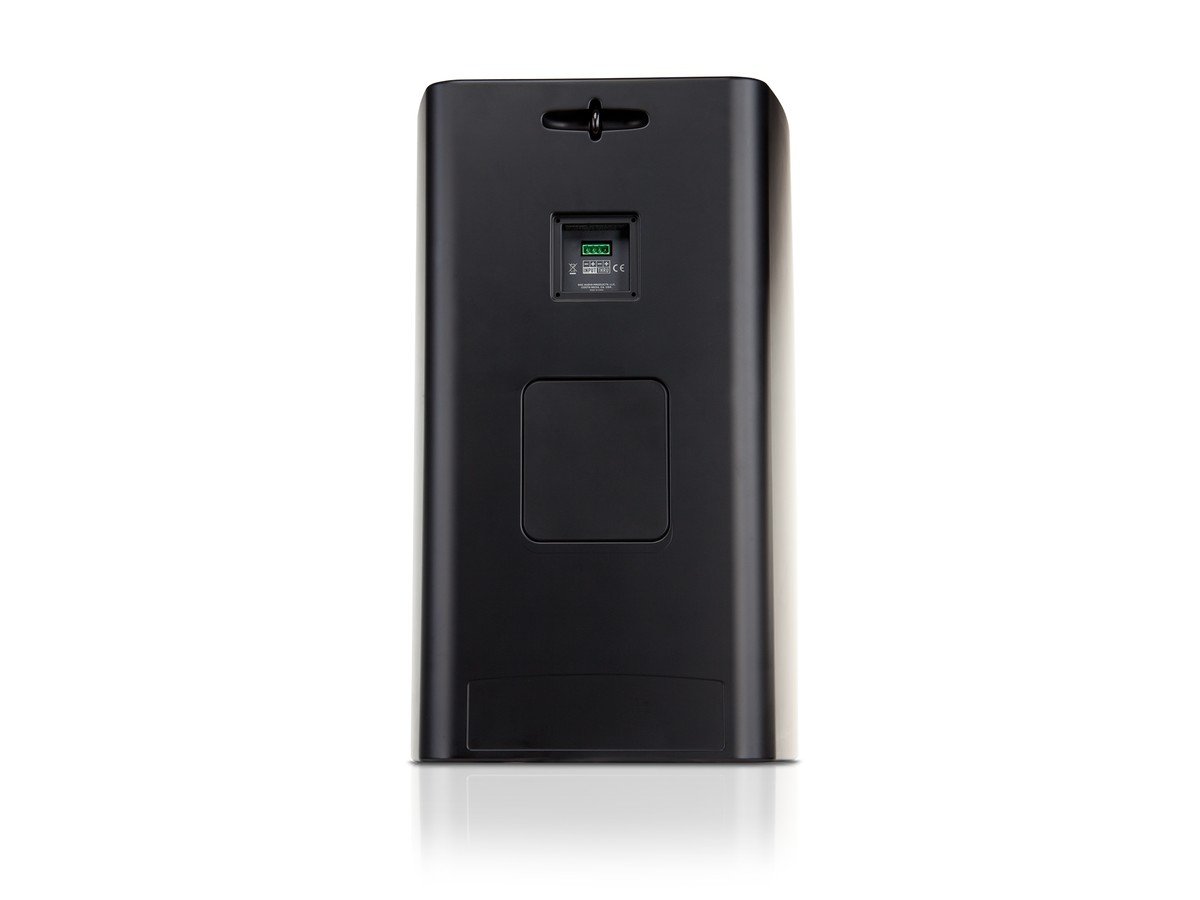

QSC AD-S112sw AcousticDesign 12 inch Surface-Mount Subwoofer
The AD-S112sw is the low end for AcousticDesign systems that cannot give up floor space. It mounts on a wall alongside the satellites rather than sitting in a corner, which matters in restaurants, fitness studios and retail where a conventional subwoofer cabinet would be in the way or would walk off.

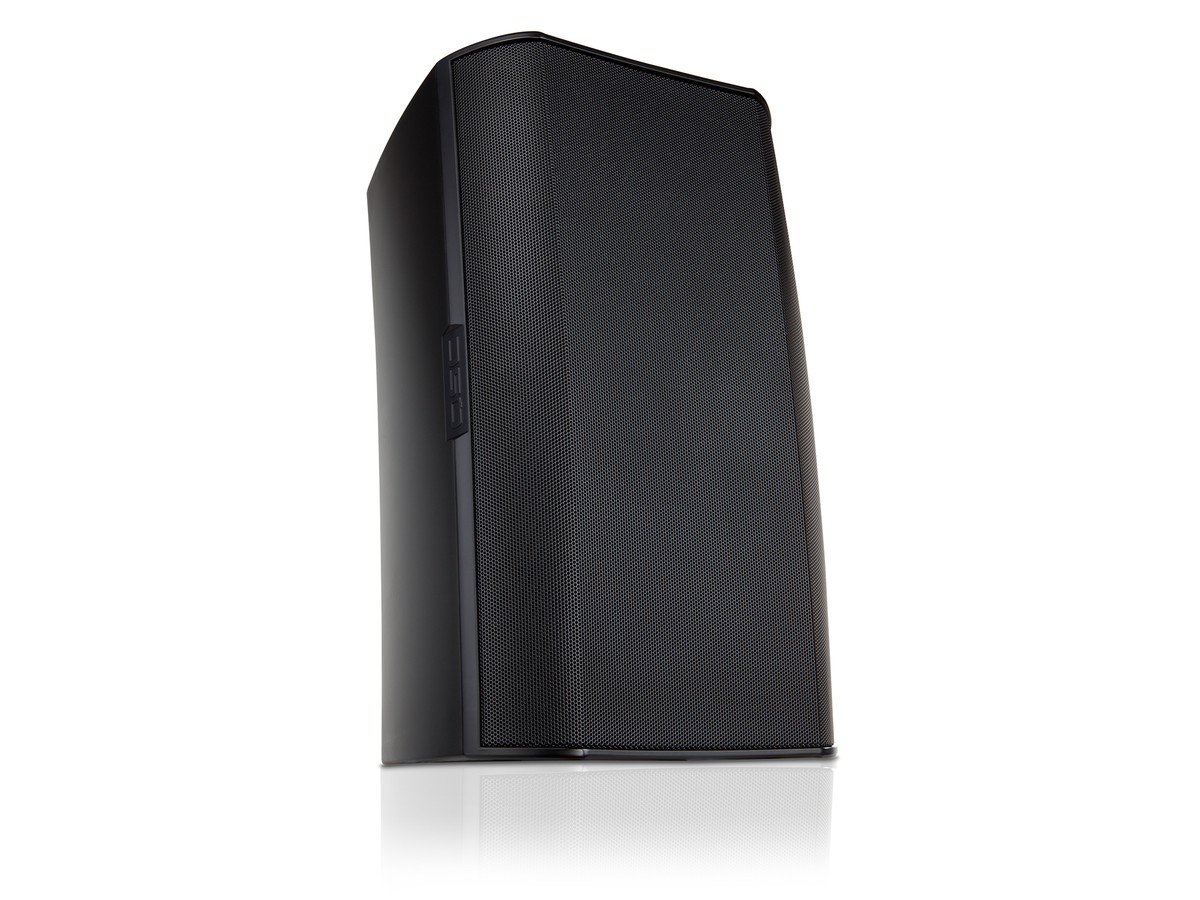

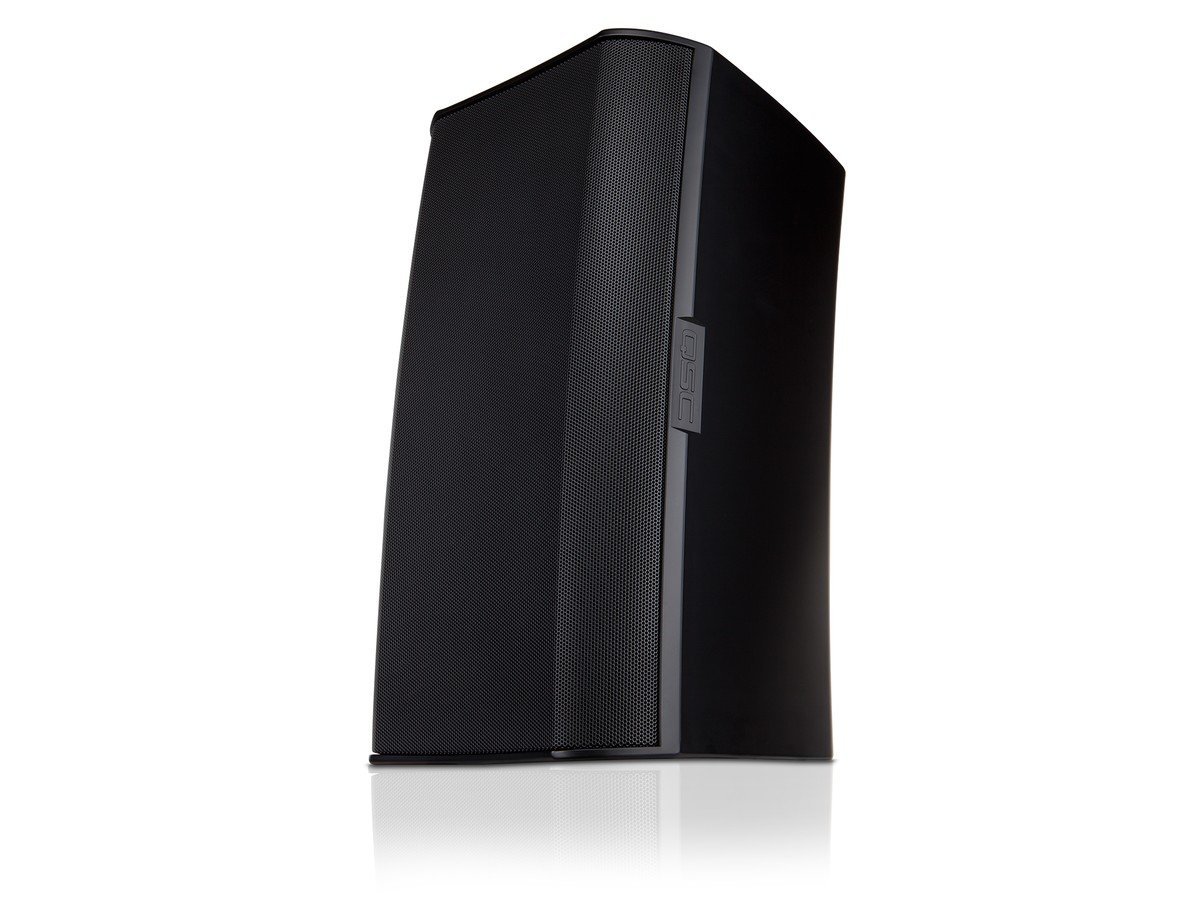

It shares the family's painted enclosure, powder-coated grille and X-Mount hardware, so it lines up visually with AD-S surface-mount boxes on the same wall. Black and white finishes are both available and both are paintable.
| Effective frequency range | 30 - 135 Hz |
|---|---|
| Rated noise power / voltage | 300 watts / 50 volts (rms) |
| Broadband Sensitivity | 90 dB SPL |
| Maximum continuous SPL | 115 dB |
| Rated impedance | 8 ohms |
| Transformer taps | n/a |

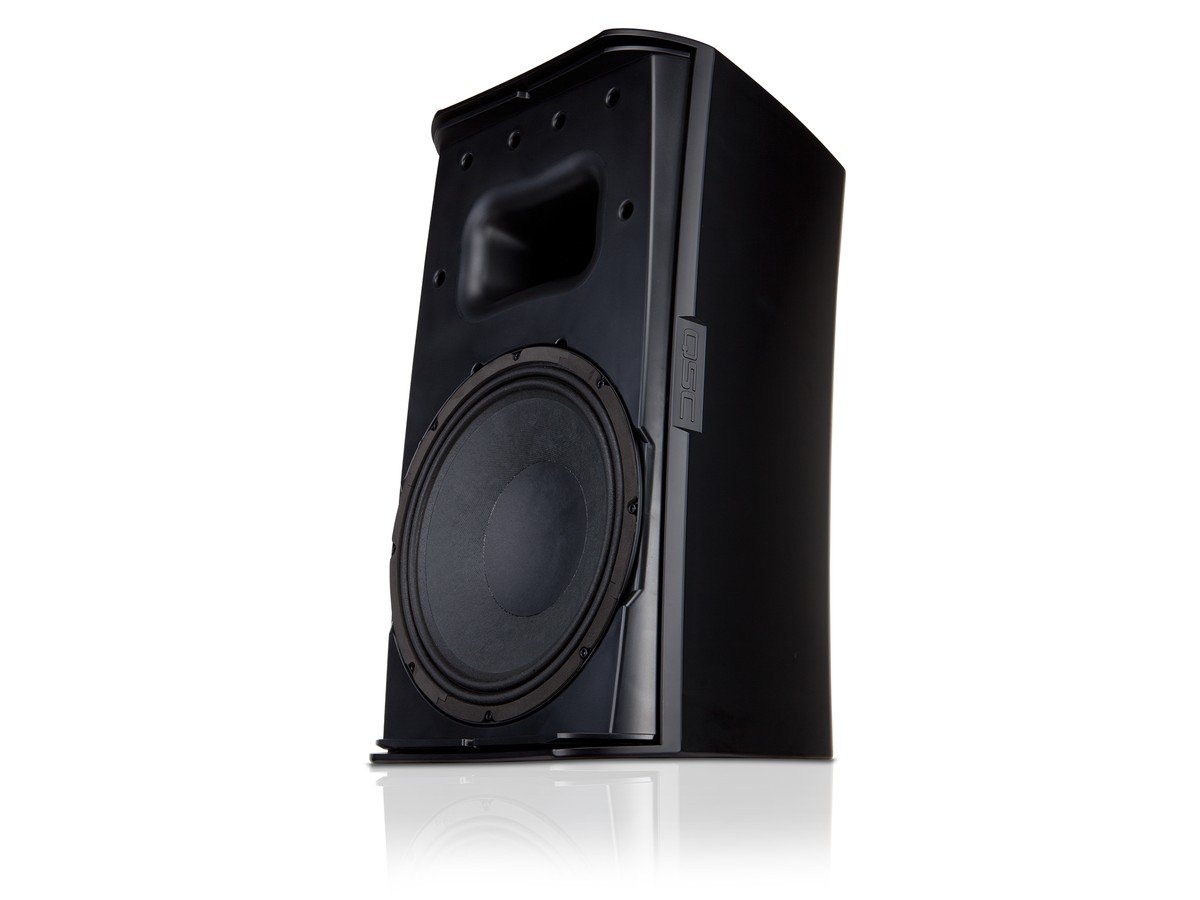

| LF transducer | 12-inch weather resistant paper cone woofer, 2.5-inch / 64mm voice coil |
| Ingress protection | IP-54 |
