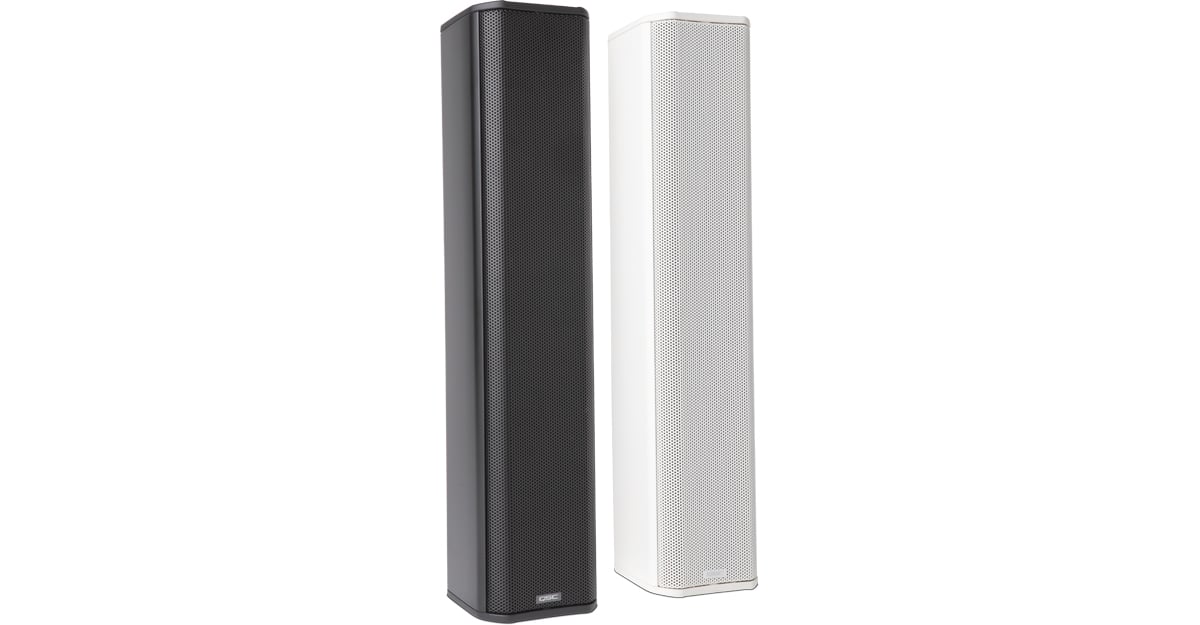

QSC AD-S802T AcousticDesign 8-Driver Column Array Loudspeaker

The AD-S802T steps up the AcousticDesign column array to eight 2.75 inch weather-treated paper cone drivers in a 23.4 inch enclosure, sized for houses of worship, gymnasiums, and larger retail floors that need more output than the compact AD-S402T without moving to a full 16-driver column. The deliberately unobtrusive industrial design keeps the enclosure narrow enough to mount flush against a wall or column.

Rated for 120 watts, it is finished with paintable, UV-stable enclosures and grilles in either black or white and shares mounting hardware with the rest of the AcousticDesign column family.

Power Capacity120 W
Frequency Range90 Hz - 17,000 Hz
Sensitivity87 dB
Maximum Peak SPL114 dB @ 1M
Drivers(8) 2.75 in weather-treated paper cone woofers
Impedance8 ohms
Dimensions23.4 x 5.2 x 5 in (595 x 131 x 126 mm)
Weight13.7 lb (6.2 kg)
