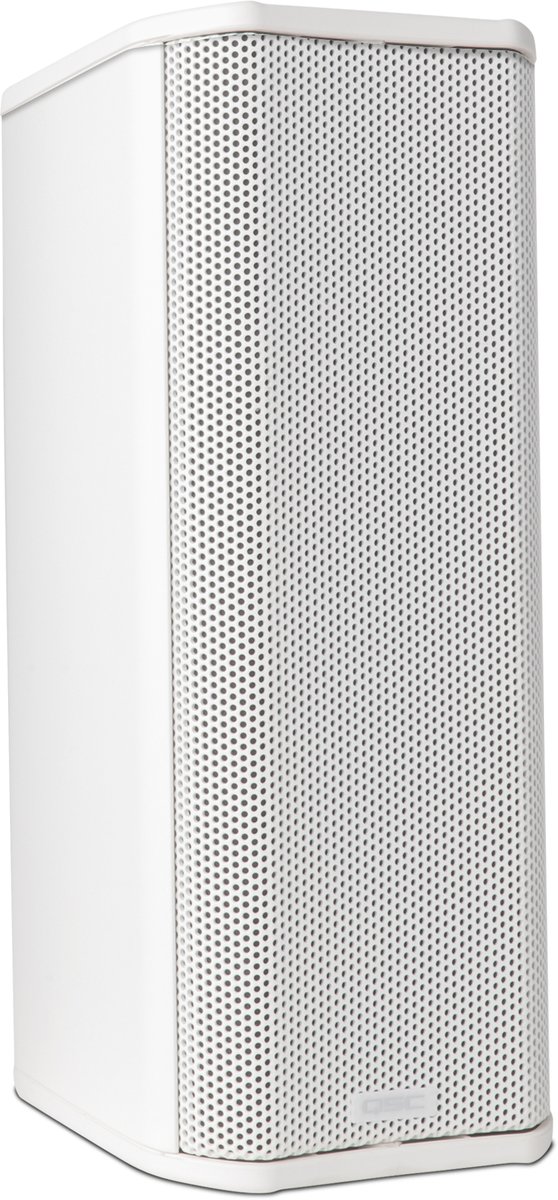

QSC AD-S402T AcousticDesign 4-Driver Column Array Loudspeaker
The AD-S402T is the compact end of QSC's AcousticDesign column array line, packing four 2.75 inch weather-treated paper cone drivers into a slim 12.9 inch enclosure for rooms that need even vertical coverage without a full-size column speaker. Its narrow profile mounts flush to a wall for background and foreground paging in retail, hospitality, and small house of worship spaces.
Rated for 60 watts on a 16 ohm line, it shares the AcousticDesign family's paintable, UV-stable enclosure and ships in black or white to match adjoining AD-S surface-mount speakers on the same job.
| Power Capacity | 60 W |
|---|---|
| Frequency Range | 110 Hz - 20,000 Hz |
| Sensitivity | 85 dB |
| Maximum Peak SPL | 105 dB @ 1M |
| Drivers | (4) 2.75 in weather-treated paper cone woofers |
| Impedance | 16 ohms |
| Dimensions | 12.89 x 5.17 x 4.97 in (327.5 x 131.3 x 126.1 mm) |
| Weight | 7.5 lb (3.4 kg) |
