MuxLab 500536 USB-C 3.2 Gen1 Dual HDMI Extender Kit, 100m

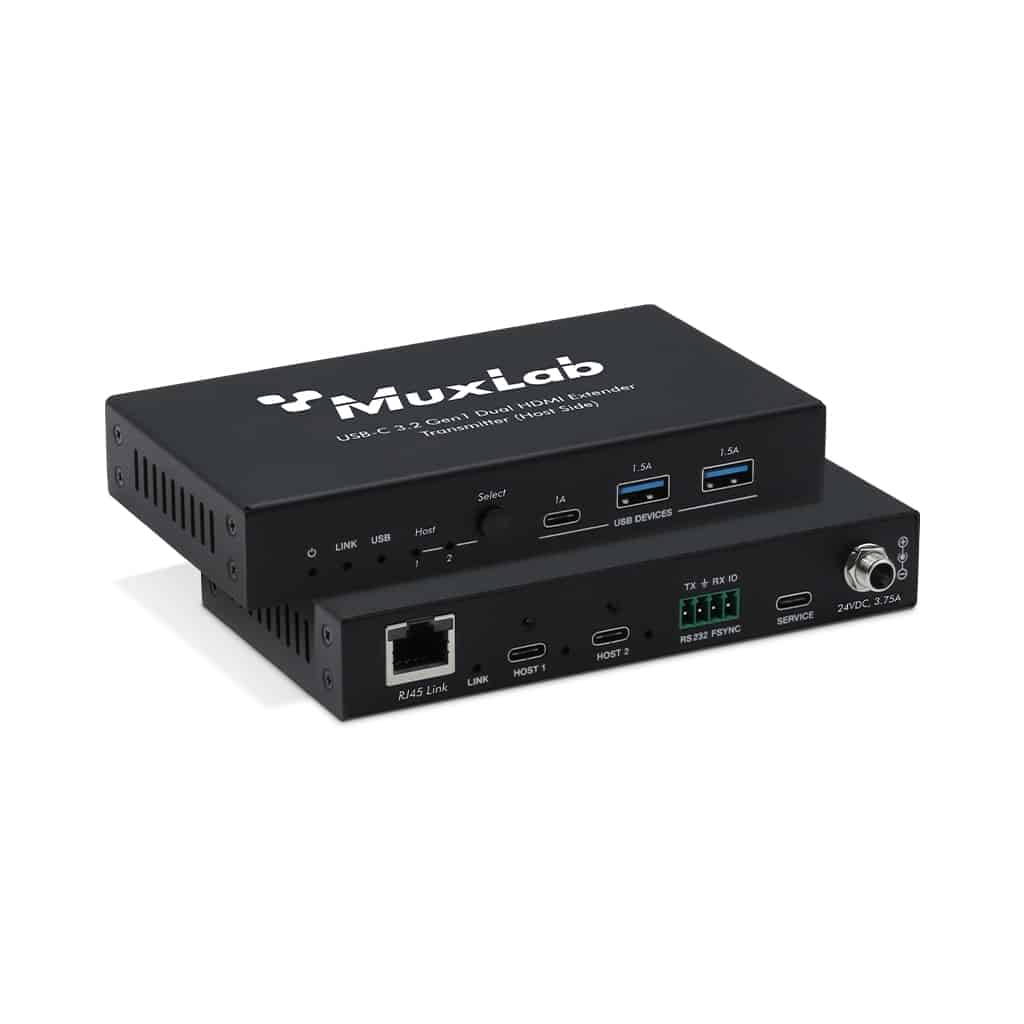

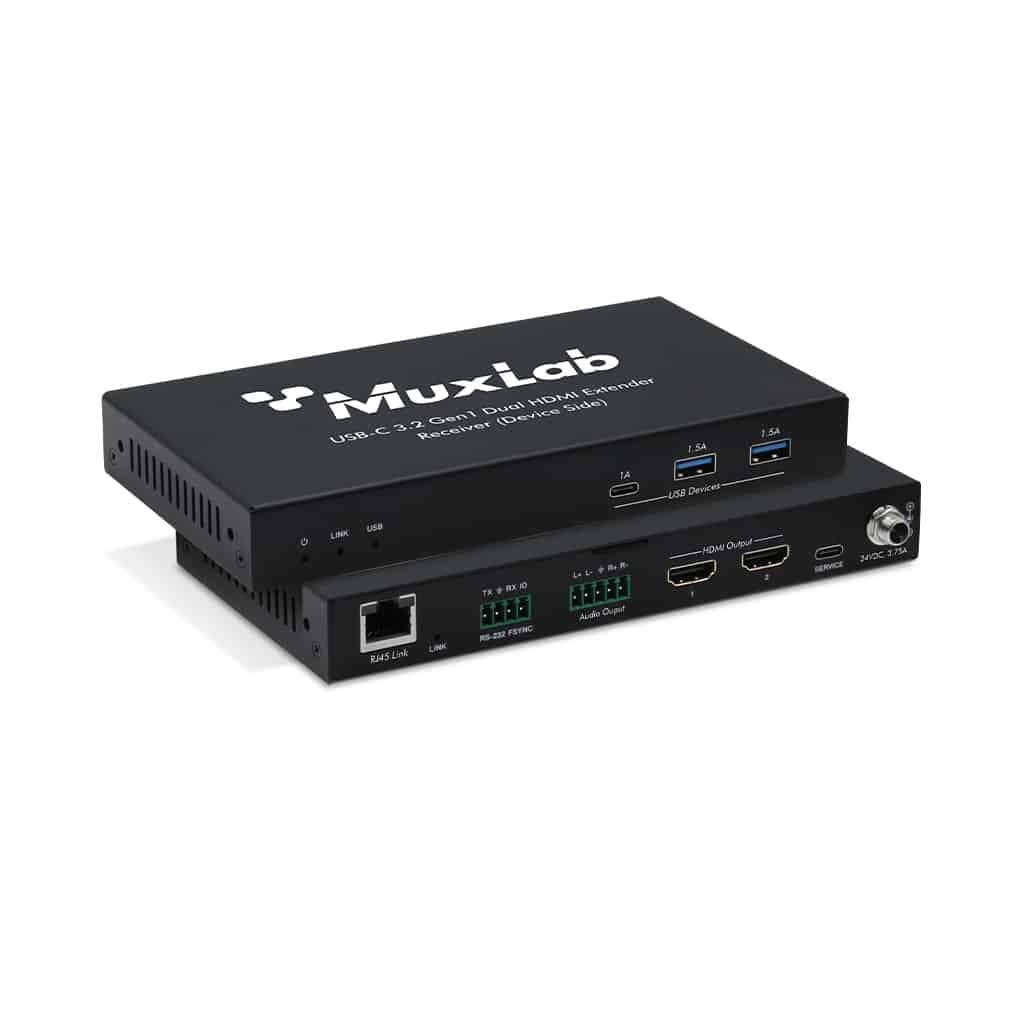

The 500536 kit extends USB 3.2 Gen1 at up to 5Gbps across 328ft (100m) of Cat6a, and carries video too: built-in DisplayLink technology drives dual HDMI outputs at the receiver at up to 4K at 60Hz. The transmitter offers two selectable USB-C host ports plus three local ports, FSYNC GPIO, and RS232 pass-through.

Two selectable hosts means two laptops can share one remote workstation without re-plugging. Because video rides the USB link, one cable covers displays, keyboard, mouse, camera, and audio, which is the practical difference from a separate KVM plus extender.

Color	Black
Input	2 x USB HOST [USB-C, 24pin Female]
Output	1 x USB-C DEVICE [USB Type C, 24-pin female] 2 x USB-A DEVICE [USB Type A, 9-pin female] 1 x HDBT-USB3 [RJ45 connector, 24V PoC]
Control	1 x RS-232 [3pin-3.5mm Phoenix Connector] 1 x FSYNC [1pin-3.5mm Phoenix Connector] 1 x SERVICE [USB-C,Update Port] Transmitter Receiver Metal EnclosureHousing
Dimensions	Transmitter: 140mm [W] x 75mm [D] x 23mm [H]
Transmission	Rate USB 3.2 Gen1 10G Technical Specification Up to 5Gbps Connection Mechanical 100m/328ft over CAT6a (F/FTP) cableTransmission Distance
Receiver	180mm [W] x 95mm [D] x 23mm [H]
