MuxLab 500734 6G-SDI Extender Over Fiber Optic with Return Channel

The 500734 extends SDI at up to 4K at 30Hz over fibre, reaching 400m on OM4 multimode with the base model and 10km, 40km, or 80km with the SM10, SM40, and SM80 versions. It transmits up to 9 Gbps and supports mixed signals, such as one 6G-SDI plus one 3G-SDI feed at the same time.

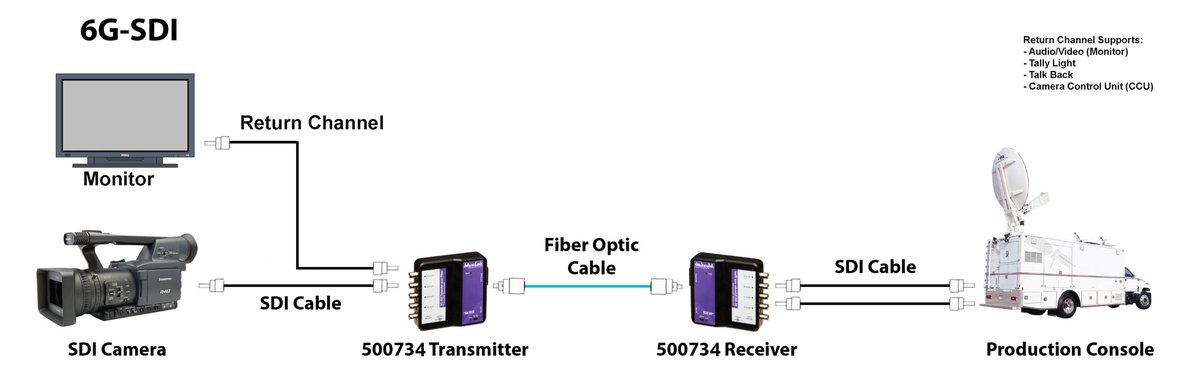

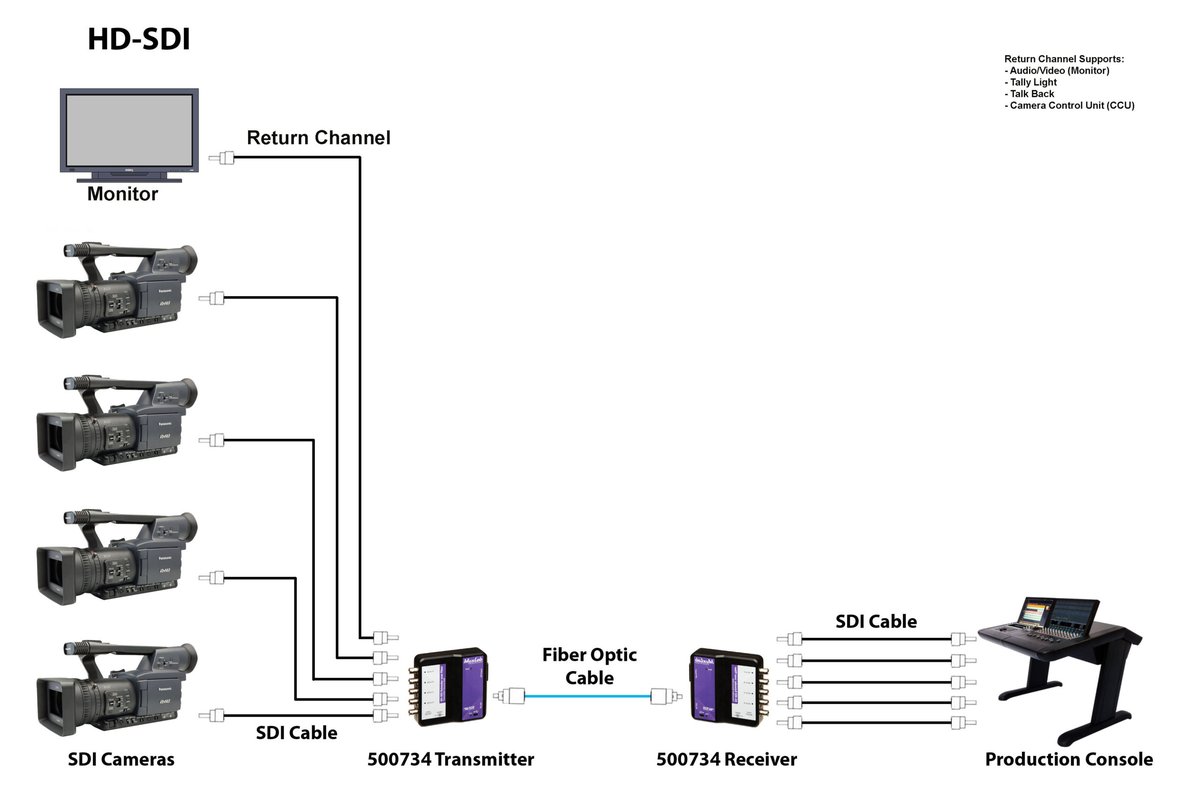

The return channel is the point of this model: monitoring, talkback, and control travel back from the far end on the same fibre. That makes it a working remote camera position rather than a one-way feed.

Standard	6G-SDI, 3G-SDI, HD-SDI digital signal transmission Serial Interface RS232 Serial transmission
Signal	Distance Multi-mode OM3 fiber - 985ft (300m), OM4 fiber length - 1300ft (400m) Single-mode fiber - 33,000ft (10km), 132,000ft (40km) and 264,000ft (80km) depending on model

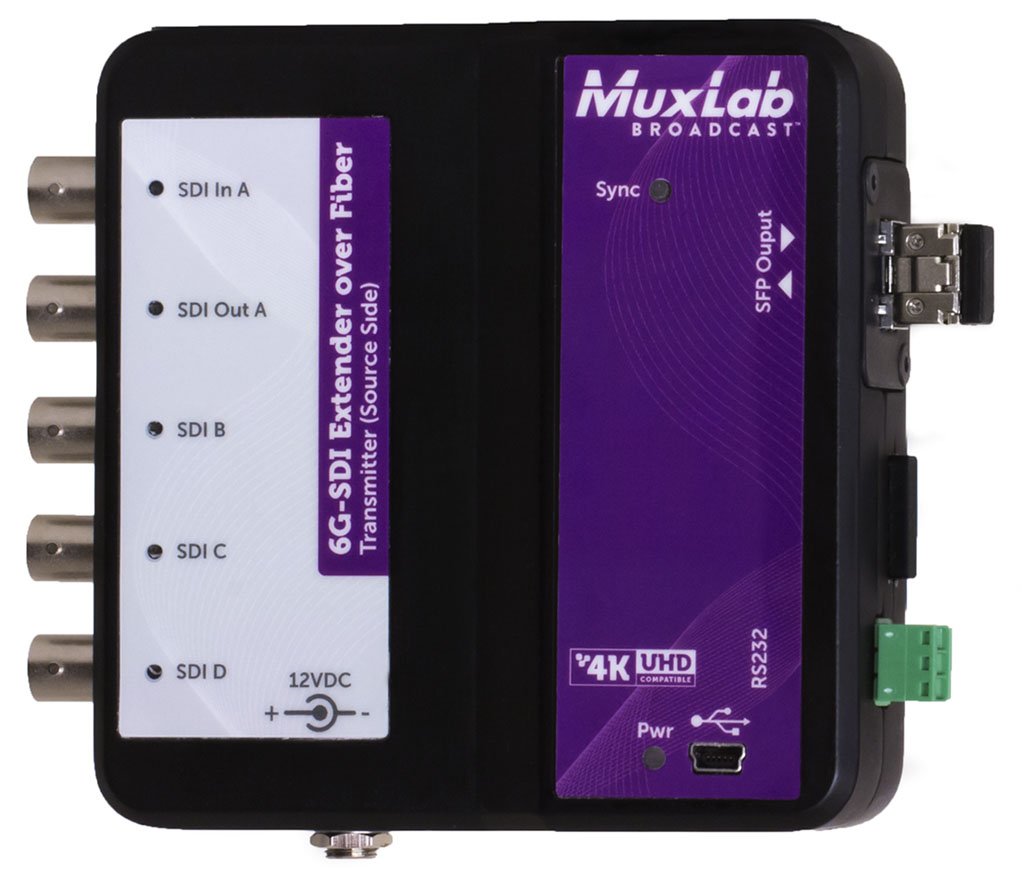

Connectors	(SDI in) 1 BNC connectors for SDI input (0.8V pp, 75 ohm)
Power	2x 12V DC external power supplies with US, UK and Euro blades
Enclosure	Aluminum casing, 4.3" x 4.3" x 1" (10.9 x 10.9 x 2.54cm), for TX and RX (black in color)
Temperature	Operating: 0 deg to 40 deg C Storage: -20 deg to 85 deg C
Humidity	Up to 95% non-condensing
Compliance	FCC, CE, RoHS
