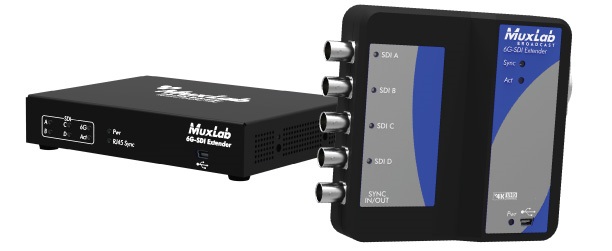

MuxLab 500730 6G-SDI Extender Over UTP

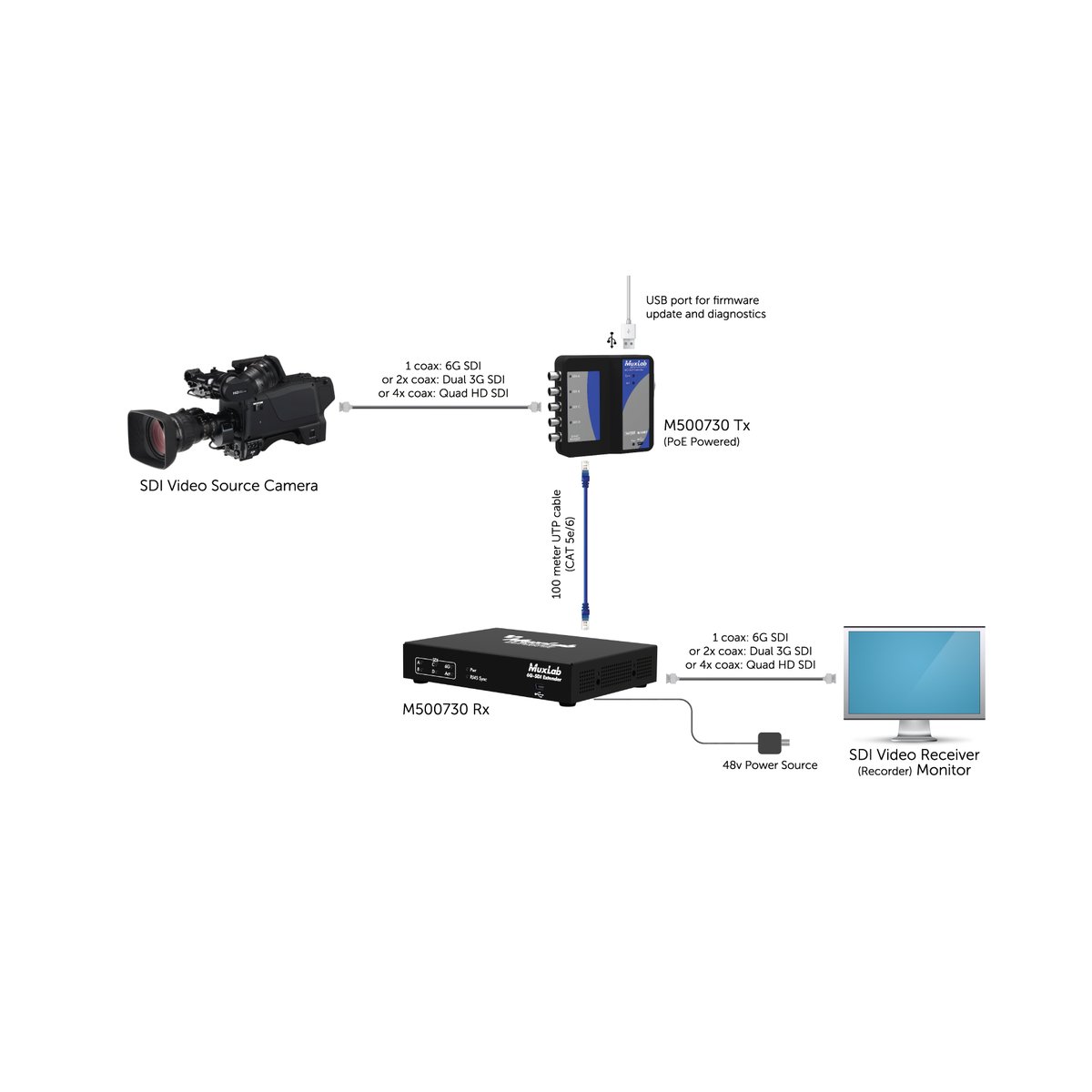

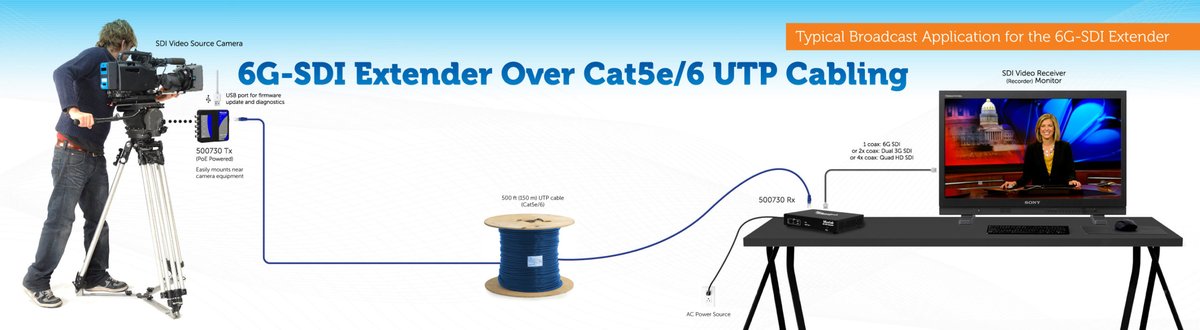

The 500730 extends SDI cameras and other SDI sources up to 4K resolution across 330ft (100m) of standard Cat5e/6 UTP at full resolution. Channel configuration is flexible: one 6G-SDI source, two 3G-SDI sources, or four HD-SDI sources on the same link.

Supported modes are SMPTE 292M, 296M, 372M, 424M, and 425M, up to 4K at 30Hz. PoE lets the transmitter be powered from the receiver end, which removes the need for mains at the camera position.

Standard	6G-SDI digital signal transmission
Connectors	(SDI in) 4x BNC connectors for SDI input ( 0.8V pp, 75 ohm )
Power	48V external power supply with US, UK and Euro blades
Temperature	Operating: 0 deg to 40 deg C Storage: -20 deg to 85 deg C
Humidity	Up to 95% non-condensing
Compliance	FCC, CE, RoHS
Dimensions	4.33 H x 7.09 W x 12.6 L in (32.00 x 18.00 x 11.00 cm)
Weight	1.000 kg
