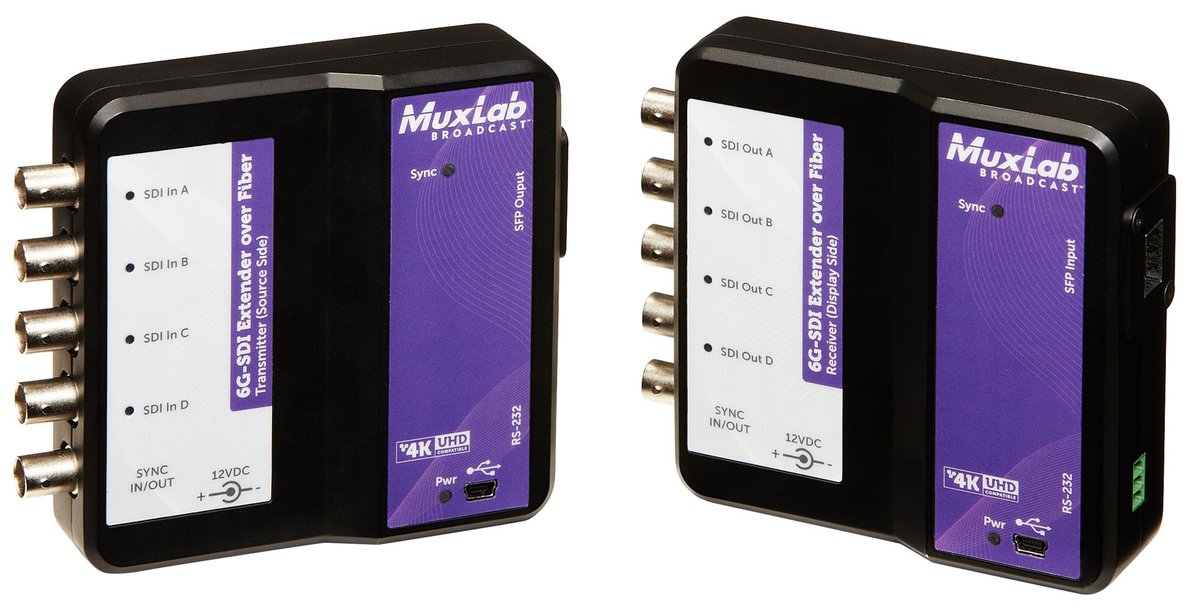

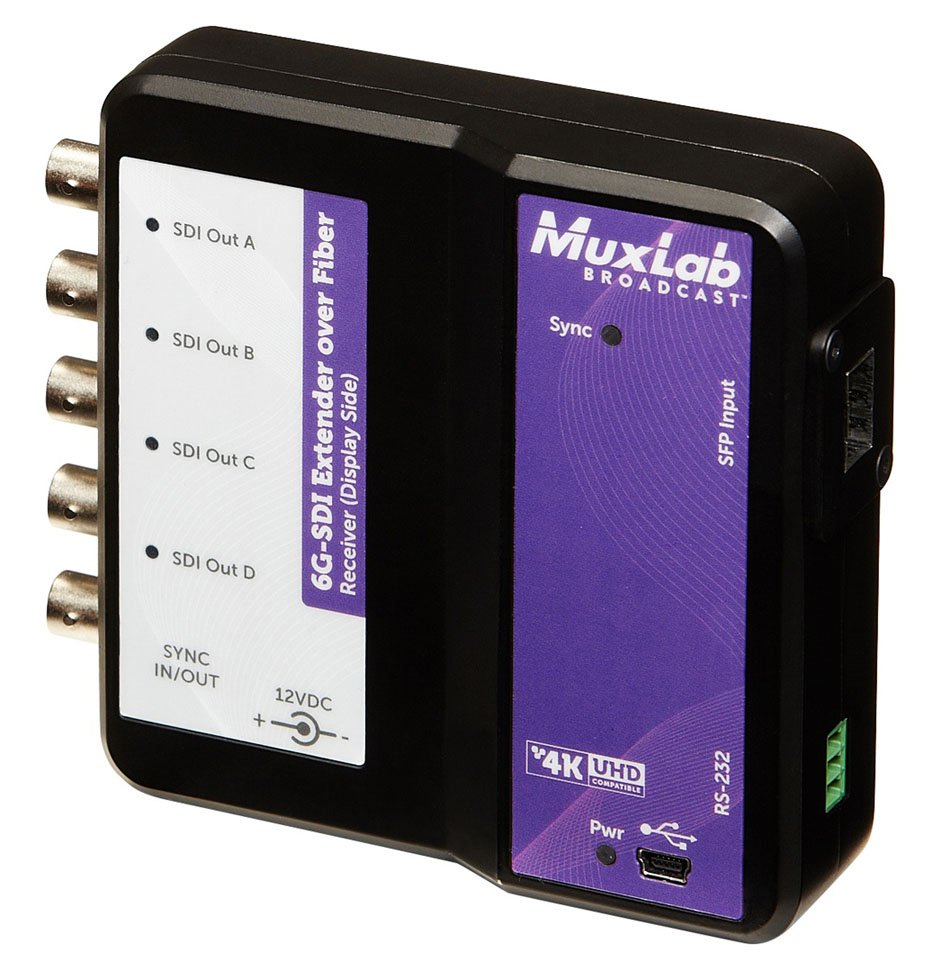

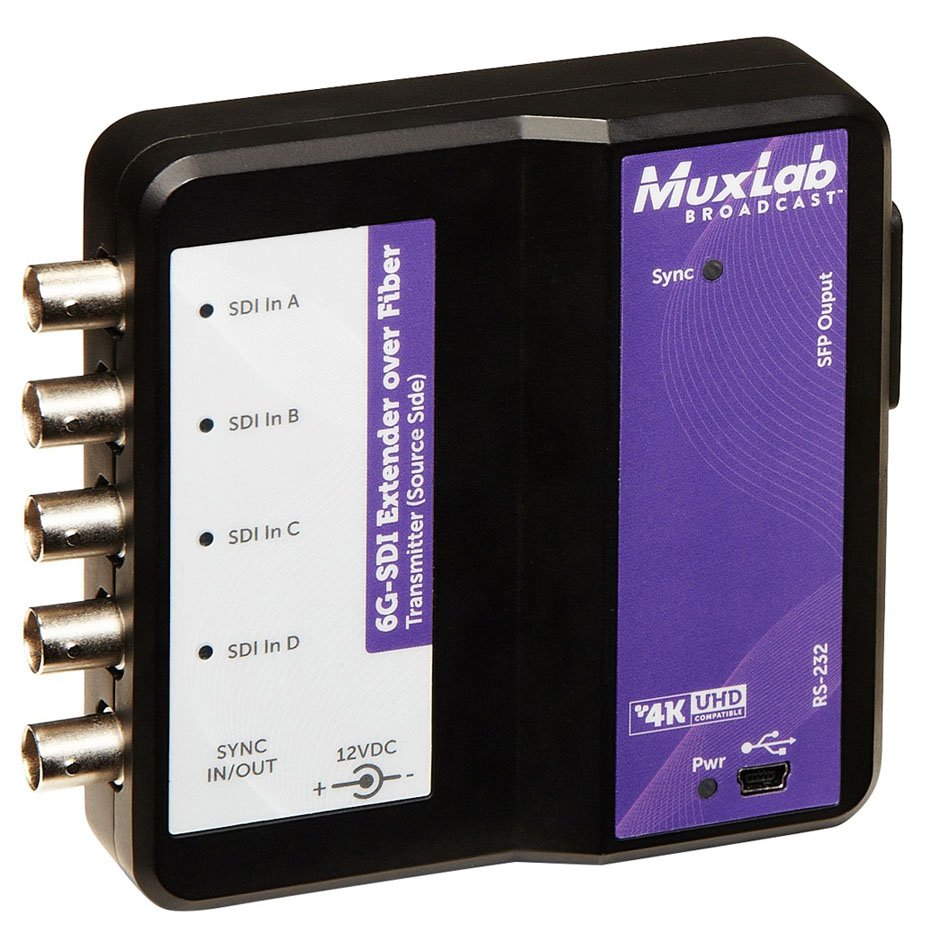

MuxLab 500732 6G-SDI Extender over Fiber Optic

The 500732 extends SDI cameras and sources at up to 4K resolution over fibre: 985ft (300m) on OM3 or 1300ft (400m) on OM4 with the base model, and 10km, 40km, or 80km with the SM10, SM40, and SM80 versions. Supported modes are SMPTE 292M, 296M, 372M, 424M, and 425M.

All 6G channel configurations are supported (1, 2, or 4 BNC), and the link recognises and configures itself automatically rather than needing manual mode selection. A USB interface handles field firmware upgrades and diagnostics.

Standard	6G-SDI, 3G-SDI, HD-SDI digital signal transmission Serial Interface RS232 Serial transmission
Signal	Distance OM3 fiber length - 985ft (300m), OM4 fiber length - 1300ft (400m) Single-mode fiber length - 33,000ft (10km), 132,000ft (40km) and 264,000ft (80km) depending on model
Color	Black
Connectors	(SDI in) 4 BNC connectors for SDI input (0.8V pp, 75 ohm)
Power	2x 12V DC external power supplies with US, UK and Euro blades
Enclosure	Aluminum casing, approx. 4.3" x 4.3" x 1" (TX and RX)
Temperature	Operating: 0 deg to 40 deg C Storage: -20 deg to 85 deg C
Humidity	Up to 95% non-condensing
