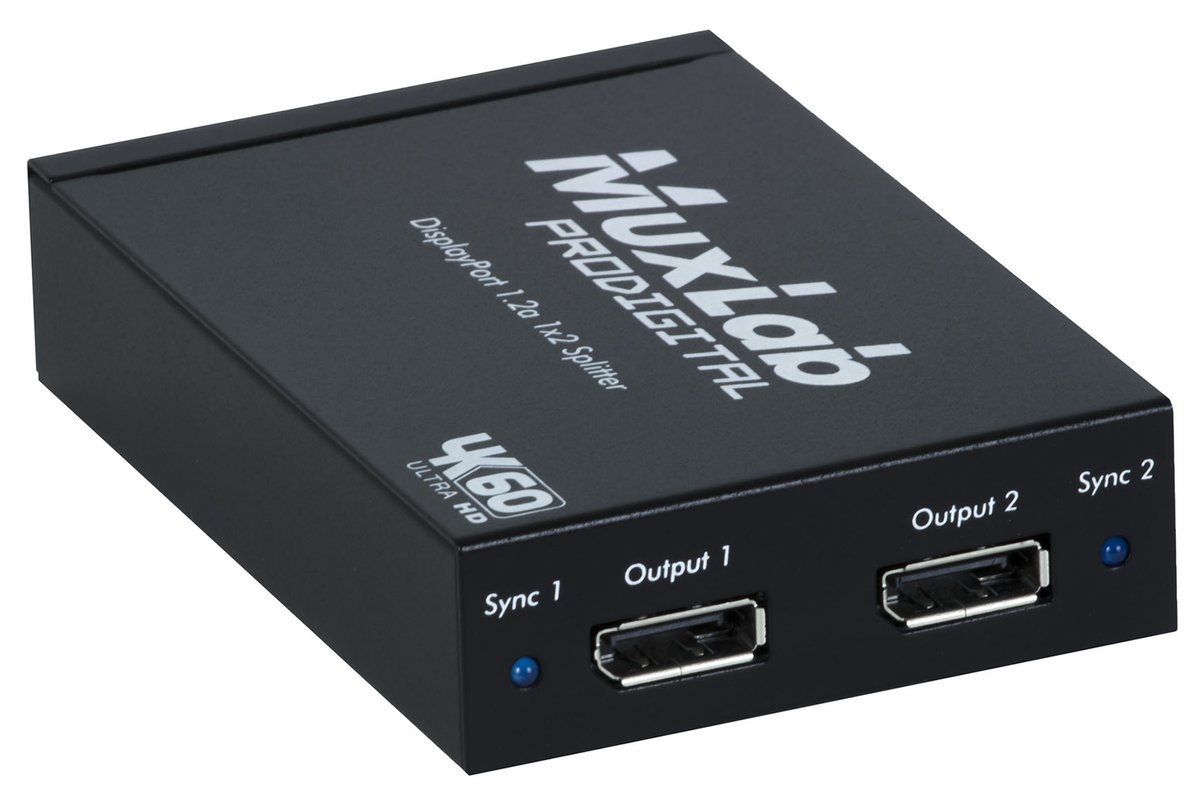

MuxLab 500505 DisplayPort 1.2a 1x2 Splitter, SST

The 500505 duplicates identical DisplayPort 1.2a content from one connector to two monitors, at resolutions up to 4K. It runs Single Stream Transport, so both screens show the same image rather than acting as an extended desktop.

The link carries 5.4 Gbps per lane for a total of 21.6 Gbps, with an HDMI link rate of 3.2 Gbps per data pair for dual-mode DisplayPort sources. PCM audio passes at up to 7.1 channels and 192 kHz sampling. Use it where two people need the same view, such as a presenter monitor plus a projector feed.

Standard	DisplayPort 1.2a Device Targeted Installation of DisplayPort or Mini DisplayPort output source equipment with DisplayPort input monitors
Signal Format	DisplayPort 1.2a & Dual mode DisplayPort protocol Transport Supports Single Stream Transport (SST)
Resolution	Up to 3840 X 2160 @ 60 FPS
Video Bandwidth	21.6 Gbps (5.4Gbps per lane)
HDCP	Revision 1.4 compliant
Audio	LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio

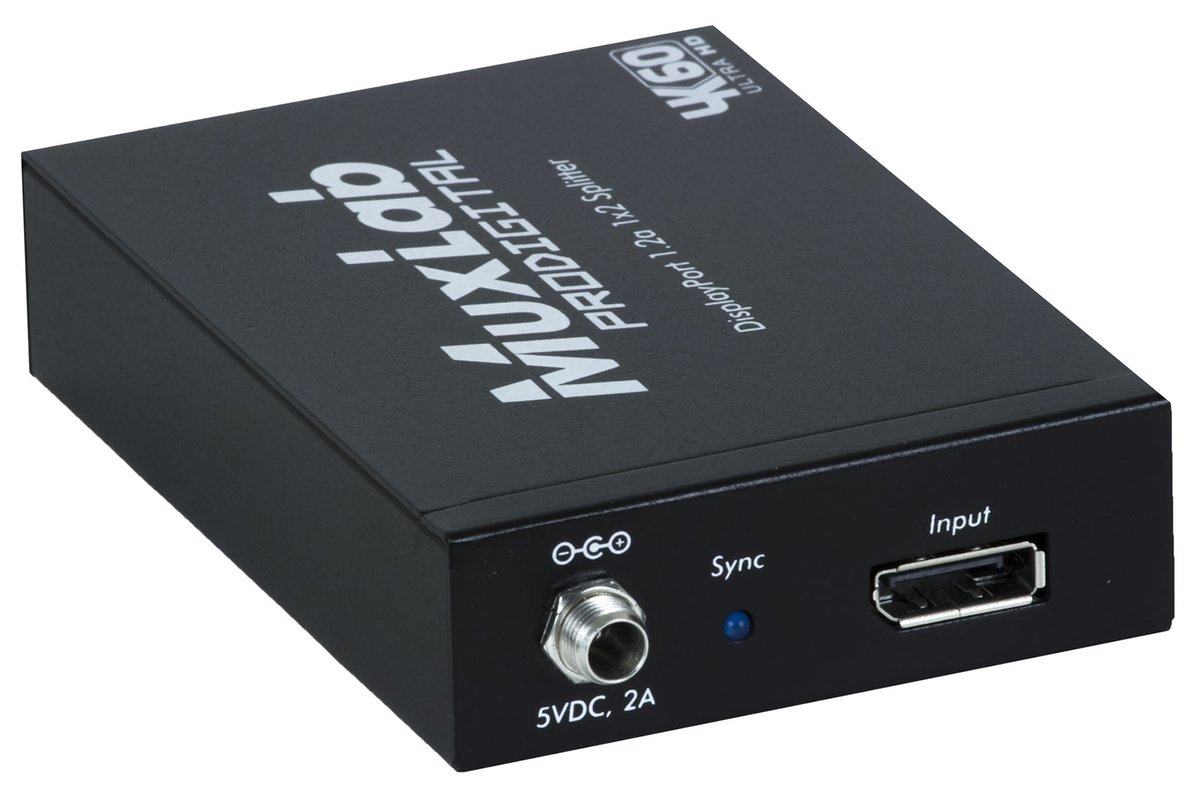

Connectors	Three DisplayPort connectors. One PSU connector

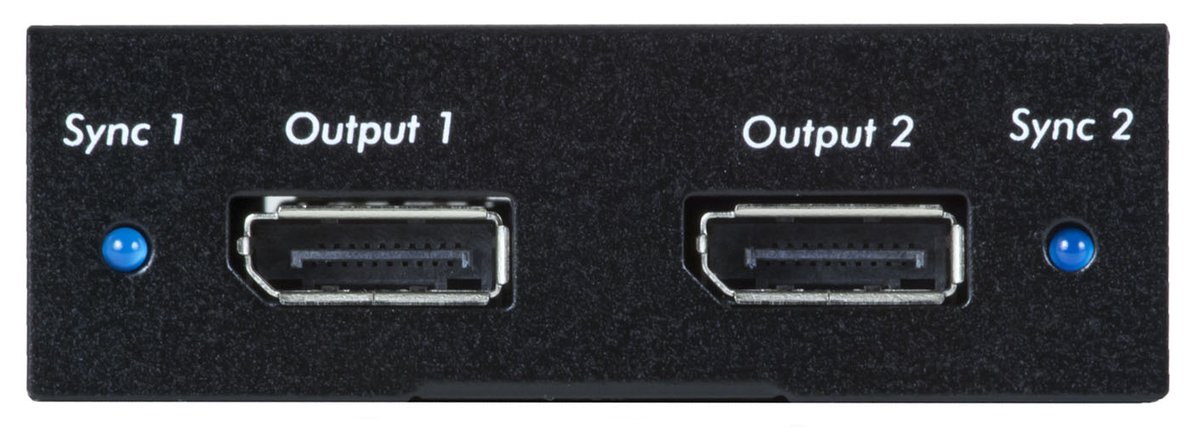

Output	port : 2x Standard DisplayPort Cables (Select appropriate cable length for video resolution selected)
