MuxLab 500728 12G-SDI 1X8 Splitter, 4K/60

The 500728 takes one 12G/6G/3G/HD/SD-SDI source and drives eight outputs at up to 4K at 60Hz with embedded audio, covering 480i SD-SDI, 720p and 1080i HD-SDI, 1080p 3G-SDI, 4K/30 6G-SDI, and 4K/60 12G-SDI.

The unit detects, re-clocks, and regenerates the signal on every output, so an eight-way split does not cost you distance on any leg. LED diagnostics report lock status per output, which is what you want when eight monitor feeds leave one box.

Standard	12G-SDI, 6G-SDI, 3G-SDI, HD-SDI & SD-SDI
Signal Format	SDI protocol. Supported Resolution 12G-SDI: 2160p50/59.94/60Hz (4:2:2) 6G-SDI: 2160p23.98/24/25/29.97/30Hz (4:2:2) 3G-SDI: 1080p50/59.94/60Hz (4:2:2)
Bandwidth	11.88bps & 11.88/1.001Gbps Data Rates 1.485, 2.97, 5.96 & 11.88 Gbps
Audio	Up to 8 Audio Channels. Ancillary Data Supported

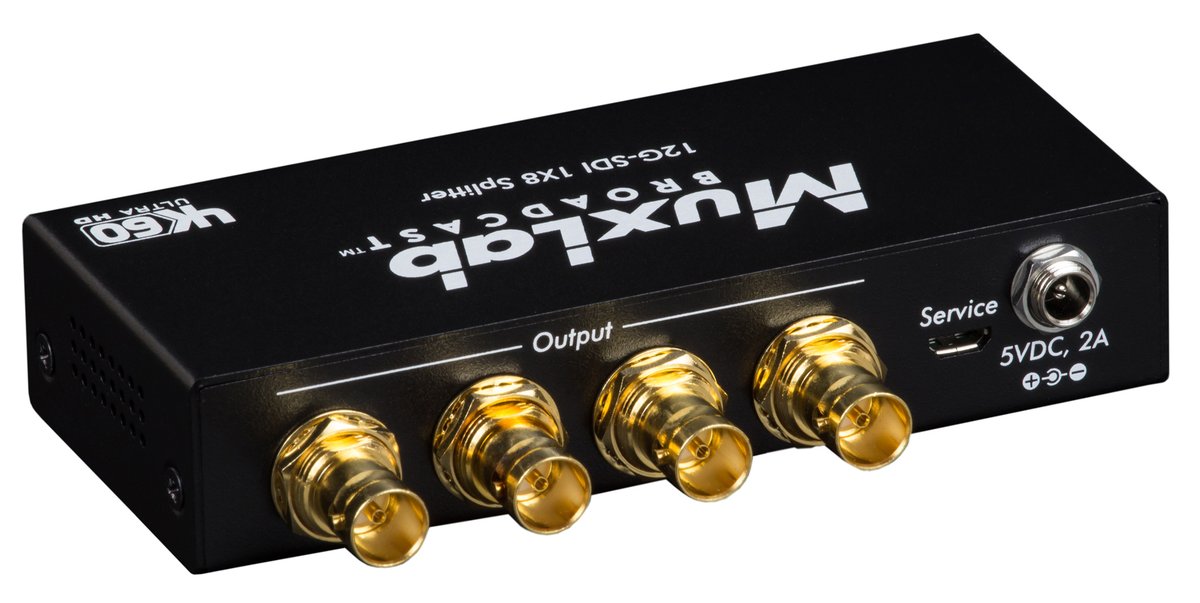

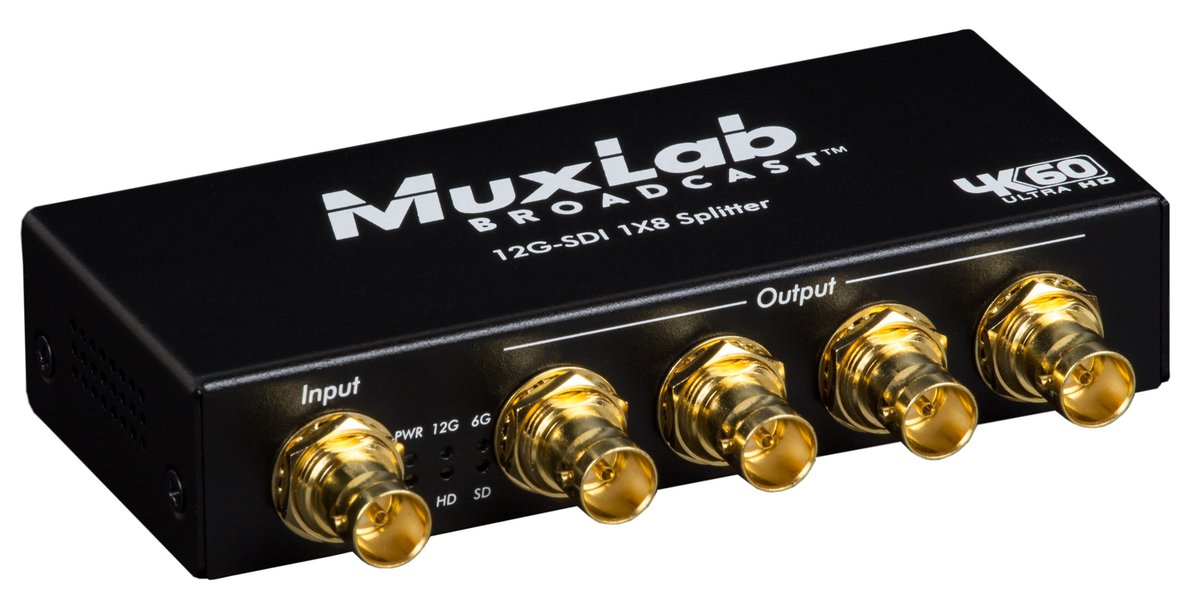

Connectors	One (1) BNC Female 75 Ohms, Gold Plated for input. Eight (8) BNC Female 75 Ohms, Gold Plated for outputs. One (1) Locking Barrel Jack 2.1mm Power Connector
Input	Signal 12G-SDI : SMPTE ST2082 6G-SDI : SMPTE ST2081 3G-SDI: SMPTE 424M, 425M
Output	Impedance 75 ohm
Cable	Equalization 12G-SDI up to 230ft (70m) 6G-SDI up to 330ft (100m) 3G-SDI up to 594ft (180m)
