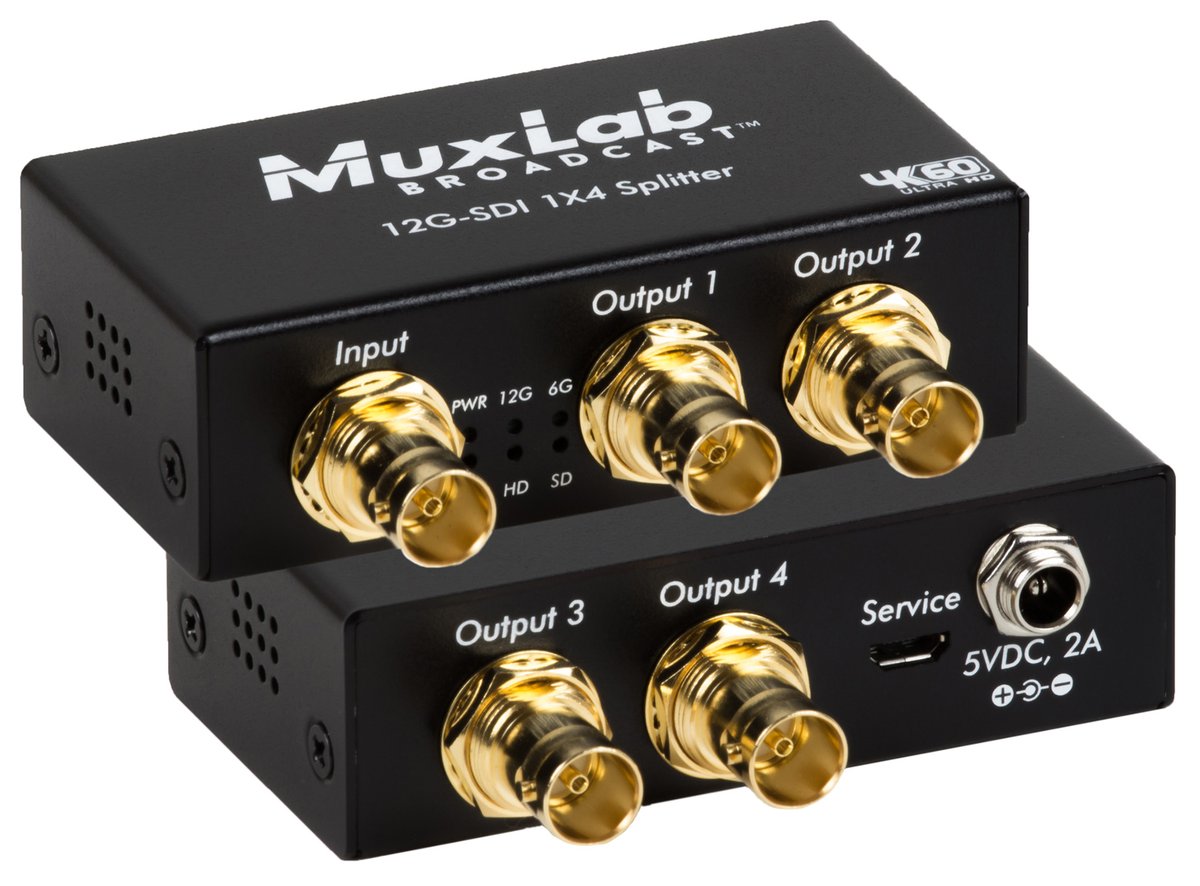

MuxLab 500727 12G-SDI 1X4 Splitter, 4K/60

The 500727 distributes and amplifies one 12G/6G/3G/HD/SD-SDI source to four outputs, supporting up to 4K (3840 x 2160) at 60Hz with embedded audio. Formats covered run from 480i SD-SDI through 1080p 3G-SDI, 4K/30 6G-SDI, and 4K/60 12G-SDI.

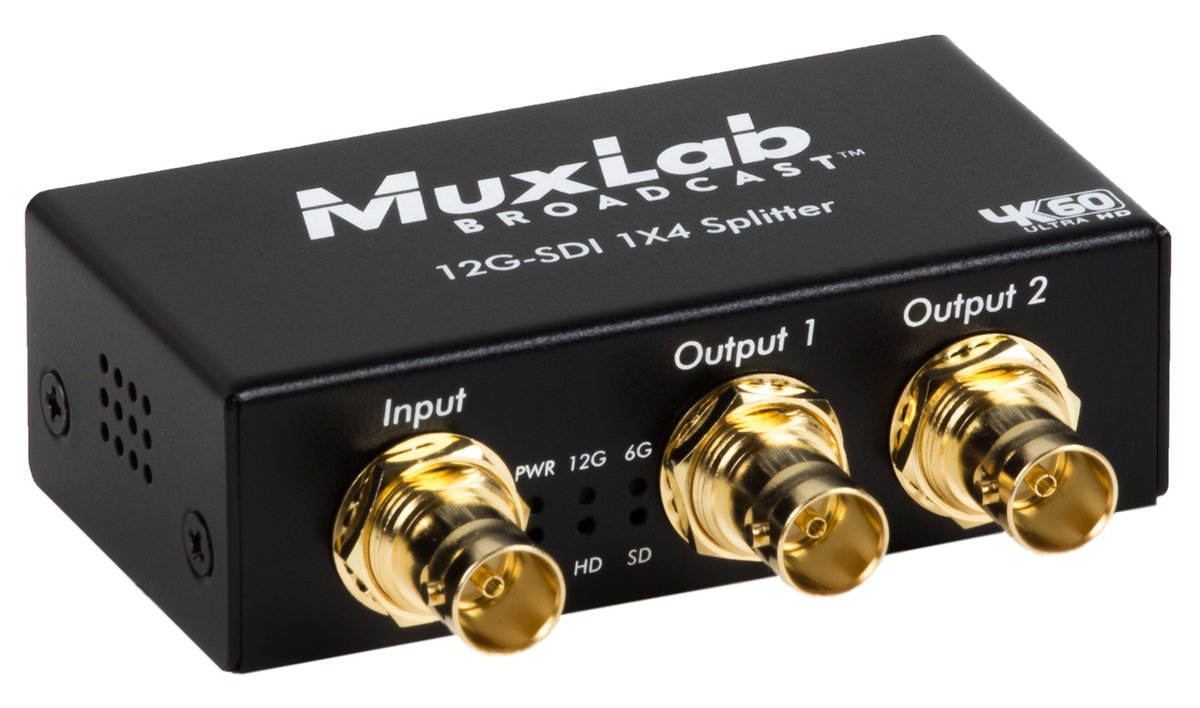

Each output is automatically re-clocked and regenerated rather than passively split, so cable length downstream of the splitter is not eaten into by the split itself. LED diagnostics show which outputs have a locked signal.

Standard	12G-SDI, 6G-SDI, 3G-SDI, HD-SDI & SD-SDI
Signal Format	SDI protocol. Supported Resolution 12G-SDI: 2160p50/59.94/60Hz (4:2:2) 6G-SDI: 2160p23.98/24/25/29.97/30Hz (4:2:2) 3G-SDI: 1080p50/59.94/60Hz (4:2:2)
Bandwidth	11.88bps & 11.88/1.001Gbps Data Rates 1.485, 2.97, 5.96 & 11.88 Gbps
Audio	Up to 8 Audio Channels. Ancillary Data Supported

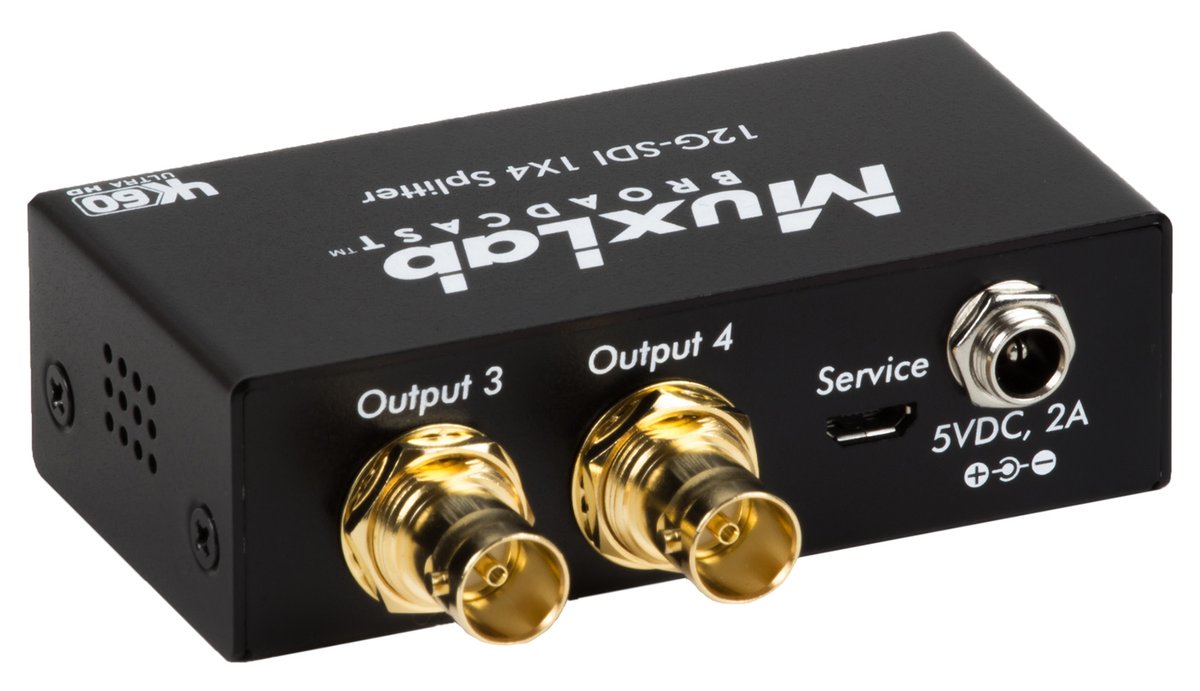

Connectors	One (1) BNC Female 75 Ohms, Gold Plated for input. Four (4) BNC Female 75 Ohms, Gold Plated for outputs. One (1) Locking Barrel Jack 2.1mm Power Connector
Input	Signal 12G-SDI : SMPTE ST2082 6G-SDI : SMPTE ST2081 3G-SDI: SMPTE 424M, 425M
Output	Impedance 75 ohm
Cable	Equalization 12G-SDI up to 230ft (70m) 6G-SDI up to 330ft (100m) 3G-SDI up to 594ft (180m)
