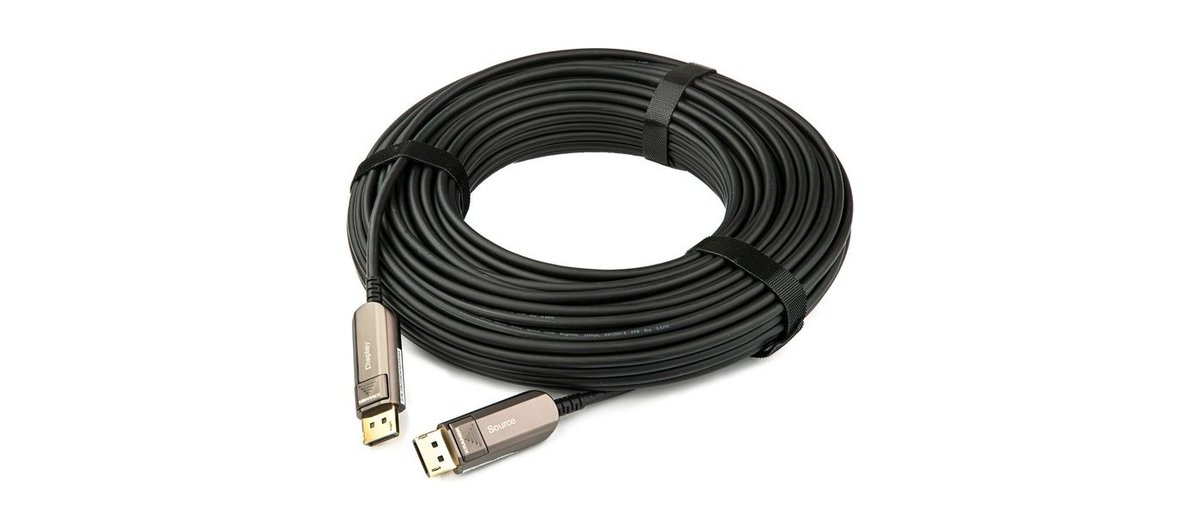

Kramer CLS-AOCDP/UF Active Optical DisplayPort Cable
CLS-AOCDP/UF is a DisplayPort 1.4, 8K active optical cable (AOC) that features high resolution and data transfer rate. CLS-AOCDP/UF is thin and flexible and requires no external power. User experience is maximized with integrator-oriented features and the latest advances in DisplayPort1.4 technology. Latest DisplayPort Technology - Supports 3D, HDCP, EDID, HBR3, DSC, and 8K@60Hz resolution. Streamlines Installations - Supports up to 8K@60Hz over long cable runs of up to 100 meters without the need for an external power supply or additional extenders. High Data Transfer Rate - Up to 32.4Gbps data rate with 8.1Gbps/lane (HBR3) link rate. Supports up to 8 channels of 16 or 24bits linear PCM & 32 to 192KHz sampling rate. No External Power Needed - Powers the active units via the DisplayPort connector. Thin Construction - 4.8mm diameter. Safe Construction - Low smoke & halogen free. Compliance - RoHS 2011/65/EU compliant, CE/FCC.
| Max. Resolution | 8K@60Hz (7680x4320) |
|---|---|
| Max. Data Rate | 32.4 Gbps (HBR3) |
| Max Color Depth | 48bit |
| DisplayPort Support | HDCP 2.2, EDID and DPCP |
| Channels | Up to 8 of 16 or 24bits linear PCM |
| Sampling Rate | 32 to 192KHz |
| Connectors | Male DisplayPort gold plated |
| Cable Structure | Hybrid Optical Fiber Cable |
| Fiber Optic | 4X850nm Multi-mode fiber |
| Fiber Cable Type | Hybrid cable - 4 x fiber and 8 x copper wires |
| Conductors | 2px26AWG + 4cx28AWG + 2cx24AWG |
| Outer Sheath Material | LSHF |
| Outer Sheath Color | PVC Black |
| Outer Sheath Diameter | 4.8mm |
| Minimum Cable Bending Radius | 48mm |
| Connector Max. Pulling Strength | 25.173Kg |
| Max. Compression Load Resistance | 300N |
| Operating Temperature | 0 to +50C |
| Storage Temperature | -20 to +85C |
| Operating Humidity | 5 to 85% |
| Consumption | <0.5W for each end |
| LSHF | EN 60332-1-2, EN 50399 |
| RoHS | 2011/65/ EU |
| Certified | CE/FCC |
