MuxLab 500511 HDMI 2.1 48Gbps 1x4 Splitter

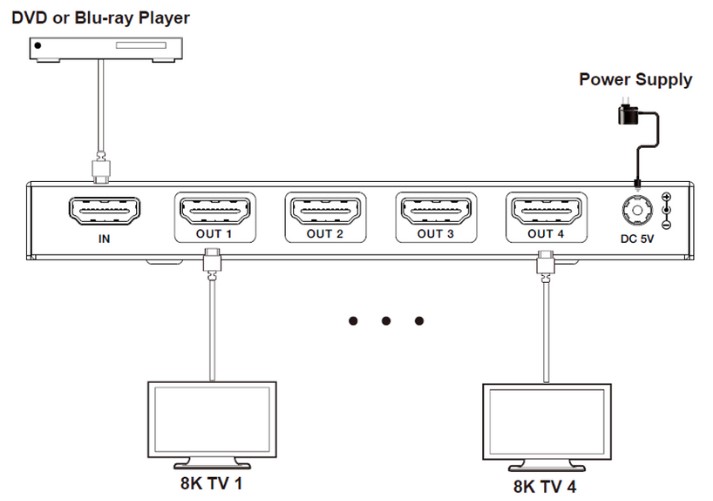

The 500511 splits one HDMI 2.1 source to four displays, holding the full 48Gbps FRL rate so 8K/60 or 4K/120 signals reach every output intact, with every major HDR format (HDR10, HDR10+, Dolby Vision, HLG) passing through unchanged.

Full HDMI 2.1 gaming protocols (VRR, ALLM, QMS, QFT) carry through the splitter, and automatic 8K-to-4K downscaling with HDR-to-SDR conversion covers the displays on the run that cannot handle the source's native signal.

HDMI Compliance	HDMI 2.1 and HDCP 2.3 compliant
Signal Format	HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM
Resolution	8K/60Hz 4:2:0 12-bit; 4K/120Hz 4:4:4 12-bit
Bandwidth	48Gbps FRL and 18Gbps TMDS
HDR	HDR10, HDR10+, Dolby Vision, HLG pass-through
Audio	LPCM 7.1CH, Dolby TrueHD, Atmos, DTS-HD Master, DTS:X
Dimensions	1.08H x 1.78W in (4.53 x 2.75 cm)
Weight	0.390 kg
