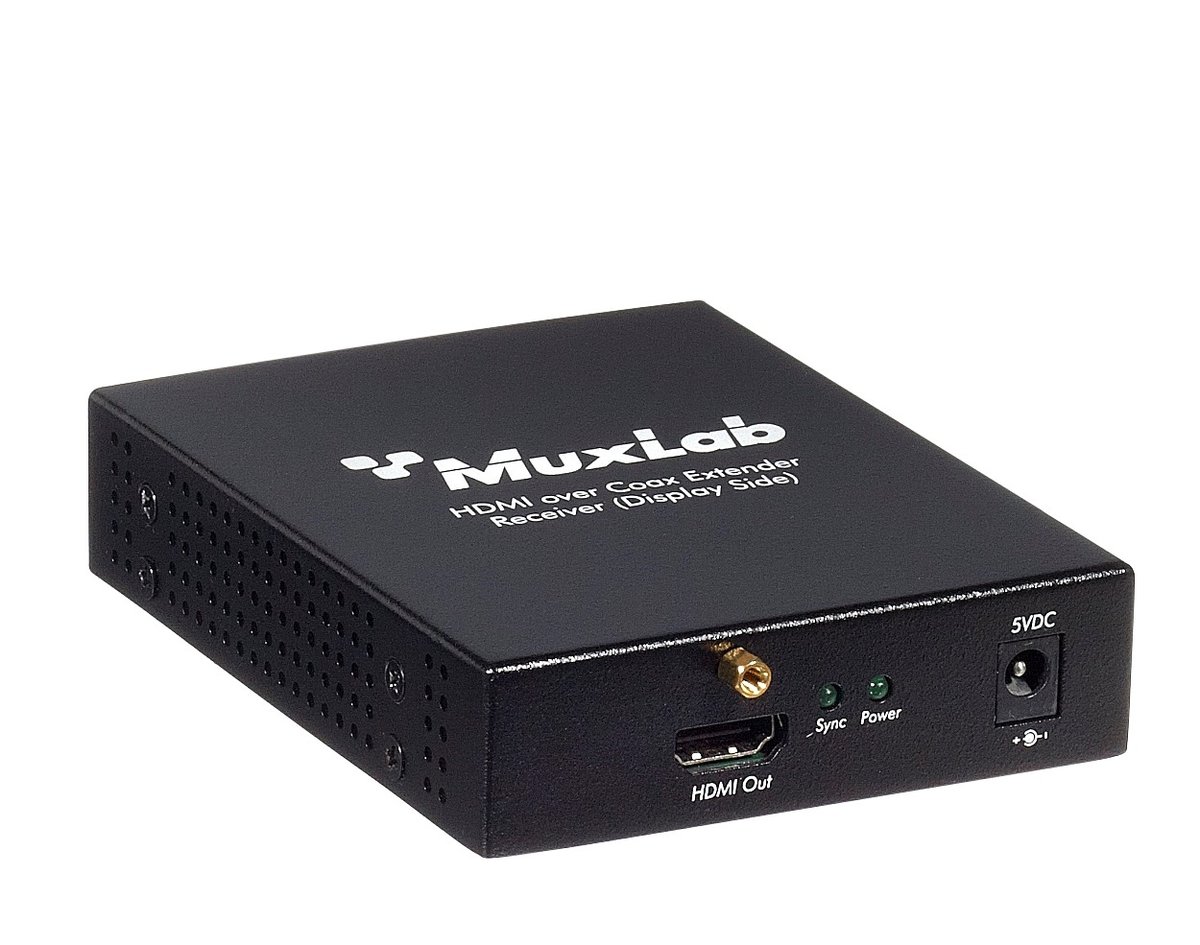

MuxLab 500465 HDMI Over Coax Receiver

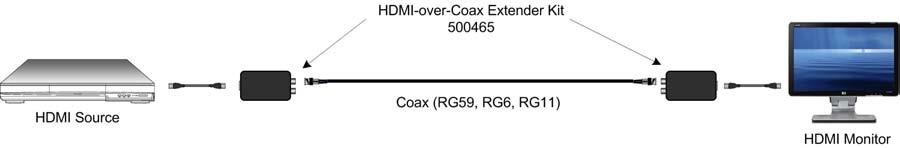

The 500465-RX is the receiving end of MuxLab's HDMI over coax link, carrying HDMI up to 250ft (76m) at 1080p or 500ft (152m) at 1080i and 720p over a single RG59 coax cable. Coax is often what is already in the wall in a retrofit, and it holds up well in electrically noisy buildings.

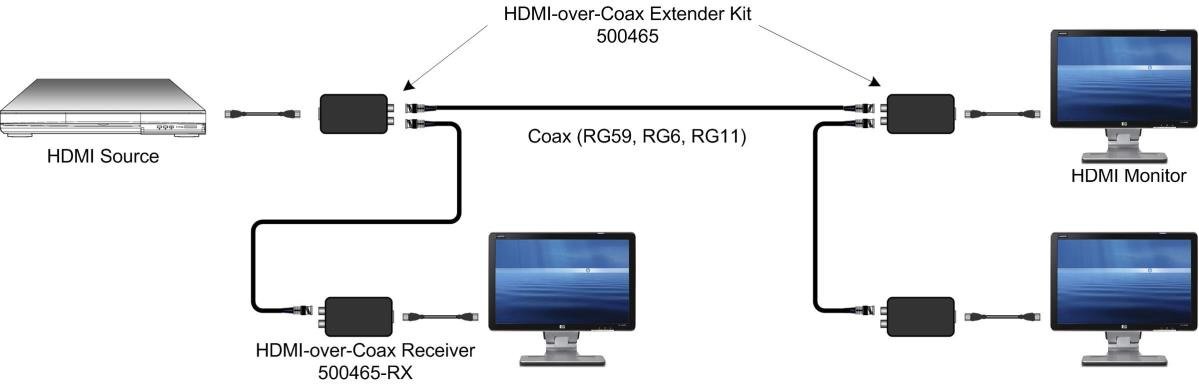

The receiver can be cascaded, so several displays chain off one transmitter for a multi-display run without a separate splitter. It is HDCP compliant. Order it alongside the matching transmitter, or on its own to add a display to an existing coax run.

Standard	HDMI 1.3a, 3G-SDI, HD-SDI & SD-SDI
Signal Format	HDMI 1.3a & SDI protocol Supported Resolution 480i, 576i, 720p, 1080i, 1080p/23.98/24/25/29.9/30/50/59.94/60
Bandwidth	225 MHz
Connectors	One (1) HDMI receptacle. Two (2) BNC Female 75 Ohms
Cable	One (1) RG-59 or better cable required
Power Supply	Two (2) 110-240V/5VDC power supplies with interchangeable blades
Power Consumption	Transmitter: 3.30 Watt Receiver: 3.55 Watt
Dimensions	4.72" x 3.54" x 1.18" (12.0 x 9.0 x 3.0 cm)
