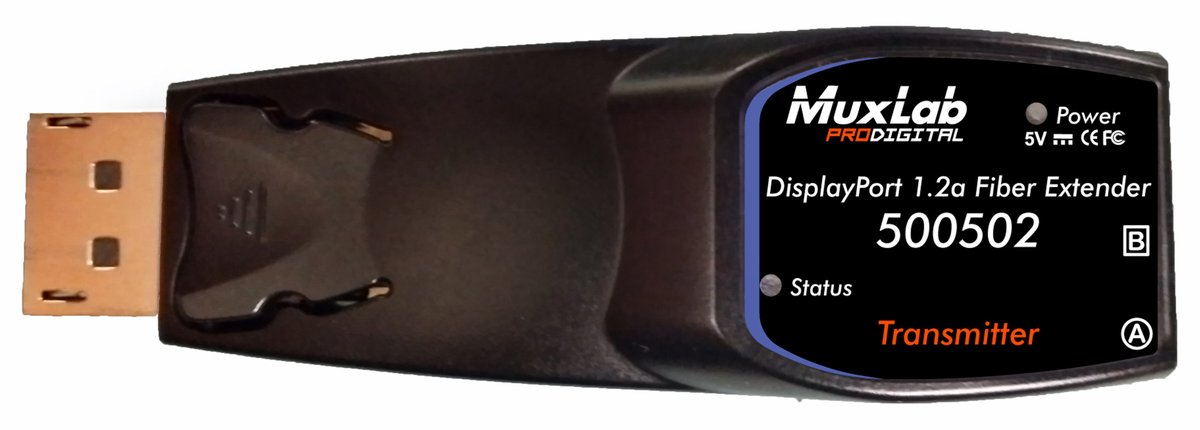

MuxLab 500502 DisplayPort 1.2a Fiber Extender Kit

The 500502 kit transmits WQUXGA (3840 x 2400) at 60Hz over multimode fibre up to 660ft (200m) with no scaling and no compression applied. Total throughput is 21.6Gbps, 5.4Gbps per lane.

It supports the DisplayPort 1.2a standard over OM3 or OM4 fibre and handles Dual-Mode DP (DP++) sources. The usual application is putting a high-resolution monitor a long way from the workstation driving it, in medical imaging, control rooms, and design studios.

Standard	DisplayPort 1.2a
Signal Format	DisplayPort 1.2a Connectors One (1) DisplayPort Male Connector Two (2) LC Optical Connectors One (1) Micro USB connector for external power
Video Resolution	Up to 3840x2400 @ 60Hz
Video Bandwidth	21.6 Gbps (5.4 Gbps per lane)
Maximum Distance	330ft (100 m) over 50/125 m multi-mode fiber (OM3)
Cable	Two (2) LC multi-mode fibers, having a 50/125 m core
Power	Supply Two (2) 110-240V to 5VDC, 1A power supply with interchangeable blades for US, UK & Euro
Dimensions	1.02" x 2.83" x 0.57" (26 x 72 x 15 mm)
