MuxLab 500530 USB 3.2 Gen1 4-Port Extender Kit, 100m

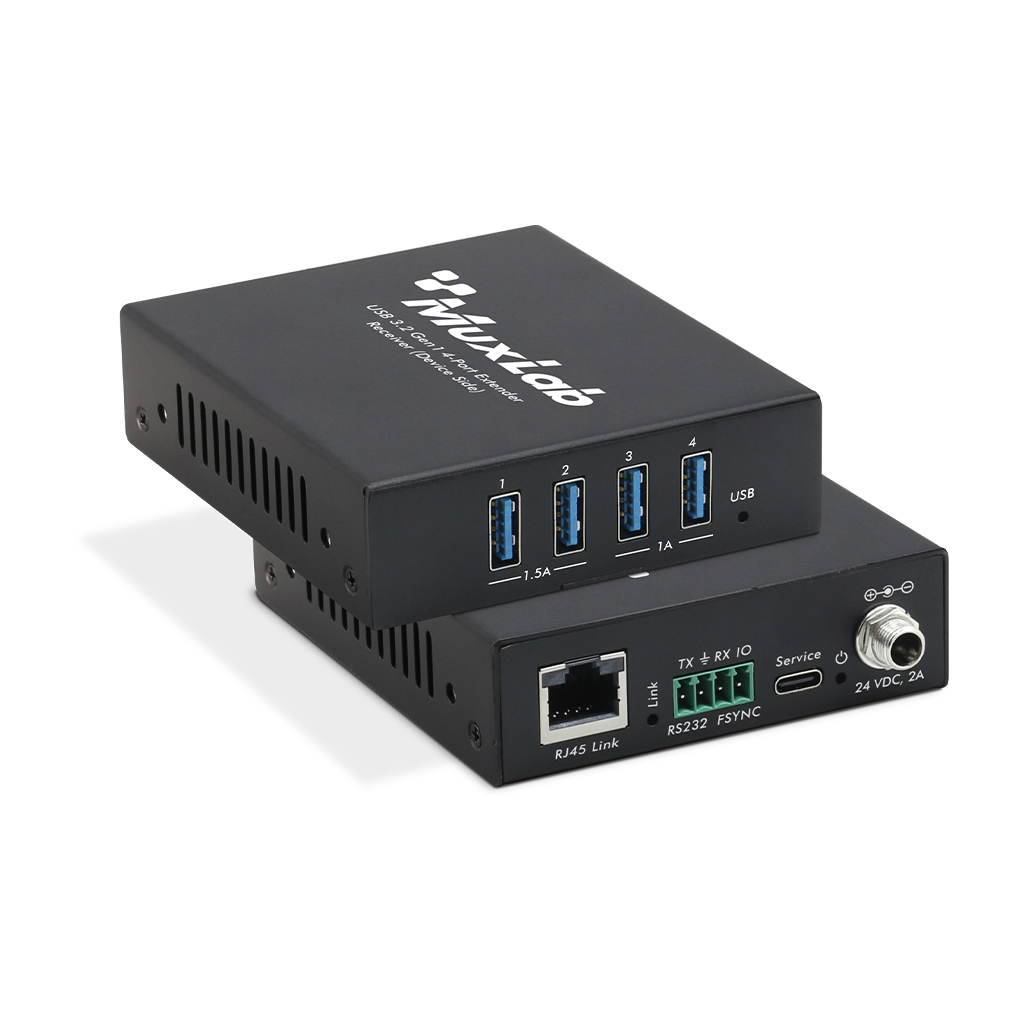

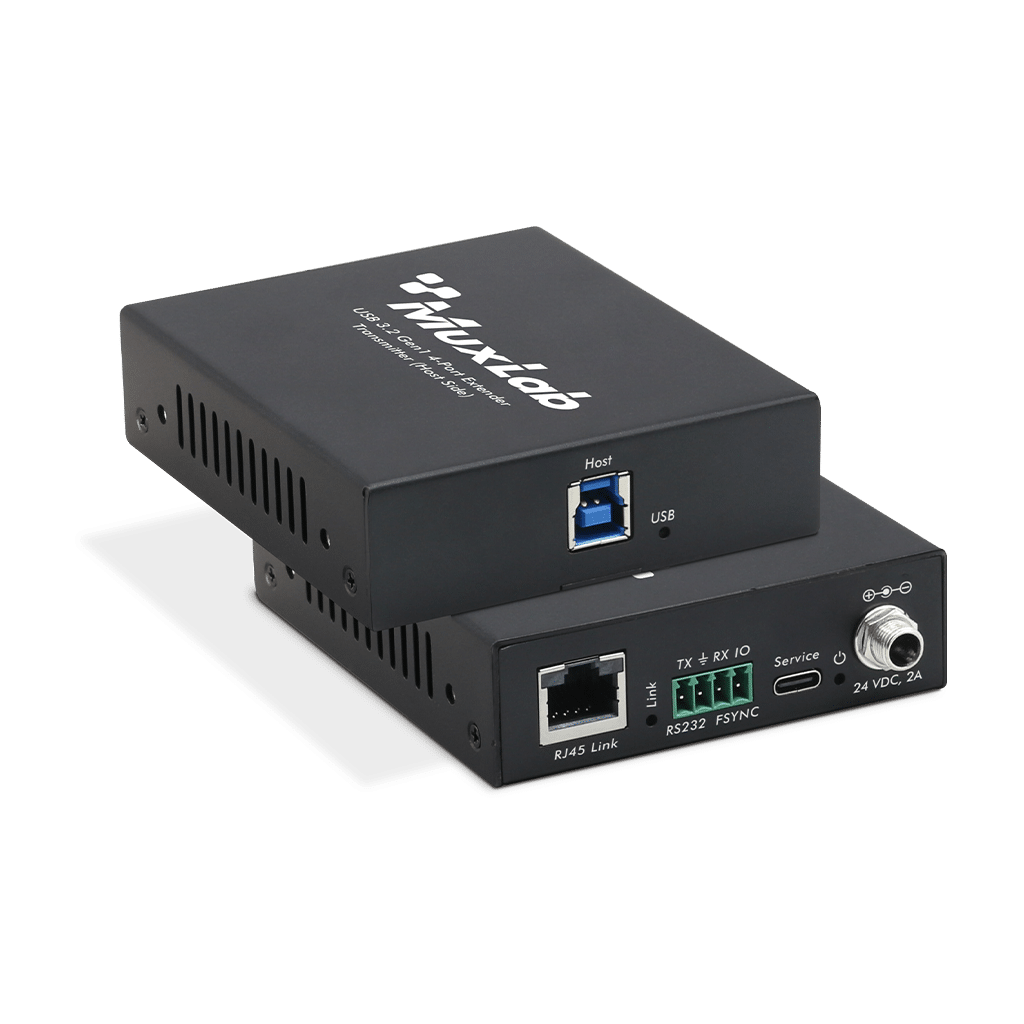

The 500530 kit extends true USB 3.2 Gen1 up to 328ft (100m) over standard Cat6a UTP, at data rates up to 5Gbps. The transmitter presents one USB 3.2 Gen1 Type B input plus an FSYNC GPIO input and RS232 pass-through; the receiver provides four USB 3.2 Gen1 ports.
Hardware acceleration handles isochronous and bulk transfers, which is what keeps cameras and audio interfaces stable at distance rather than dropping frames. It is backwards compatible with USB 2.0 and USB 1.1, so a mixed set of peripherals works on the same link.
| Color | Black |
|---|---|
| Input | 1 x USB HOST [USB-B, 9pin Female] |
| Output | 1 x HDBT OUT [RJ45, Female] |
| Control | 1 x RS-232 [3pin-3.5mm Phoenix Connector] 1 x FSYNC [1pin-3.5mm Phoenix Connector] 1 x SERVICE [USB-C,Update Port] Transmitter Receiver Metal EnclosureHousing |
| Dimensions | Transmitter / Receiver: 85mm [W] x 100mm [D] x 25.5mm [H] |
| Transmission | Rate USB 3.2 Gen1 10G Technical Specification Up to 5Gbps Connection Mechanical 100m/328ft over CAT6a (F/FTP) cableTransmission Distance |
