MuxLab 500458 HDMI/RS232 Extender Kit with ARC, HDBT, UHD-4K

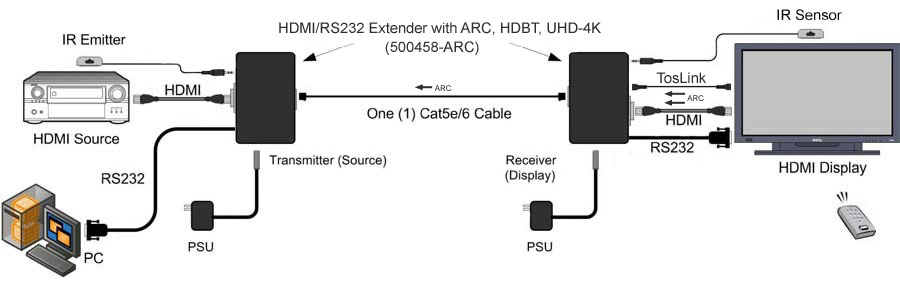

The 500458-ARC kit extends HDMI over one Cat5e/6 cable, holding 4K at 24/25/30Hz 4:4:4 and 4K/60 4:2:0 to 131ft (40m), or 1080p with full 3D to 230ft (70m). It is HDCP 2.2 compliant.

Audio Return Channel support is the reason to pick this version: sound generated by apps on the far-end smart display travels back down the link to the amplifier at the source end, rather than needing a separate audio run. RS232 pass-through covers display control.

Standard	HDMI 2.0b
Signal Format	HDMI 2.0b protocol
Cable	One (1) Category 5e or better twisted pair cable required
Power Supply	Two (2) 110-240V/5VDC power supplies with interchangeable blades
Power Consumption	Transmitter: 1.6 Watt Receiver: 3.2 Watt
Dimensions	4.40" x 3.00" x 1.00" (11.2 x 7.6 x 2.5 cm)
Weight	1.4 lbs (.6 kg)
Enclosure	Metal
