Shop all MuxLab

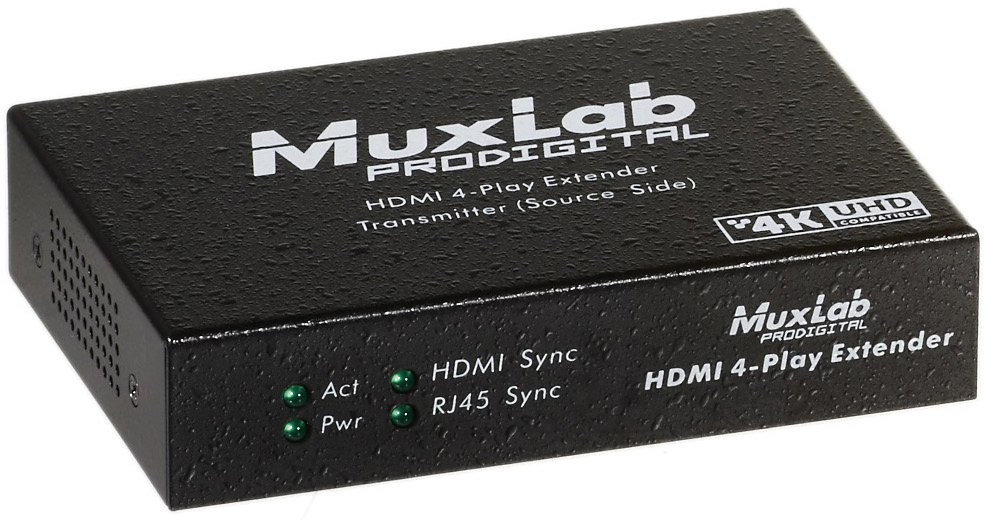

MuxLab 500456 HDMI 4-Play Extender Kit

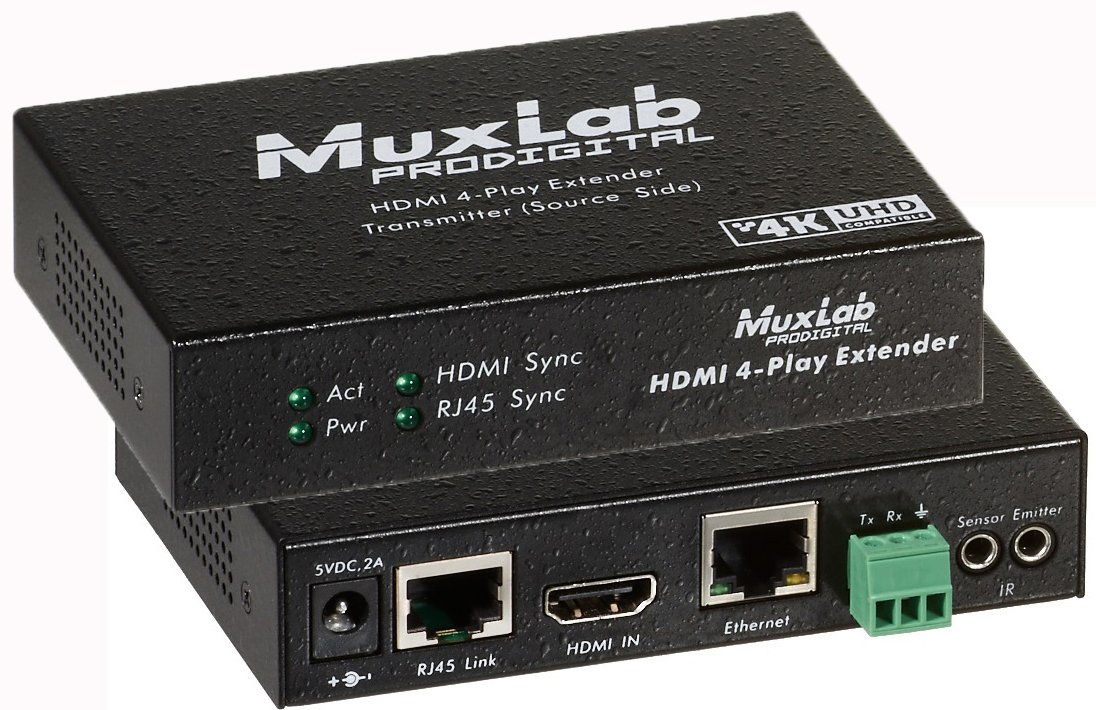

The 500456 kit extends HDMI up to 330ft (100m) at 1080p Deep Color over one Cat5e/6 cable, and also supports 4K at 30fps and 3D. What sets it apart is the extra services on the same cable: a LAN port for Ethernet equipment at the far end, RS232 for control, and bi-directional IR.
That combination means one structured cable run serves a remote display, a networked device beside it, and the control path back to the rack. It is compatible with MuxLab's other HDBaseT products, so it can be mixed into an existing extender estate.
| Standard | HDMI 1.3a (Supports the 3D feature of HDMI 1.4) |
|---|---|
| Signal Format | HDMI 1.3a protocol |
| Bandwidth | 340 MHz |
| Cable | One (1) Cat 5e/6 or better twisted pair cables required |
| Power Supply | Two (2) 110-240V/5VDC power supplies with interchangeable blades |
| Power Consumption | Transmitter: 2.75 Watt Receiver: 5.15 Watt |
| Dimensions | 4.40" x 3.00" x 1.00" (11.2 x 7.6 x 2.5 cm) |
| Weight | 1.4 lb (0.6 kg) |
