MuxLab 500741 HDMI 2.0 to 12G-SDI Converter

The 500741 converts HDMI 2.0 to 12G-SDI with low delay, providing one HDMI 2.0 input, a local HDMI 2.0 loop out, and four SDI outputs: one 12G-SDI plus three 6G-SDI. Single link, dual link, and quad link modes are supported, including quad link 2 Sample Interleave.

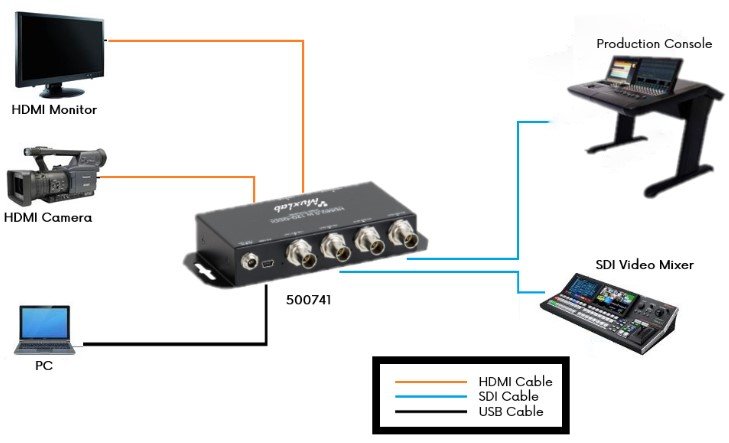

Multi-standard support covers 12G, 6G, 3G, HD, and SD-SDI, and the unit auto-detects the source format. It is the piece that gets a computer, camera, or media player output into an SDI-based production chain without a format argument.

Bandwidth	(HDMI)
Controls	1 x USB HOST [Mini USB] 2 x Front LEDs indicate Locked HDMI Signals 4 x Rear LEDs indicate Locked SDI Signals
Power	7.5Vdc to 15Vdc with locking connector DIP Switch Settings
Dimensions	153 X 80.7 X 26mm Converter Inputs: Connections 1 x HDMI IN [Type A, 19-pin female]
Housing	Black Metal
Humidity	0 to 90% non condensing HDMI 2.0 to 12G-SDI Video Converter 500741 Follow us: 2321 Cohen \| St-Laurent , H4R 2N7 \| Qu bec, Canada info@muxlab.com \| salesteam@muxlab.com \| www.muxlab.com
Video	Resolution System latency
Outputs	1 x HDMI Loop Out [Type A, 19-pin female] 1 x 12G-SDI connector [High speed BNC female] 3 x 6G-SDI connector [High speed BNC female]
