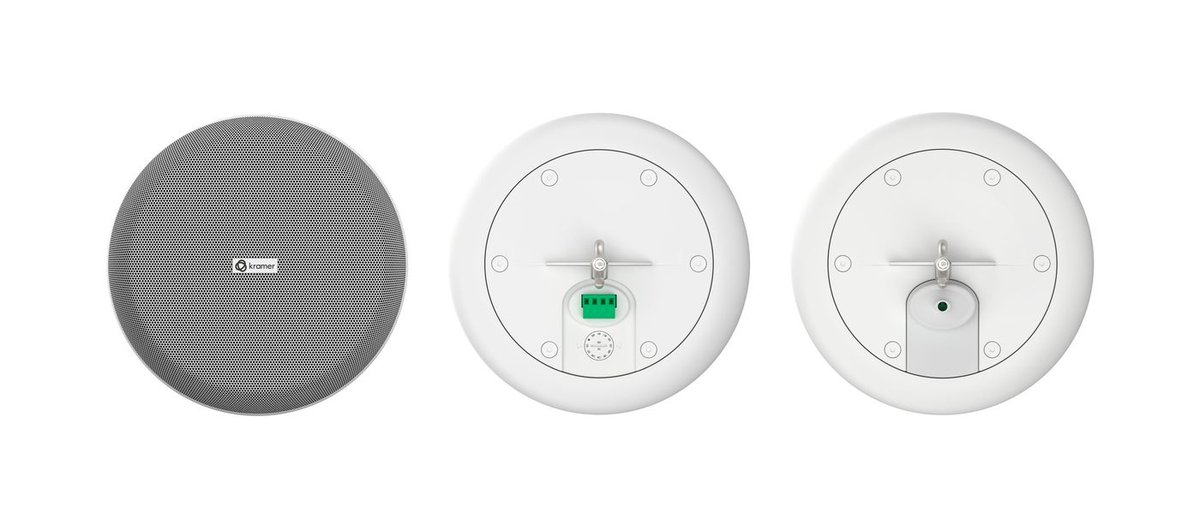

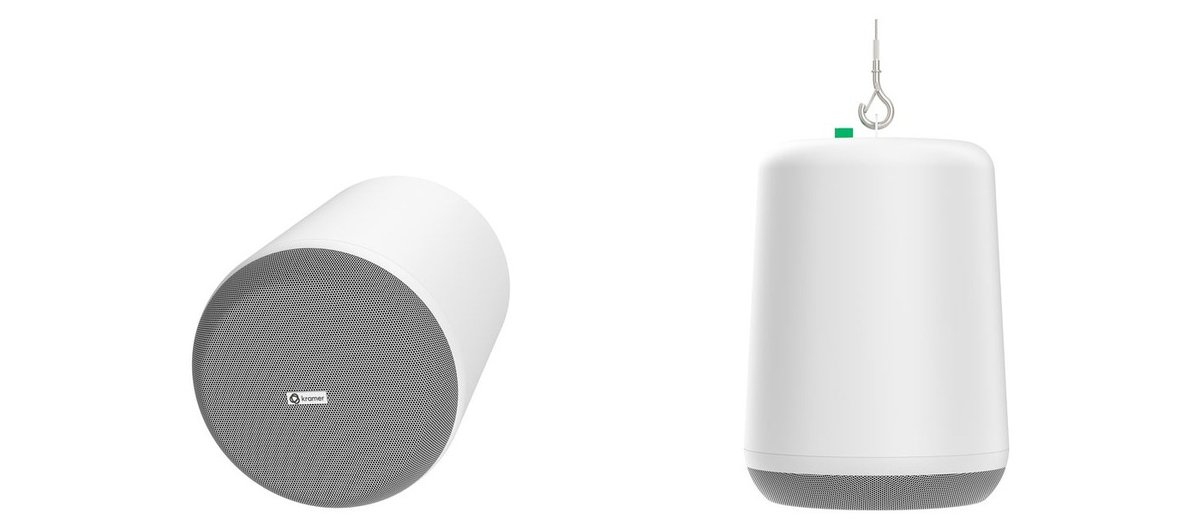

Kramer PN-6P 6.5 in. 2-Way Passive Pendant Speaker

The Kramer PN-6P is a 6.5”, 2-way, Passive Pendant Speaker, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: 6.5", 2-way, passive pendant speaker. Available in black & white colors (description); Driver:LF Driver: 165 mm (6.5 in) high output driver with polypropylene cone and rubber surround; HF Driver: 19 mm (0.75 in) liquid cooled soft-dome tweeter; Frequency characteristicsFrequency Range (-10dB): 68Hz-20kHz; Frequency Response (±3dB): 87Hz-18kHz; Dispersion angle: 108 deg. conical dispersion (1 kHz to 4 kHz); Power ratings@ 8Ω Low impedance: 30W continuous / 45W peak; @ 100 V High impedance: 30W/15W/7.5W; @ 70 V High impedance: 30W/15W/7.5W/3.8W; Sound Pressure Level (SPL)Sensitivity (1W@1m, free field): 90dB SPL; Maximum SPL: Continuous: 105dB SPL / Peak: 107dB SPL (audio); InstallationType: Pendant ceiling speaker; Mounting: Suspension cable systems including: 4.5m / 177” long 2mm / 0.08” diameter high-tensile galvanized-steel wire with spring-clip carabiner for clipping onto the loudspeaker bracket and a gripple fastener for adjusting speaker height. Cable have SWL rating of 45 kg / 100lbs; Connectors: 4-pin pluggable Euroblock connector, 28-12AWG; Weight per single speaker: 3.2kg (7lbs); DimensionsSpeaker height (w/o mounting bracket): 270mm / 10.7”; Speaker height (including mounting bracket): 333mm / 13.1”; Speaker outer diameter: 224mm / 8.82”; Minimum distance between the grill and the ceiling: 380mm / 15”; Shipping Dimensions (single unit): 330mm x 330mm x 395mm / 13" x 13" x 15.6"; Master box dimensions (single unit): 438mm x 438mm x 351mm / 17.3" x 17.3" x 13.9"; Shipping dimensions (2 units in a Master box): 668mm x 338mm x 413mm / 26.3" x 13.3" x 16.3"; Shipping weight (single unit): 4.50Kg / 9.92lbs; Shipping weight (2 units in a Master box): 9.6Kg / 21.2lbs; Packaging: Eco-friendly mono-material packaging made entirely from recyclable carton, designed for durability and ease of recycling; MaterialGrill: Black/White Powder Coated Steel, with cloth, removable logo; Baffle: V-0 Flame Retardant; EnvironmentalOperating Temperature: -5° to +50°C (23° to 122°F); Storage Temperature: -10° to +55°C (14° to 131°F); Humidity: 30% to 85%, RHL non-condensing (mechanical); UL1480A Certified: Meets safety standards for fire-protective signaling in commercial spaces; Environmental: RoHS, REACH, WEEE (regulatory). Also: 1 speaker (sigle unit), 2 speakers are packed in a single master box; 1 suspension cable kit; 4-pin pluggable Euroblock connector, 28-12AWG; Quick Start Guide (in the box).
