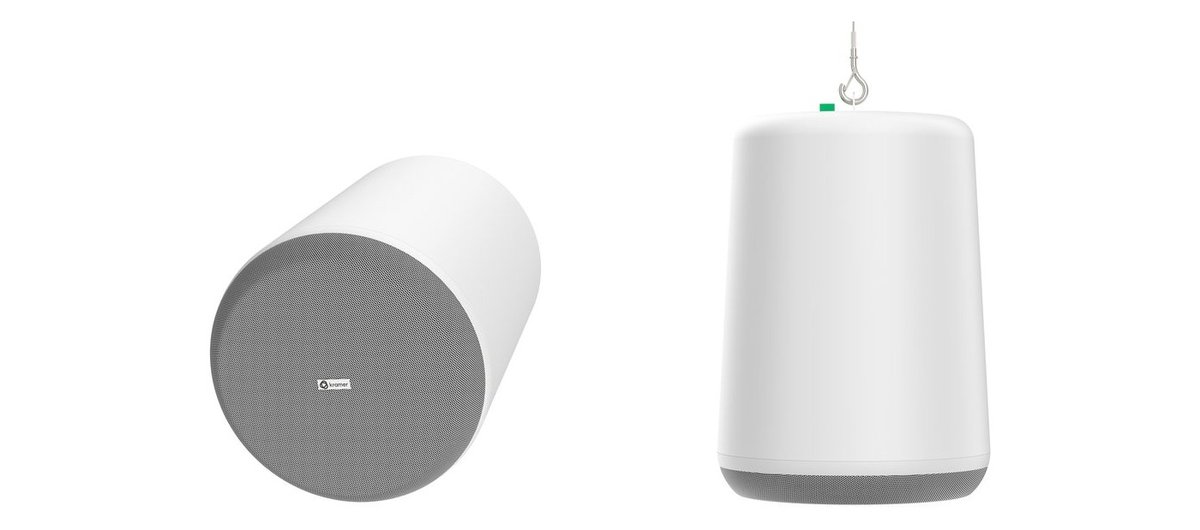

Kramer PN-8P 8”, 2-way, passive pendant speaker

The Kramer PN-8P is a 8”, 2-way, passive pendant speaker, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: 8", 2-way, passive pendant speaker. Available in black & white colors (description); Driver:LF Driver: 200 mm (8 in) with polypropylene cone and rubber surround; HF Driver: 25 mm (1 in) liquid cooled soft-dome tweeter; Frequency characteristicsFrequency Range (-10dB): 68Hz-20kHz; Frequency Response (±3dB): 87Hz-18kHz; Dispersion angle: 108 deg. conical dispersion (1 kHz to 4 kHz); Power ratings@ 8Ω Low impedance: 60W continuous / 90W peak; @ 100 V High impedance: 60W/30W/15W; @ 70 V High impedance: 60W/30W/15W/7.5W; Sound Pressure Level (SPL)Sensitivity (1W@1m, free field): 90dB SPL; Maximum SPL: Continuous: 108dB SPL / Peak: 110dB SPL (audio); InstallationType: Pendant ceiling speaker; Mounting: Suspension cable systems including: 4.5m / 177” long 2mm / 0.08” diameter high-tensile galvanized-steel wire with spring-clip carabiner for clipping onto the loudspeaker bracket and a gripple fastener for adjusting speaker height. Cable have SWL rating of 45 kg / 100lbs; Connectors: 4-pin pluggable Euroblock connector, 28-12AWG; Weight per single speaker: 5.21kg (11.49lbs); DimensionsSpeaker height (w/o mounting bracket): 401mm / 15.8”; Speaker height (including mounting bracket): 422mm / 16.6”; Speaker outer diameter: 282mm / 11.1”; Distance of grill to the ceiling (with the included cable): 450mm / 18”; Shipping Dimensions (single unit): 410mm x 410mm x 484mm / 16.2" x 16.2" x 19.1"; Master box dimensions (single unit): 438mm x 438mm x 351mm / 17.3" x 17.3" x 13.9"; Shipping dimensions (2 units in a Master box): 828mm x 418mm x 502mm / 32.6" x 16.5" x 19.8"; Shipping weight (single unit): 7.10Kg / 15.7lbs; Shipping weight (2 units in a Master box): 15.3Kg / 33.8lbs; Packaging: Eco-friendly mono-material packaging made entirely from recyclable carton, designed for durability and ease of recycling; MaterialGrill: Black/White Powder Coated Steel, with cloth, removable logo; Baffle: V-0 Flame Retardant; EnvironmentalOperating Temperature: -5° to +50°C (23° to 122°F); Storage Temperature: -10° to +55°C (14° to 131°F); Humidity: 30% to 85%, RHL non-condensing (mechanical); UL1480A Certified: Meets safety standards for fire-protective signaling in commercial spaces; Environmental: RoHS, REACH, WEEE (regulatory). Also: 1 speaker (single unit), 2 speakers are packed in a single master box; 1 suspension cable kit; 4-pin pluggable Euroblock connector, 28-12AWG; Quick Start Guide (in the box).
