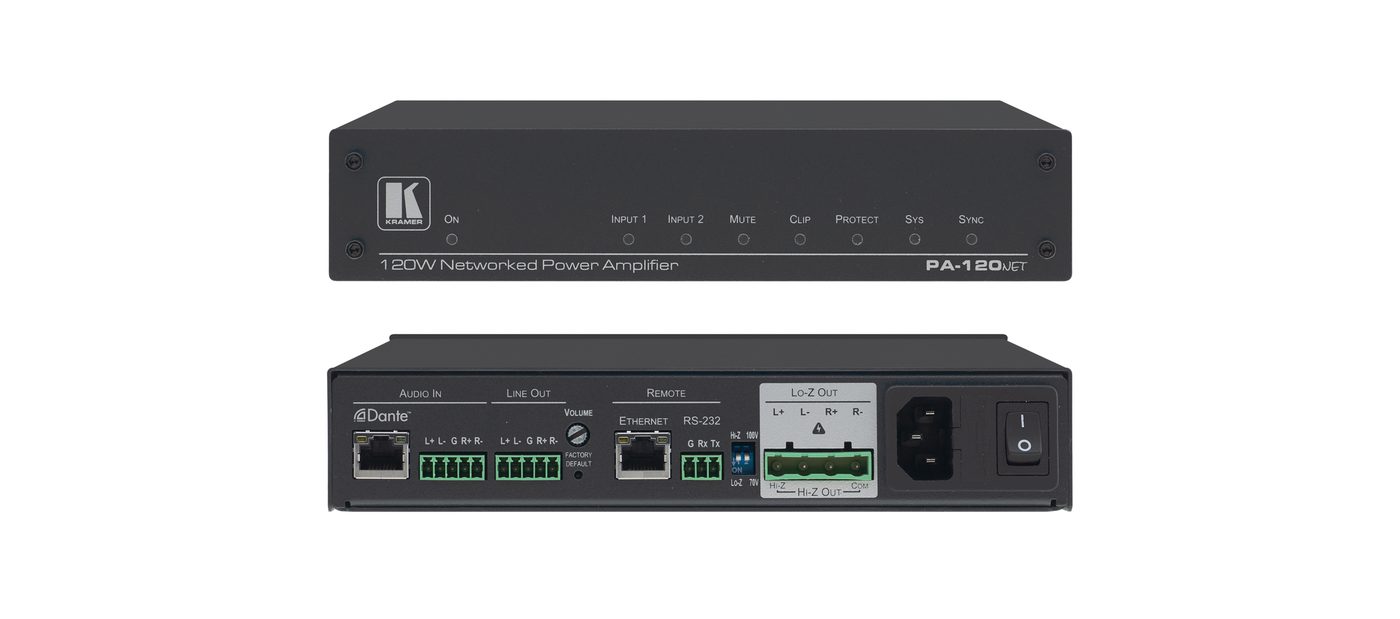

Kramer PA-120NET 120W Networked Power Amplifier

The Kramer PA-120NET is a 120W networked power amplifier, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: On an RJ-45 connector (inputs - 2 channels, on a dante net); +4dBu/10k ohm, on a 5 pin terminal block (inputs - 1 balanced stereo audio); Line level, on a 5-pin terminal block (outputs - 1 balanced stereo audio). Also: On a 4-pin large terminal block (outputs - 1 speaker); On an RJ-45 connector (ports - 1 control via ip); On a 3-pin terminal block (ports - 1 rs-232); Full power @ 0.3V (-10dBV) (amplifier - input sensitivity); 2 x 60W @ 4 ohm or 8 ohm, 1 x 120W @ 70V or 100V (amplifier - output power).

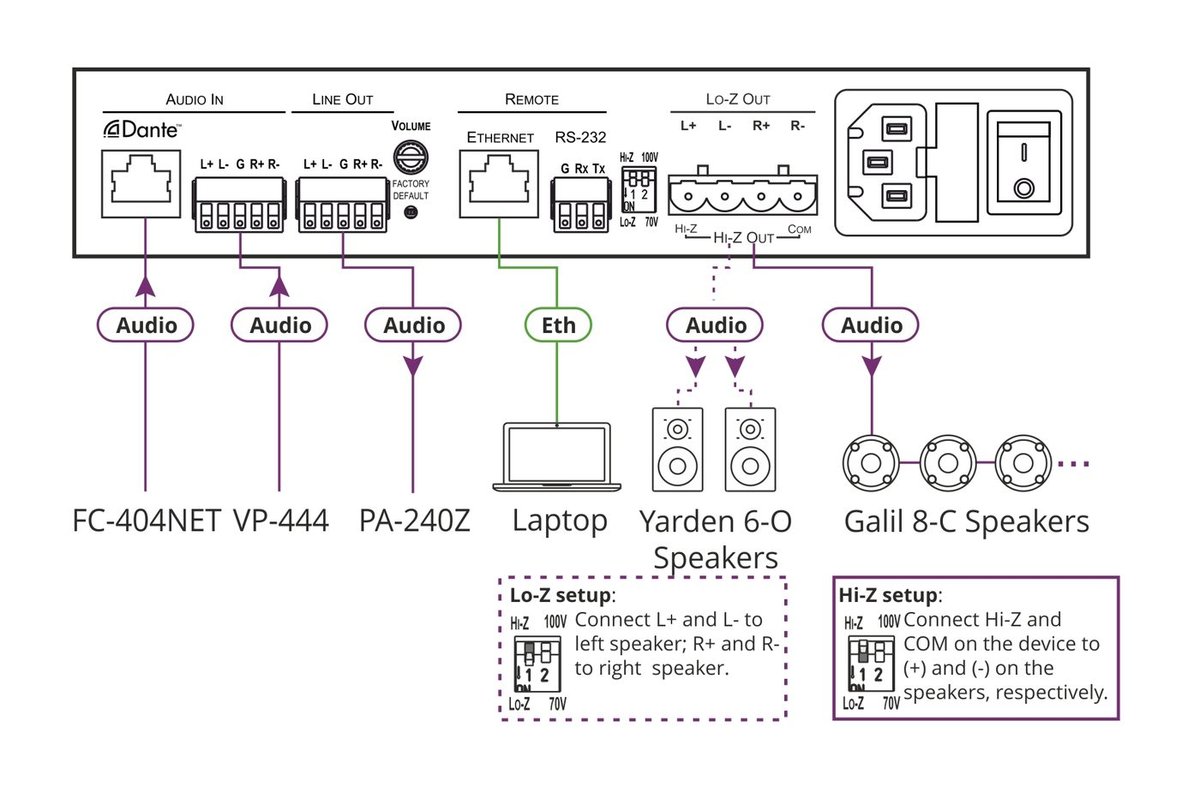

Inputs - 2 Channels, on a Dante Net	On an RJ-45 connector
Inputs - 1 Balanced Stereo Audio	+4dBu/10k ohm, on a 5 pin terminal block
Outputs - 1 Balanced Stereo Audio	Line level, on a 5-pin terminal block
Outputs - 1 Speaker	On a 4-pin large terminal block
Ports - 1 Control via IP	On an RJ-45 connector
Ports - 1 RS-232	On a 3-pin terminal block
Amplifier - Input Sensitivity	Full power @ 0.3V (-10dBV)
Amplifier - Output Power	2 x 60W @ 4 ohm or 8 ohm, 1 x 120W @ 70V or 100V
