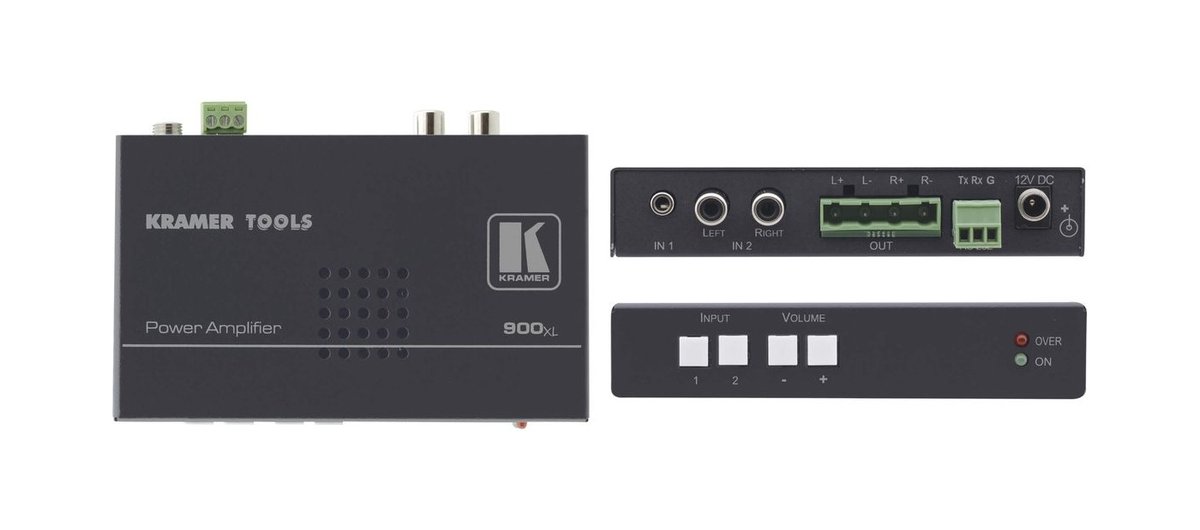

Kramer 900XL Stereo Power Amplifier (10 Watts per Channel)

The Kramer 900XL is a stereo power amplifier (10 watts per channel), sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: 1 unbalanced stereo audio on a 3.5mm mini jack connector, 1 unbalanced stereo audio on RCA connectors (inputs); 1 stereo differential speaker output (output); 2x10W (4 ohm) (output power). Also: 460mV (input sensitivity); 2x40W (4 ohm) (output music power); 25kHz; 85dB @1kHz, 0dBu output (s/n ratio); Gain range: - 14 to +32dB at high-gain; - 21 to +20dB at low-gain (controls).

INPUTS	1 unbalanced stereo audio on a 3.5mm mini jack connector, 1 unbalanced stereo audio on RCA connectors
OUTPUT	1 stereo differential speaker output
OUTPUT POWER	2x10W (4 ohm)
INPUT SENSITIVITY	460mV
OUTPUT MUSIC POWER	2x40W (4 ohm)
BANDWIDTH (-3dB)	25kHz
S/N RATIO	85dB @1kHz, 0dBu output
CONTROLS	Gain range: - 14 to +32dB at high-gain; - 21 to +20dB at low-gain
