JBL Professional JBL 705P Bi-amplified master reference monitor

The 705P is a self-powered reference monitor for tracking, film post and broadcast. It uses the same driver technology and Image Control Waveguide as the 708P and the flagship M2, in a much smaller box: a 725G 5-inch woofer and a 2409H compression driver crossed at 1.9 kHz, on 250 W of Class D power.

Response is 45 Hz to 25 kHz within 3 dB with a range out to 36 kHz, and continuous output exceeds 101 dB at one metre - well above what a 5-inch monitor normally manages. There is a balanced analogue XLR input and an AES3 digital XLR input with a pass-through output. The birch plywood cabinet is reinforced with top, bottom and rear mounting points.

Type	Bi-amplified master reference monitor
Transducers	725G 5-inch (127 mm) woofer; 2409H compression driver
Amplifier power	250 W Class D
Frequency response (+/-3 dB)	45 Hz - 25 kHz
Frequency range	39 Hz - 36 kHz
Maximum continuous SPL	greater than 101 dB SPL / 1 m (80 Hz - 20 kHz)
Maximum peak SPL	greater than 107 dB SPL / 1 m (80 Hz - 20 kHz)
Crossover frequency	1.9 kHz

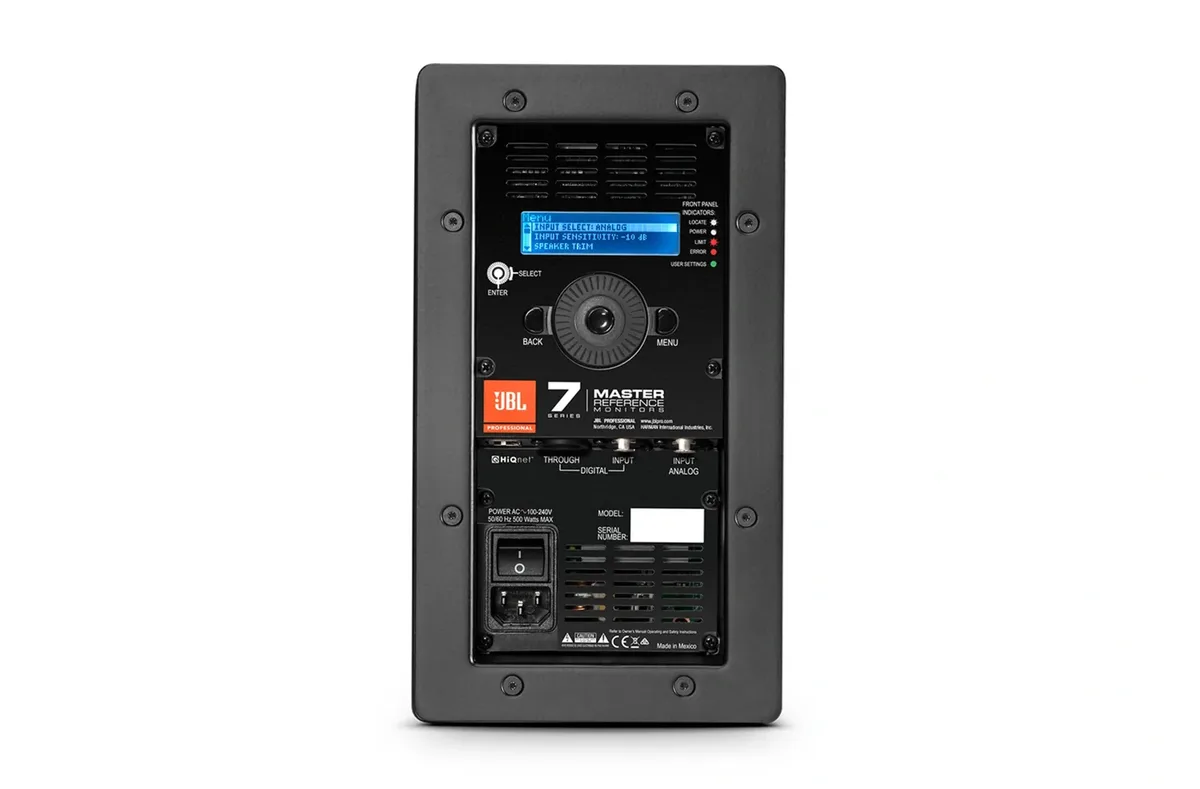

Input connectors	1 x XLR balanced analogue; 1 x XLR AES3 digital with XLR pass-through
Enclosure	Birch plywood, reinforced for mounting
Mounting	Top, bottom and rear mounting points, 2-hole pattern
Dimensions (H x W x D)	268 x 151 x 274 mm (10.56 x 5.94 x 10.80 in)
Net weight (each)	5.68 kg (12.5 lb)
