JBL Control 2PM (Host Only) Compact Powered Reference Monitor
The C2PM is a Control 2P (Host only). The low-frequency section uses 5.25in (135 mm). Transducers are LF: 135 mm (5.25 in) low frequency loudspeaker HF: 19 mm (.75 in) Polycarbonate dome tweeter. Nominal coverage is 120 degrees H x 120 degrees V. Frequency range is 80 Hz - 20 kHz. Maximum SPL at 1 m is 111 dB.

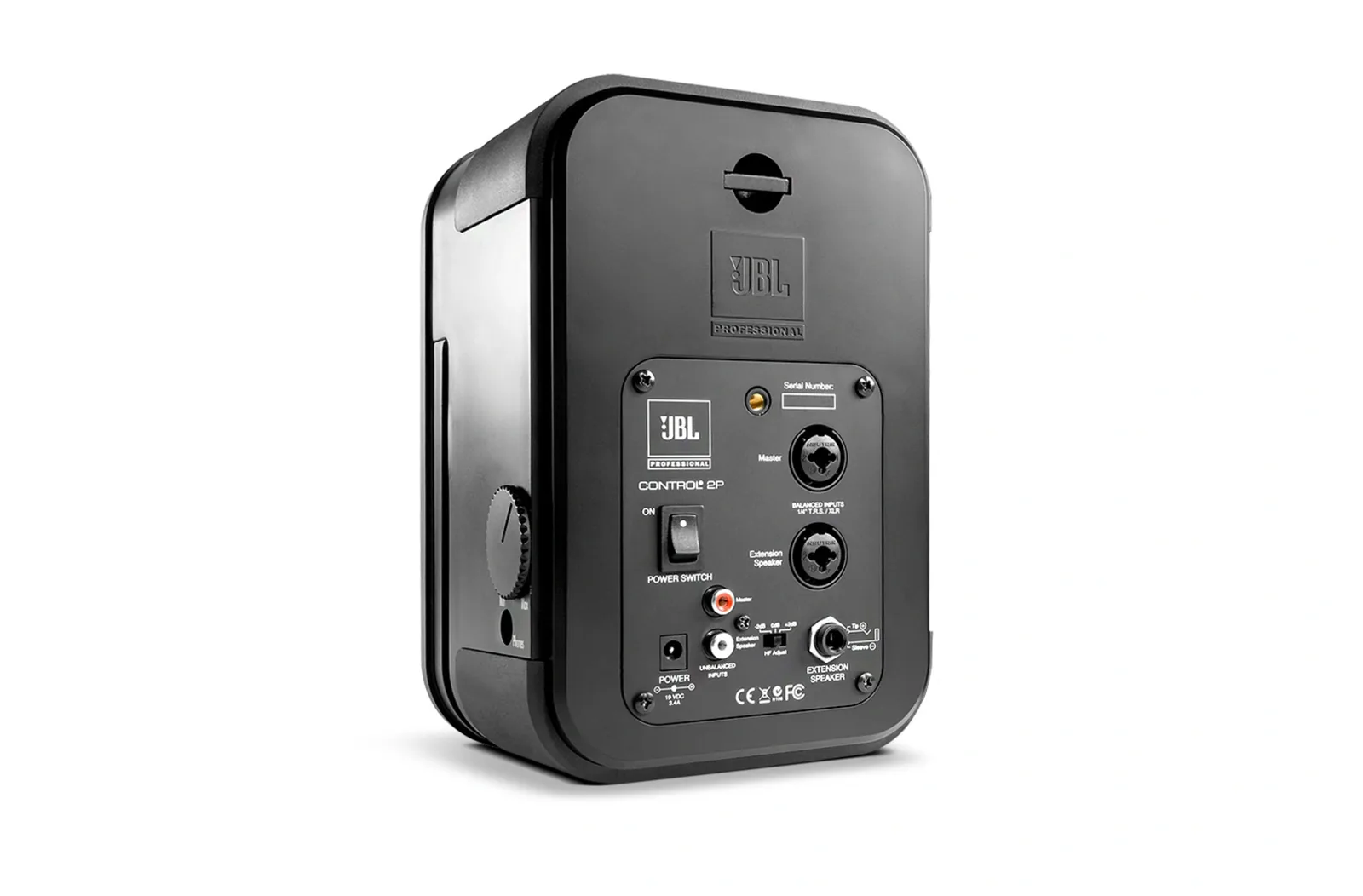

The enclosure is Polypropylene Structural Foam. The grille is Zinc-plated steel. Connections are Balanced Neutrik* Combo XLR 1/4" TRS; Unbalanced RCA. It measures 235 x 159 x 143 mm (9.3 x 6.3 x 5.6 in). Net weight is 2.6 kg (5.5 lb). In the box: Speaker wire, power supply, 2 snap-on pedestals.
| Type | Control 2P (Host Only) |
|---|---|
| Drivers | LF: 135 mm (5.25 in) low frequency loudspeaker HF: 19 mm (.75 in) Polycarbonate dome tweeter |
| Frequency Range | 80 Hz - 20 kHz |
| Amplifier Power Rating | 35 Watts |
| Maximum SPL (1m) | 111 dB |
| Crossover Frequency | 4.2 kHz |
| Input Sensitivity | +4 dBu XLR 1/4"; 0 dBu RCA |
| Input Connectors | Balanced Neutrik* Combo XLR 1/4" TRS; Unbalanced RCA |
| Power Requirements | 19 VDC / 3.42 A - use only supplied power supply |
