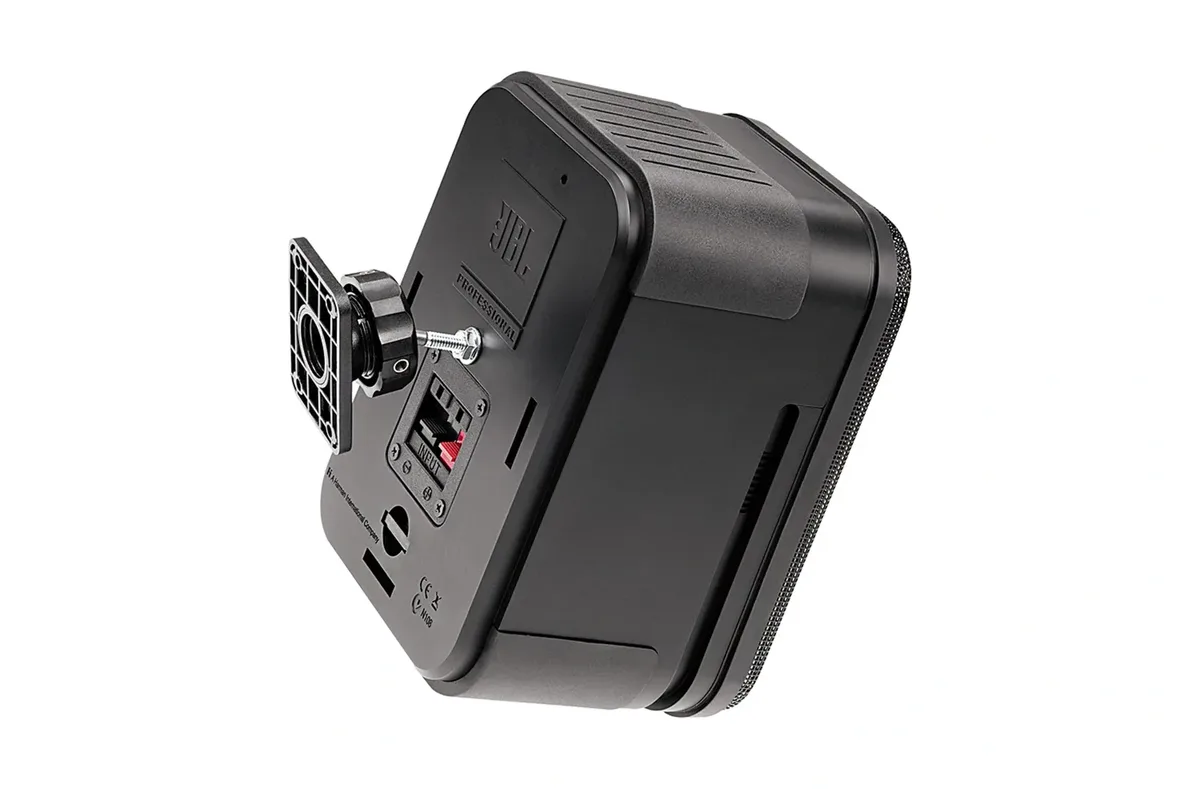

JBL C2PS

The C2PS is a Control 2P (Stereo pair). The low-frequency section uses 5.25in (135mm). Transducers are LF: 135 mm (5.25 in) low frequency loudspeaker HF: 19 mm (.75 in) Polycarbonate dome tweeter. Nominal coverage is 120 degrees H x 120 degrees V. Frequency range is 80 Hz - 20 kHz. Maximum SPL at 1 m is 115 dB per pair.

The enclosure is Polypropylene Structural Foam. The grille is Zinc-plated steel. Connections are Balanced Neutrik* Combo XLR 1/4" TRS; Unbalanced RCA. It measures 235 x 159 x 143 mm (9.3 x 6.3 x 5.6 in). Net weight is 4.8 kg (10 lb). In the box: Speaker wire, power supply, 2 snap-on pedestals.

TypeControl 2P (Stereo Pair)
DriversLF: 135 mm (5.25 in) low frequency loudspeaker HF: 19 mm (.75 in) Polycarbonate dome tweeter
Frequency Range80 Hz - 20 kHz
Amplifier Power Rating35 Watts per channel
Maximum SPL (1m)115 dB per pair
Crossover Frequency4.2 kHz
Input Sensitivity+4 dBu XLR 1/4"; 0 dBu RCA
Input ConnectorsBalanced Neutrik* Combo XLR 1/4" TRS; Unbalanced RCA
Power Requirements19 VDC / 3.42 A - use only supplied power supply
