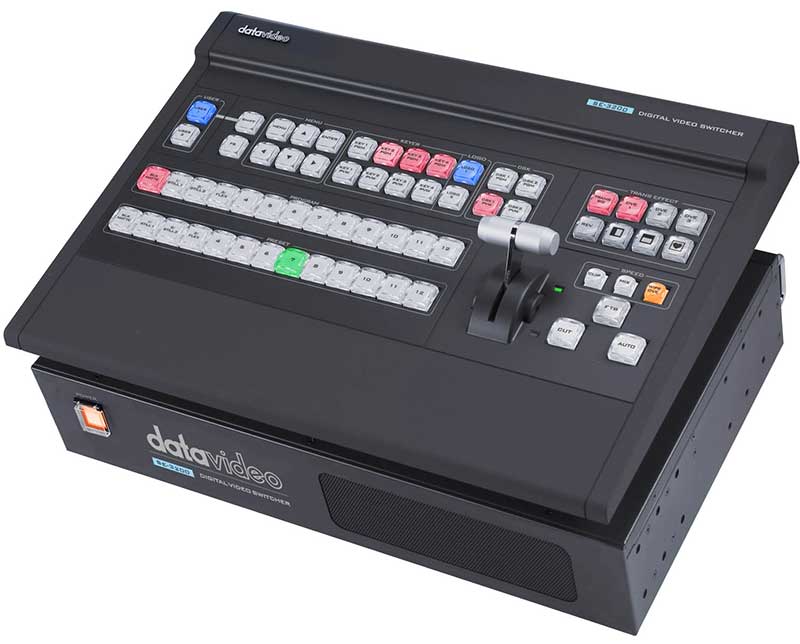

Datavideo SE-3200 Switcher

12 input 1080p video switcher with scaling on each available input
8 HD-SDI and 4 HDMI inputs
Outputs include 3 configurable HDMI and 6 HD-SDI.
4 Chromakeyers for a complete virtual studio experience
Custom Multiview layout & dual Multiview output

$5499.00

FREE UPS SHIPPING

Datavideo SE-3200 Switcher

12 input 1080p video switcher with scaling on each available input
8 HD-SDI and 4 HDMI inputs
Outputs include 3 configurable HDMI and 6 HD-SDI.
4 Chromakeyers for a complete virtual studio experience
Custom Multiview layout & dual Multiview output

$5499.00 FREE UPS SHIPPING

Description
Features

SE-3200 Description

The SE-3200 is a professional 12-channel, 1080p video switcher that provides powerful and easy-to-use video effects such as four upstream keyers for Chromakey and Luma Key, dual DSK, PIP, and WIPE transitions. There are also other features like frame store, animated transition effects, multi-channel inputs, and abundant visual effects. The built-in subtitle generation system can be paired with Datavideo's CG software to instantly create broadcast quality subtitles.

The SE-3200's modular design allows you to install the 2U main unit on a standard 19-inch rack and place the control panel on a flat work bench, or it can be installed in an outdoor broadcast van. The SE-3200 facilitates video switching, whether indoor or outdoor.

SE-3200 Spec Sheet

Features

12 Video Input Channels: 8 x SDI and 4 x HDMI
9 Video Output Channels: 6 x SDI and 3 x HDMI
4 Upstream Keys for chromakey, linear and luma keys as well as picture-in-picture
8 Picture-in-Picture (4 flex source included), with configurable ratio, position and size
2 Downstream Keyers for linear and luma keys
2 static or animated logos with configurable position and size
WIPE, MIX, DVE and CUT transitions
32 WIPE patterns such as circle and heart with adjustable border width and color softness
Supports stinger transition for live sports broadcast
Any input (1-12) can be used as a frame store
Supports XPT (Cross Point Assignment)
4 XLR analogue audio input channels with each channel carrying four audio tracks
2 XLR de-embedded analogue audio output channels
Dual color (red/green) tally outputs
Supports Tri-Level and Black Burst sync reference
2 readily available user memory presets
