Datavideo TLM-170V

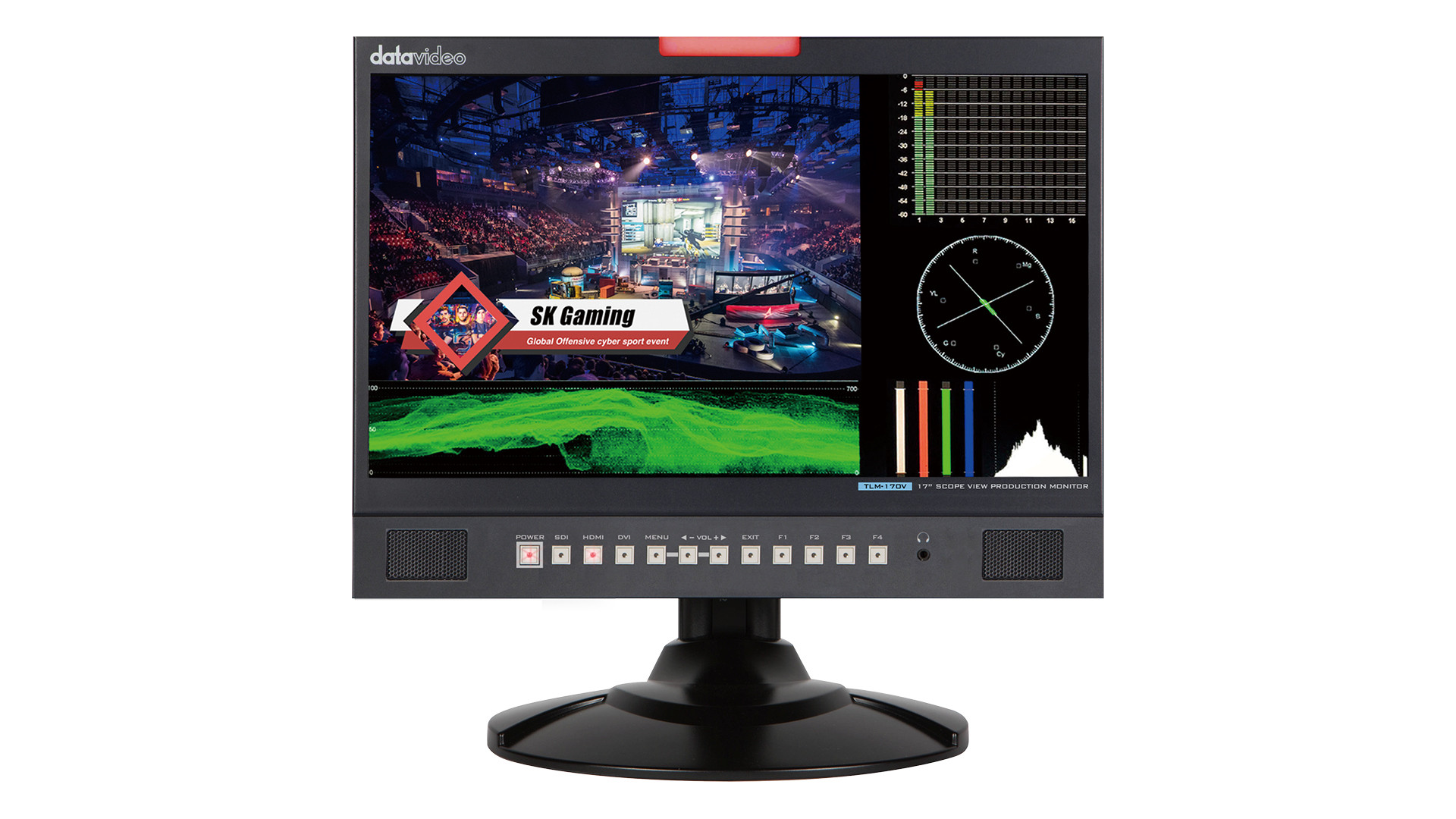

The TLM-170V is a 17 inch Full HD desktop production monitor built around a 1920x1080 IPS panel, made for the switcher operator, shader, or DIT who needs an accurate picture and the instruments to trust it. Beyond a clean image it carries a full ScopeView tool set: waveform, vectorscope, a YRGB column display, and an audio level meter, plus peaking, pixel-to-pixel, zoom, underscan, and check-field, so you can judge focus, exposure, color, and framing without a separate scope box.

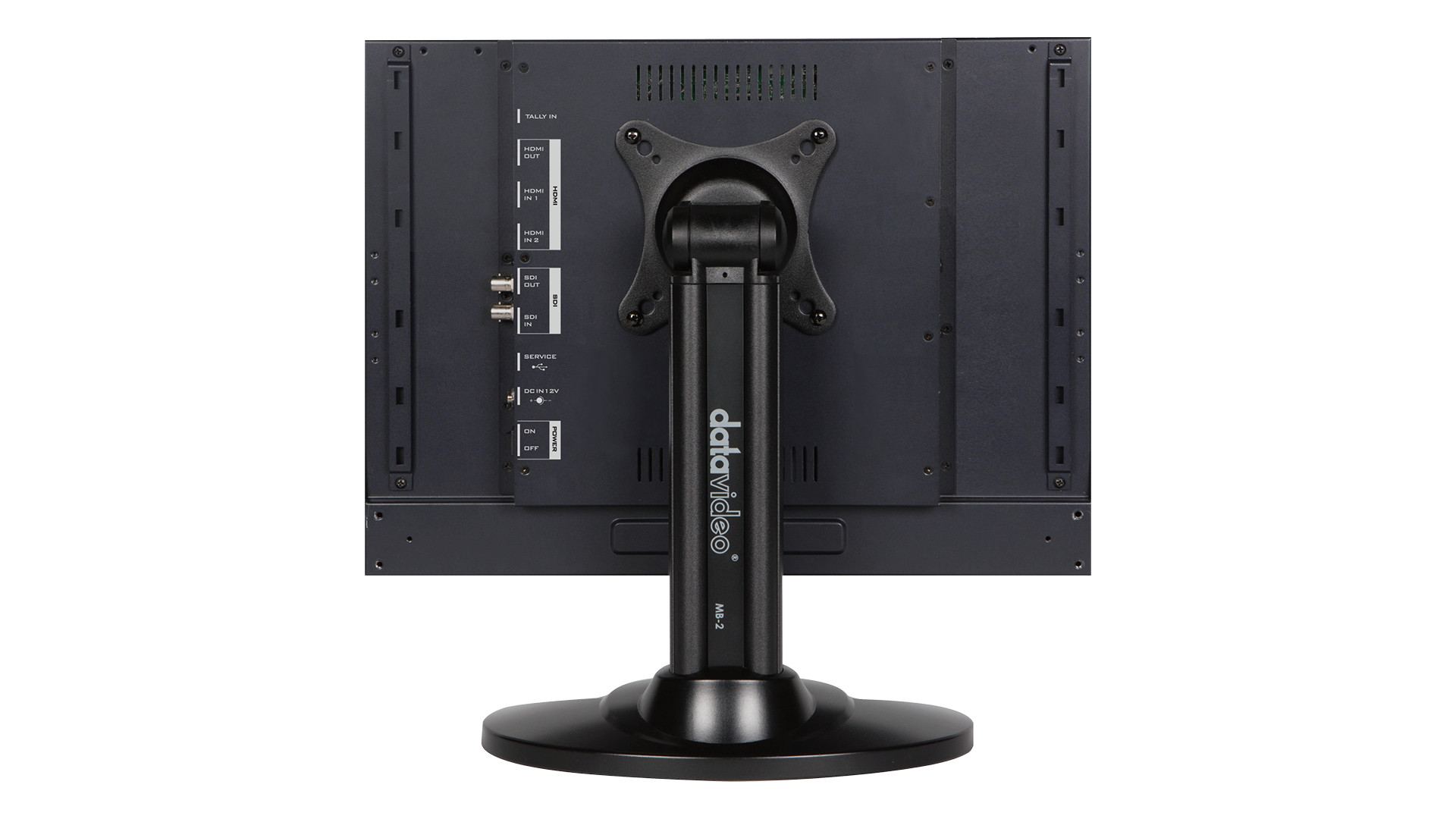

One 3G/HD/SD-SDI and two HDMI inputs feed the monitor, with a 3G/HD/SD-SDI and an HDMI loop-through to pass signal on down the chain, and the unit cross-converts between SDI and HDMI so mixed sources land on one screen. Time code overlay and a built-in tally light round it out for live multi-camera work at the desk.
