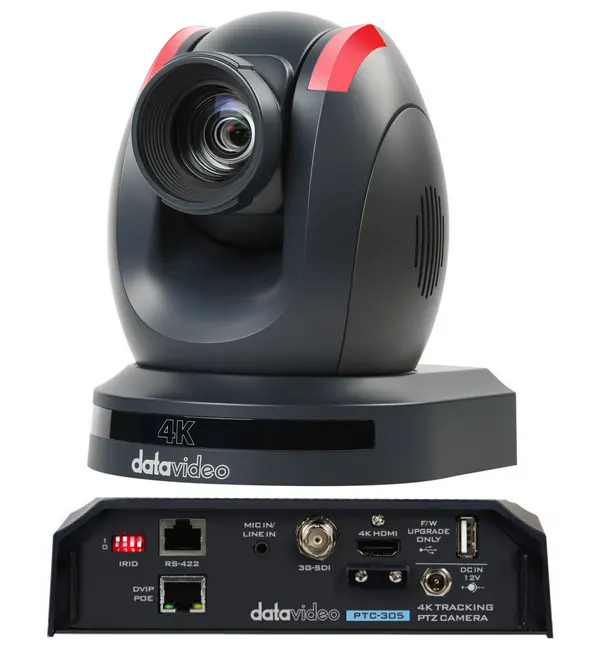

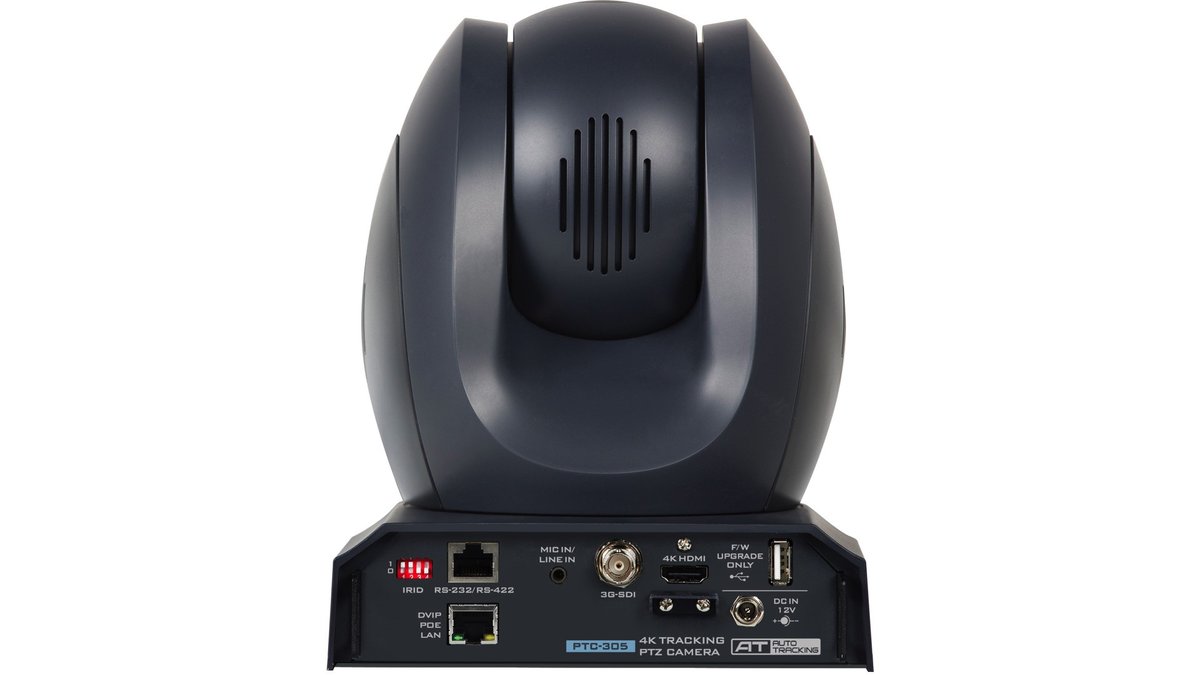

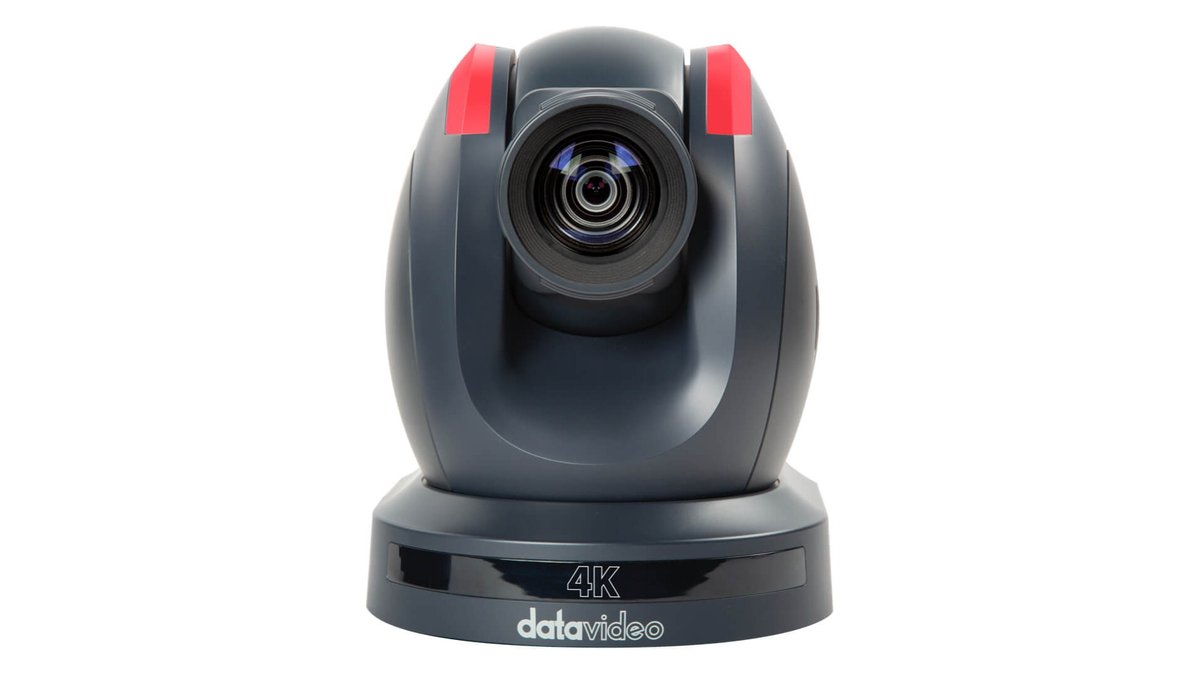

Datavideo PTC-305 4K Tracking PTZ Camera

The PTC-305 is a broadcast-grade 4K PTZ camera with built-in auto tracking, finished in black for stages and studios where the camera should recede. A 1/1.8 inch CMOS sensor and a 20x optical zoom (16x digital) behind an f1.58 lens reach deep into a room, and the auto-tracking engine keeps a moving presenter framed without an operator on the sticks. It outputs over HDMI 2.0 and IP up to 2160p 50/60 and 3G-SDI up to 1080p 60/50 at the same time, and carries NDI|HX for clean single-cable IP production.

Control runs over RS-422 serial or IP using Datavideo's DVIP protocol or Sony VISCA over IP, and ONVIF Profile S compliance drops it into standard network video systems. Power over Ethernet means one CAT cable handles data and power. This configuration includes the RMC-1AT auto-tracking controller, which can steer up to four PTC-305 cameras from one panel.

Type	4K auto-tracking PTZ camera, black finish
Sensor	1/1.8 inch CMOS
Zoom	20x optical, 16x digital, f1.58
Outputs	HDMI 2.0 and IP up to 2160p 50/60; 3G-SDI up to 1080p 60/50
IP / NDI	NDI\|HX, ONVIF Profile S
Control	RS-422 serial, DVIP, Sony VISCA over IP
Power	PoE (single CAT cable)
Included	RMC-1AT auto-tracking controller (up to 4 cameras)
