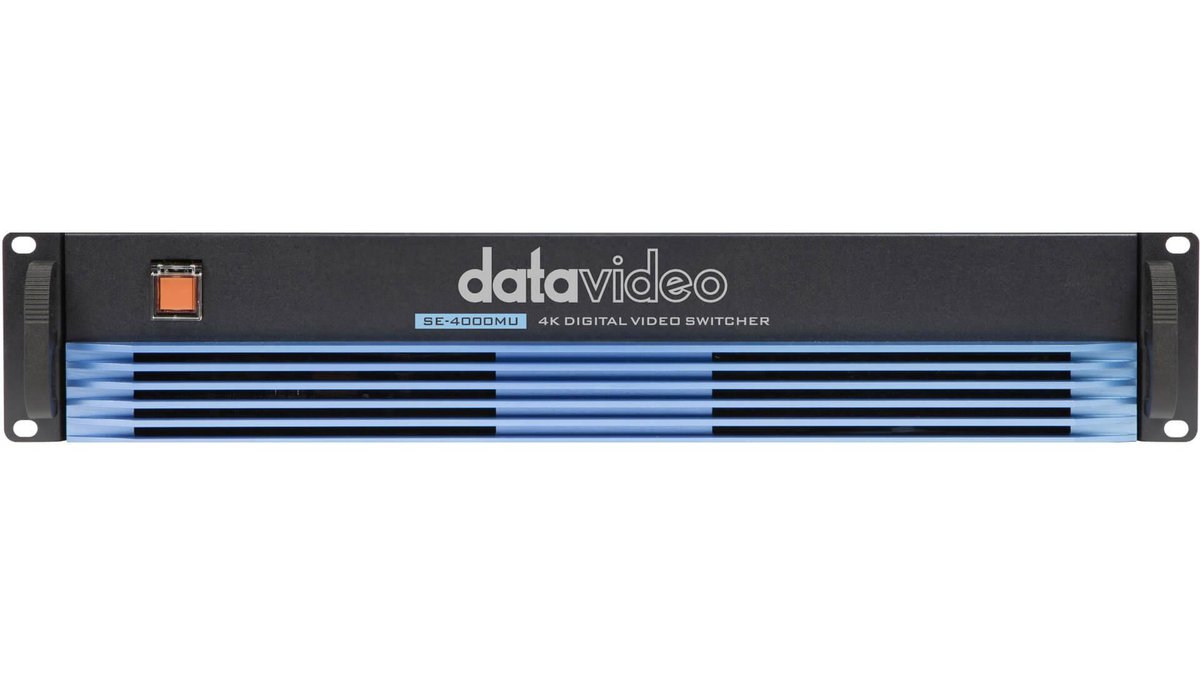

Datavideo SE-4000MU 4K 8-Channel Rack Mountable Digital Video Switcher

The SE-4000MU is the 4K rack frame in the range. Twelve sources connect, eight 12G-SDI and four HDMI, and any eight of those twelve can be live at a time, which is a practical way to leave a graphics machine and a spare camera permanently wired without giving up a channel.

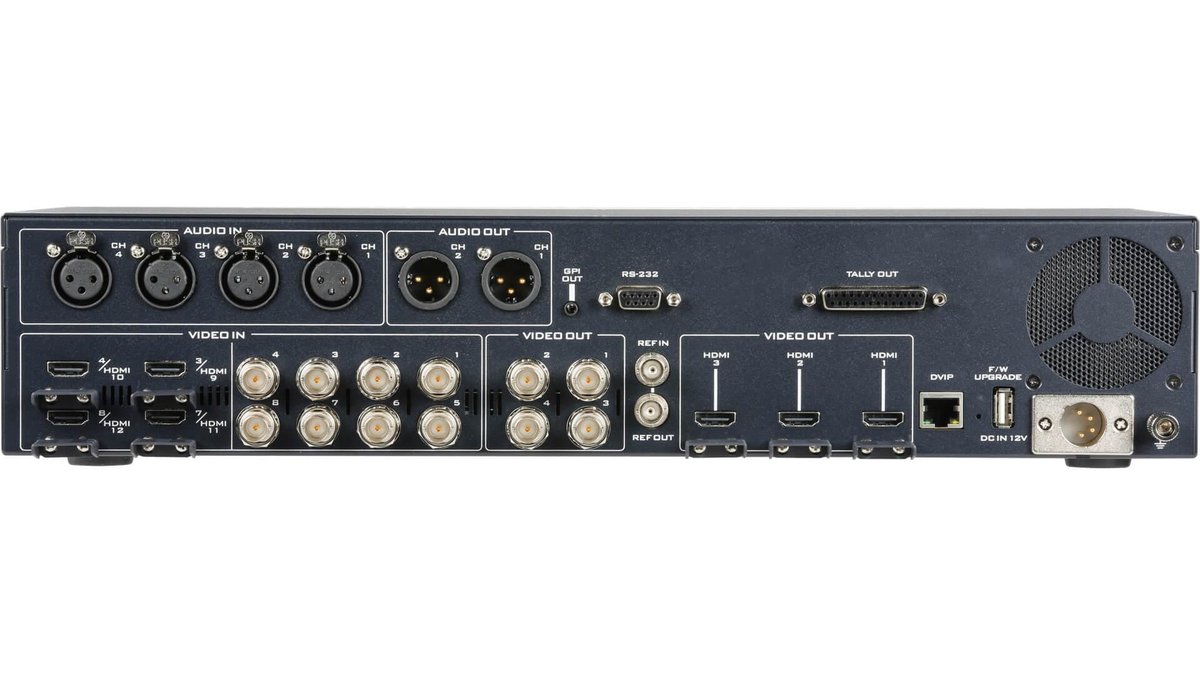

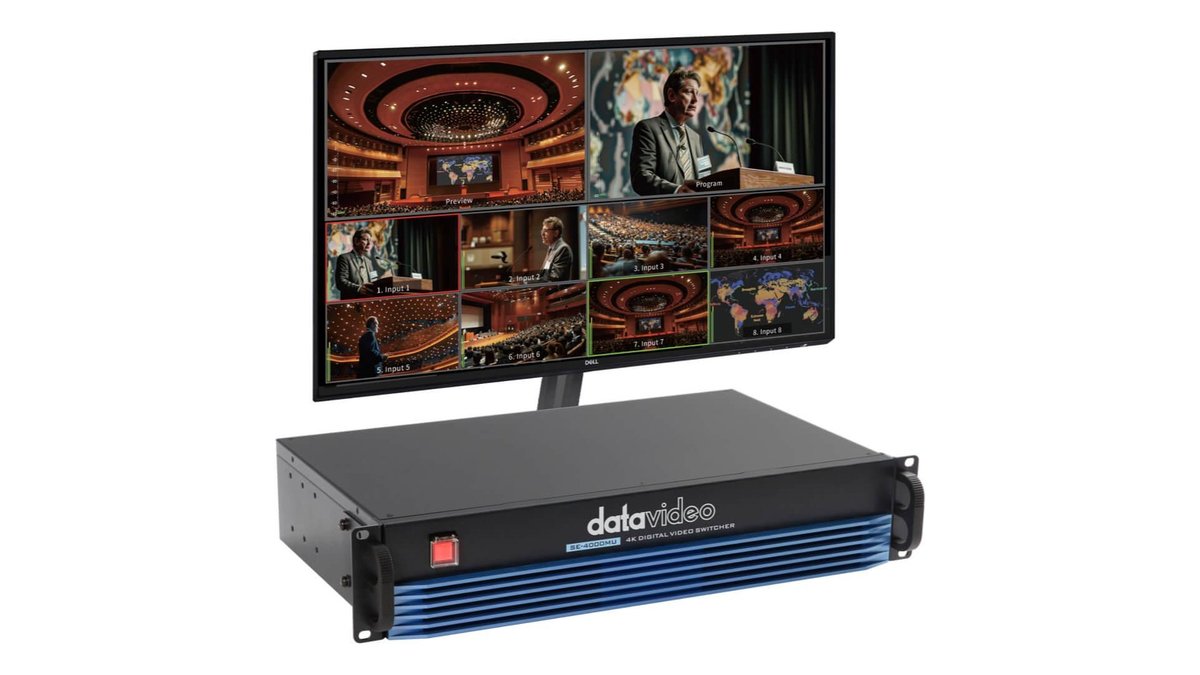

Outputs are four 12G-SDI and three HDMI, all assignable to multiview, PGM, PVW, PGM with downstream key, clean PGM, clean PVW or any individual input. Input formats run to 3840x2160p60, and processing is 10-bit throughout: SDI at 4:2:2 10-bit and HDMI at YUV 4:2:2 10-bit or RGB 4:4:4 in 8 or 10-bit. Four of the HDMI inputs double as computer graphic feeds.
