Datavideo SE-650 4-Channel HD Video Switcher

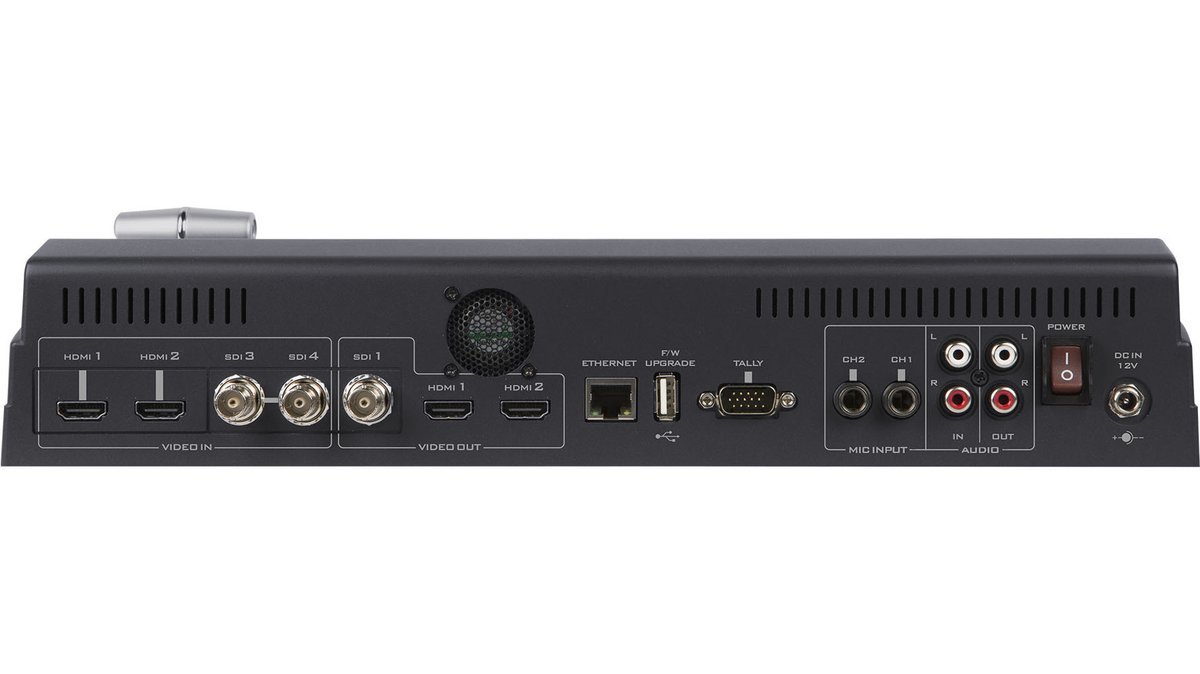

The SE-650 is a four-channel HD video switcher with a built-in six-channel audio mixer, taking two HD-SDI and two HDMI inputs up to 1080i. The output section is user-assignable, so you decide which port carries the multiview and which carry the program feed on HD-SDI and HDMI.

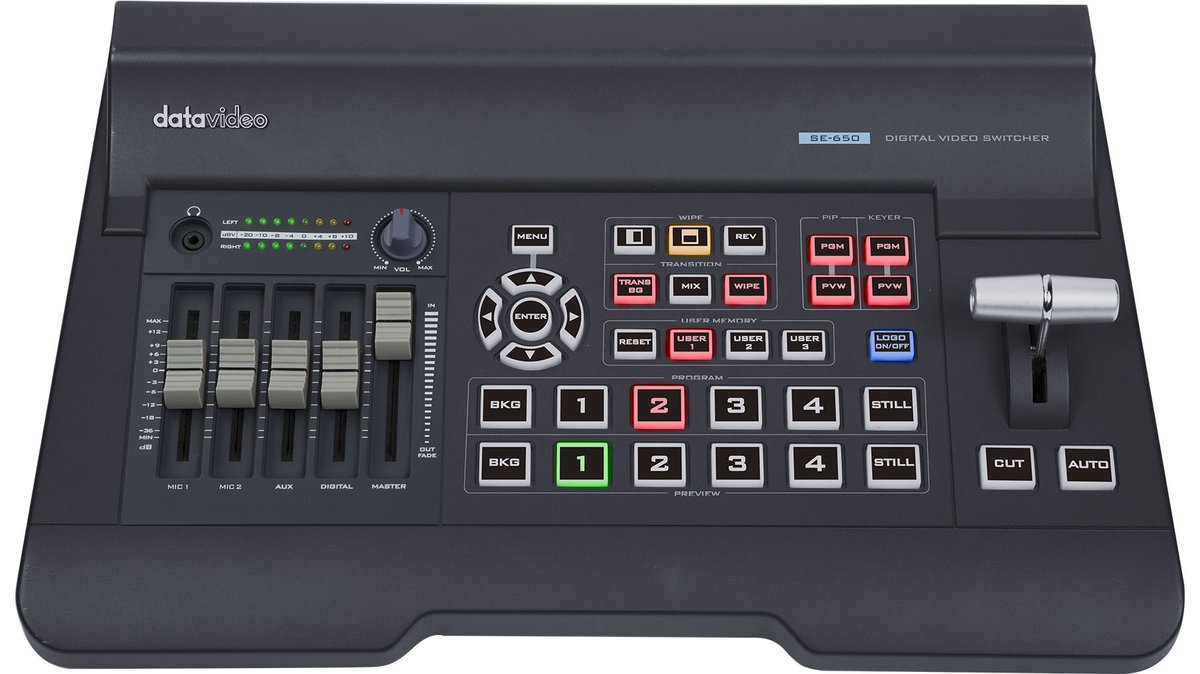

Live tools include upstream and downstream keyers, picture-in-picture, chroma and luma keys, a wipe generator, still store, and logo insertion, with a tally output for cueing cameras. The unibody chassis runs on 12V DC at 29W, weighs 1.9 kg, and measures 400 x 250 x 82 mm.
