BZBGear BG-USB-LR100 2-Port USB 2.0 Extender over Cat5e/6/7

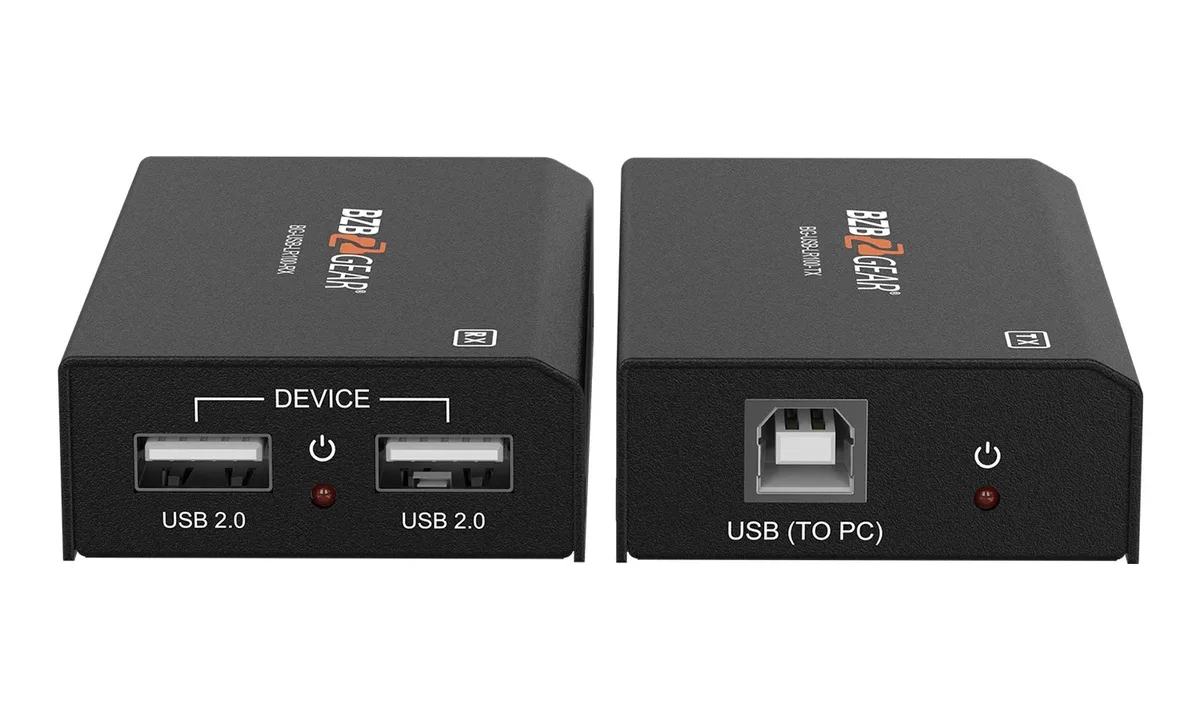

The BG-USB-LR100 extends a computer's USB 2.0 port to 100 m over a single category cable at up to 480 Mbps. The receiver presents two USB-A ports, so a camera and a keypad, or a printer and a touch panel, can live at the far end without a hub.

It is aimed at the fixed installation where a device has to sit well beyond the 5 m a USB cable manages: a door keypad, a lectern camera, a signage player. The power supply locks so it cannot be knocked out, both halves are metal at 82 mm wide, and the pair draws under 4W between them.

Transmission rateUp to 480Mbps
Transmission distance100M (328ft)
Power SupplyInput: AC100~240V 50/60Hz, Output: DC 12V/1A
Power ConsumptionTransmitter: 1.3W, Receiver: 2.3W
DimensionsTransmitter / Receiver: 3.2" (W) x 1.9" (D) x 0.8" (H) [82mm (W) x 49mm (D) x 20mm (H)]
WeightTransmitter / Receiver: 0.22lbs [l00g]
USB protocolUSB 2.0
TransmitterInput port: 1xUSB [USB-B, female] Output port: 1xCAT [RJ45, female]
Unlocking USB Possibilities Extend, Connect, & Thrive - BG-USB-LR100
