BZBGear BG-IPGEAR-ULTRA AV over IP Transceiver

The IPGEAR-ULTRA is a transceiver, which means one part number covers both ends of the system: the same box is configured as an encoder or a decoder, so a job is stocked and spared with a single SKU. It carries H.264/H.265 4K60 video on a gigabit network with PoE, and supports seamless matrix switching, video walls, multiview and KVM.

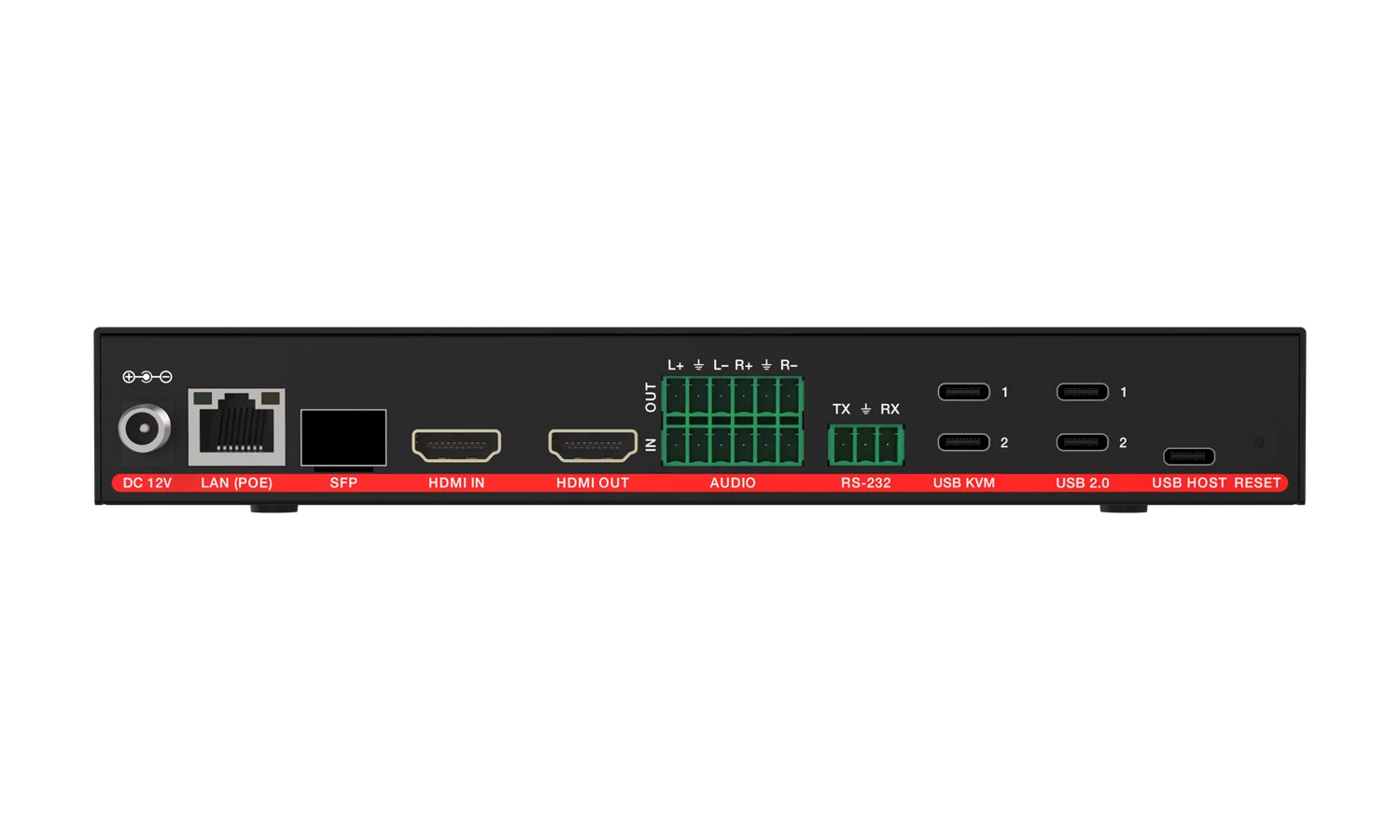

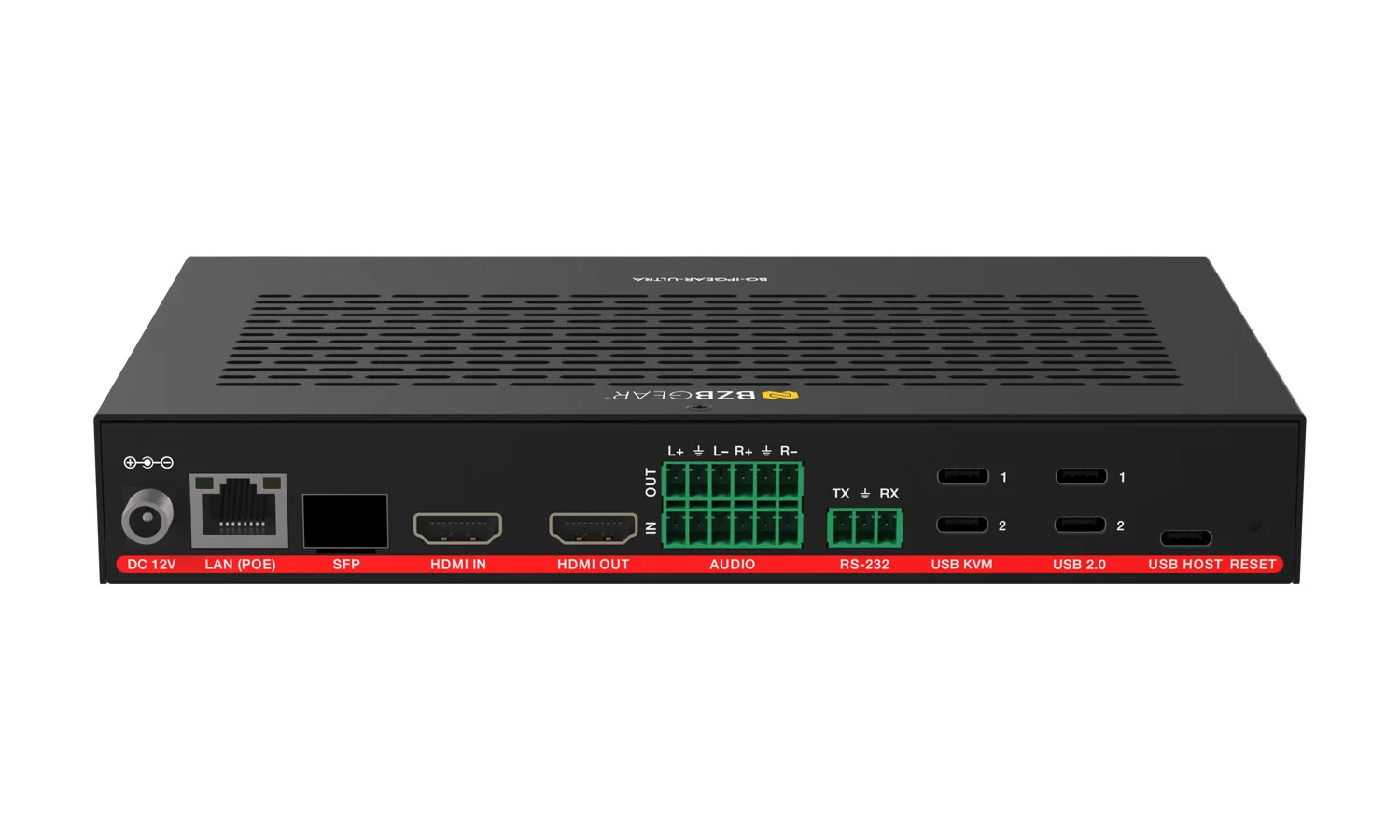

Connections are HDMI in and out, two balanced Phoenix audio inputs and two outputs, RS-232, USB host and KVM ports on Type-C, and an SFP slot for a fibre run where copper will not reach. An IPGEAR-ULTRA-C controller manages the system.

HDMI compliance	HDMI 2.0b
HDCP compliance	HDCP 2.2
Compression	H.264/H.265
Video resolution	1024x768 ~ 3840x2160@60Hz (Note: The decoder supports custom resolution output.)
Video bandwidth	18Gbps
Network port	1000M Base-T (supporting POE)
Inputs	1x HDMI IN [Type A, 19-pin female] 2x AUDIO IN [3-pin phoenix connector, stereo balanced linear interface]
Outputs	1x HDMI OUT [Type A,19-pin female] 2x AUDIO OUT [3-pin phoenix connector, stereo balanced linear interface]
Control and expansion	1x LAN (POE) [RJ45, supporting POE] 1x RS-232 [3-pin phoenix connector] 1x USB HOST [USB Type-C] 2x USB KVM [USB Type-C] 2x USB 2.0 [USB Type-C] 1x SFP [Fiber slot]
Dimensions (W x D x H)	8in x 5.2in x 1.2in [204mm x 132mm x 30mm]
Weight	1.7 lbs [760g]
