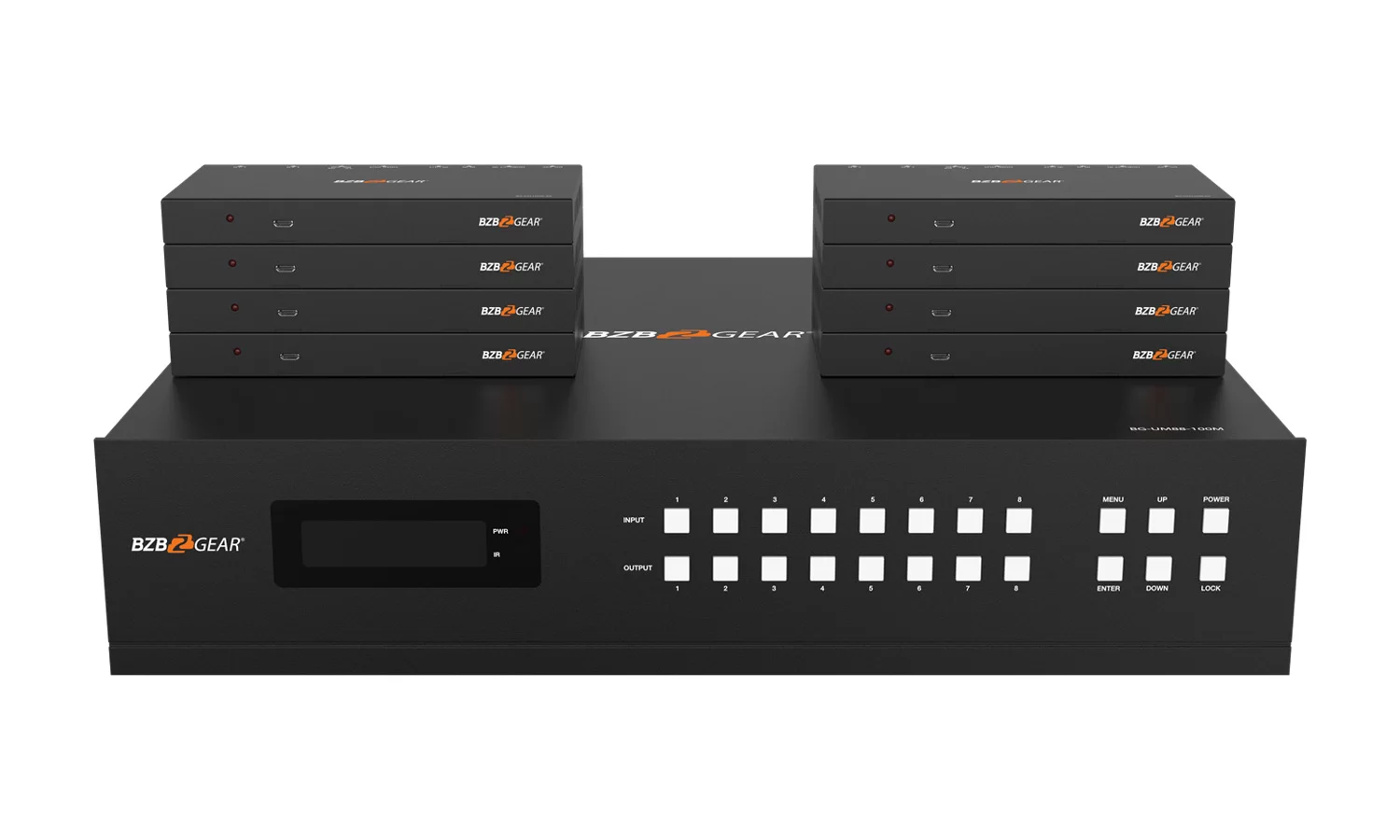

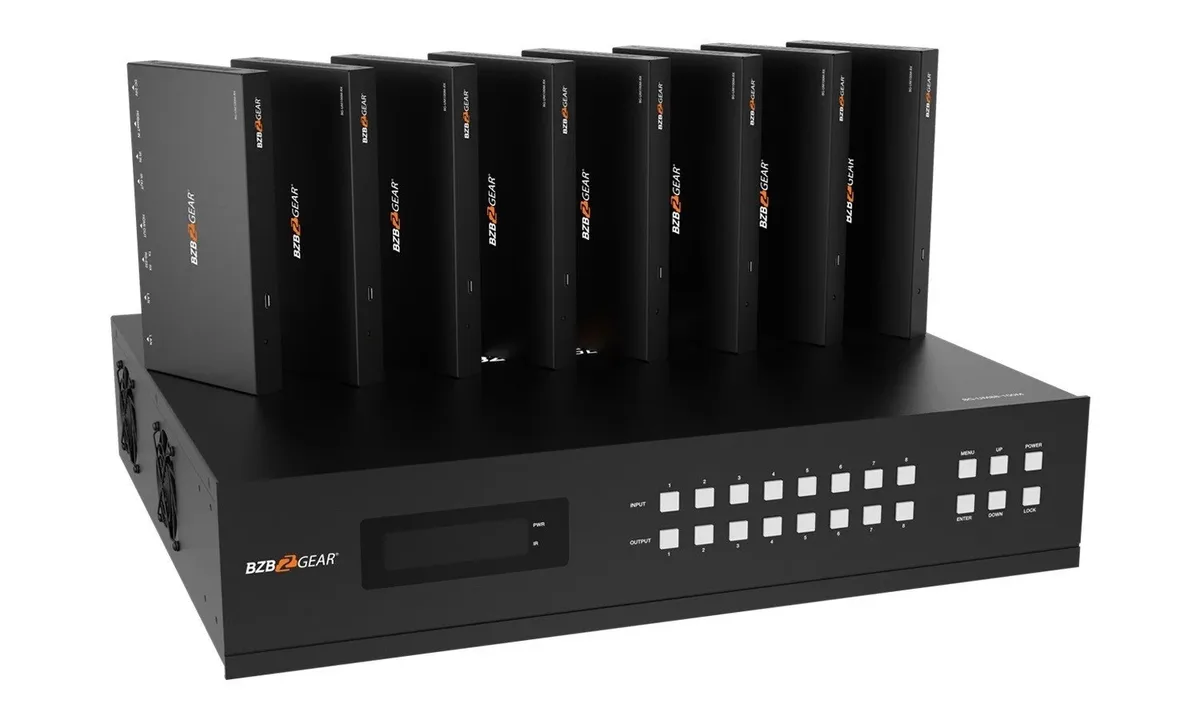

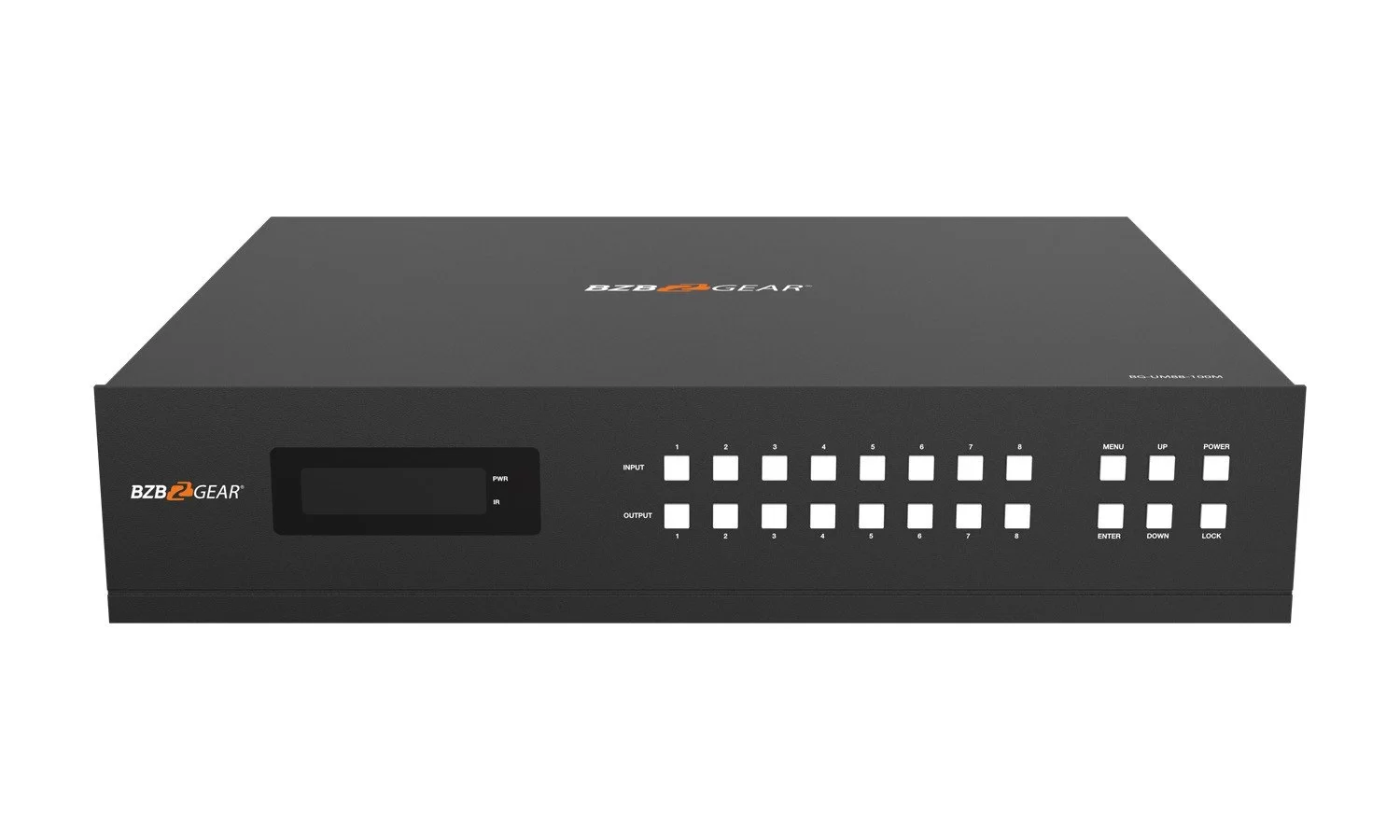

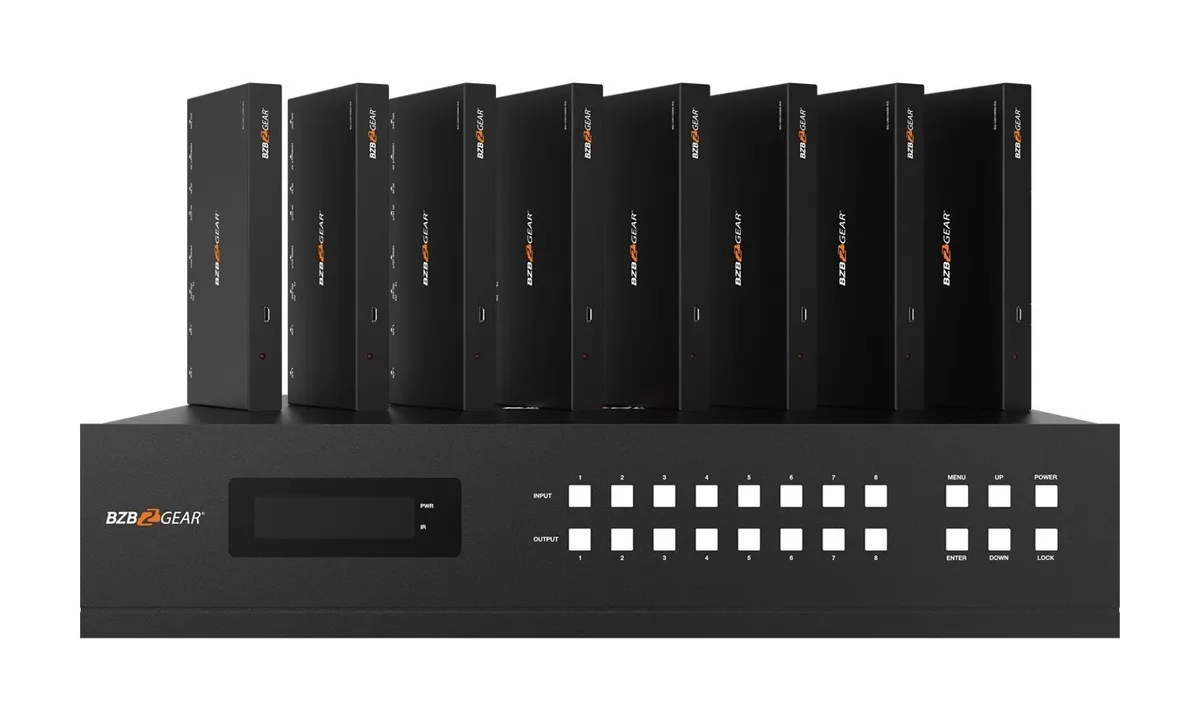

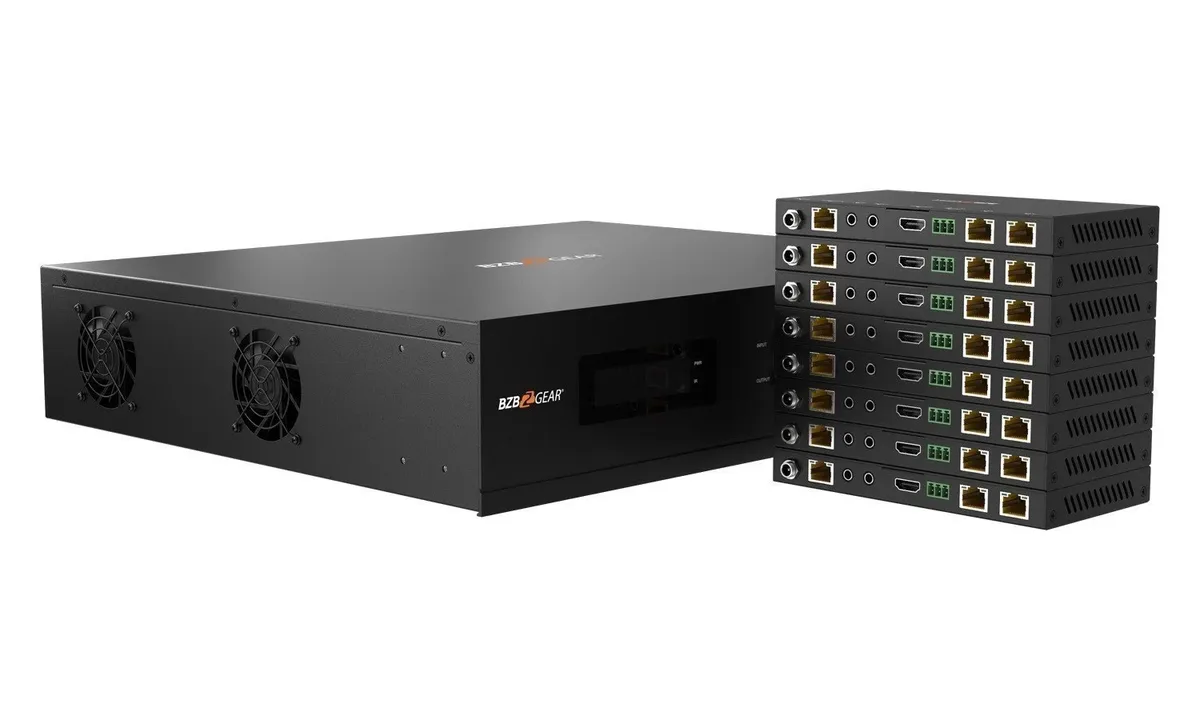

BZBGear BG-UM88-100M-KIT 8x8 HDBaseT Matrix Kit with Eight Receivers

The BG-UM88-100M-KIT is an eight input 4K matrix with eight HDBaseT outputs and eight mirrored HDMI outputs, feeding up to sixteen displays from one frame. HDBaseT carries uncompressed video to 100 m over Cat6 with the eight receivers included.

Ethernet passthrough gives every receiver a network connection off the same cable, bi-directional IR runs in both directions, and the audio matrix routes sound independently of video on coax and analog outputs with ARC support. Video is 4K60 4:4:4 at 18 Gbps with HDCP 2.2, carrying Dolby Vision, HDR10+ and HLG, and control is over TCP/IP or RS-232.
