BZBGear BG-USB3-LR100 4-Port USB 3.0 HDBaseT Extender

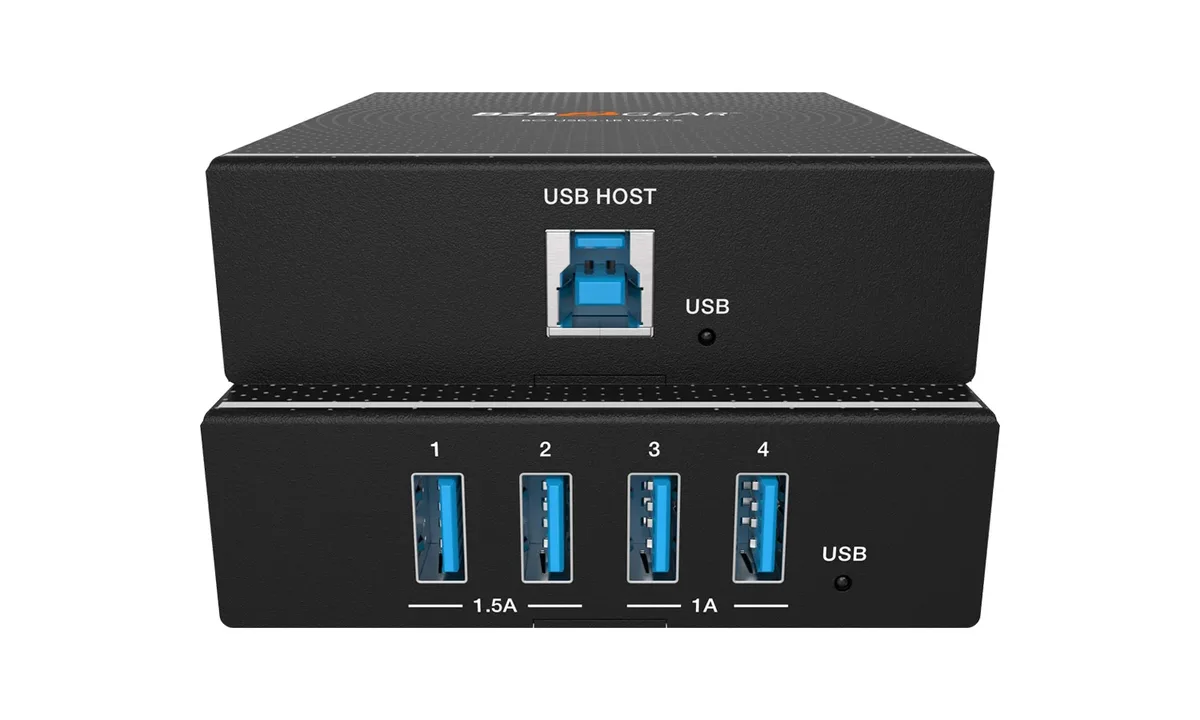

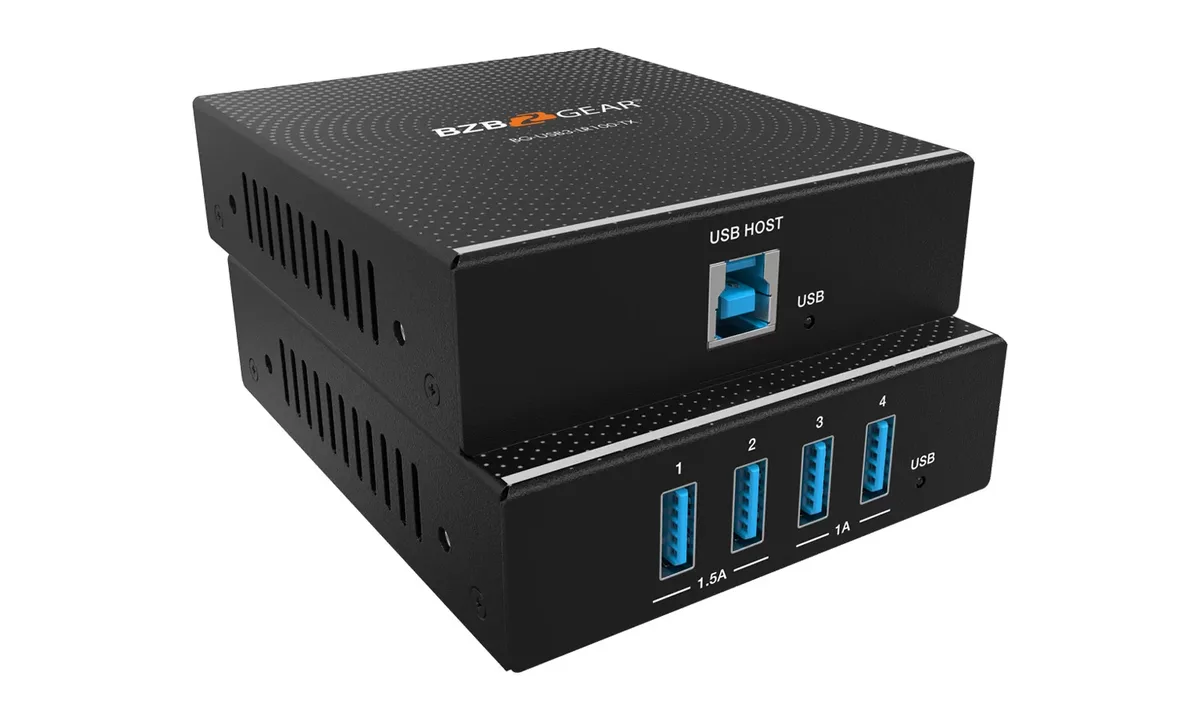

The BG-USB3-LR100 carries USB 3.0 at up to 5 Gbps over a single Cat6a F/FTP cable to 100 m, presenting four USB 3.0 Type-A ports at the receiver. It is backward compatible with slower USB devices on the same run.

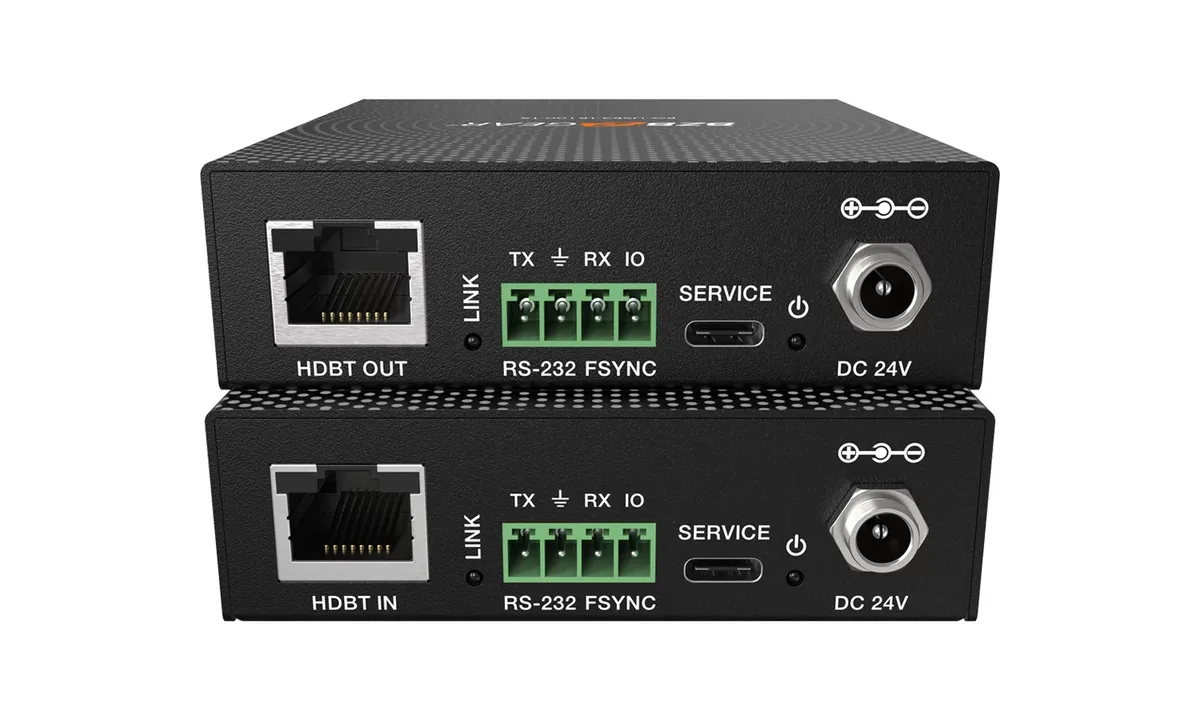

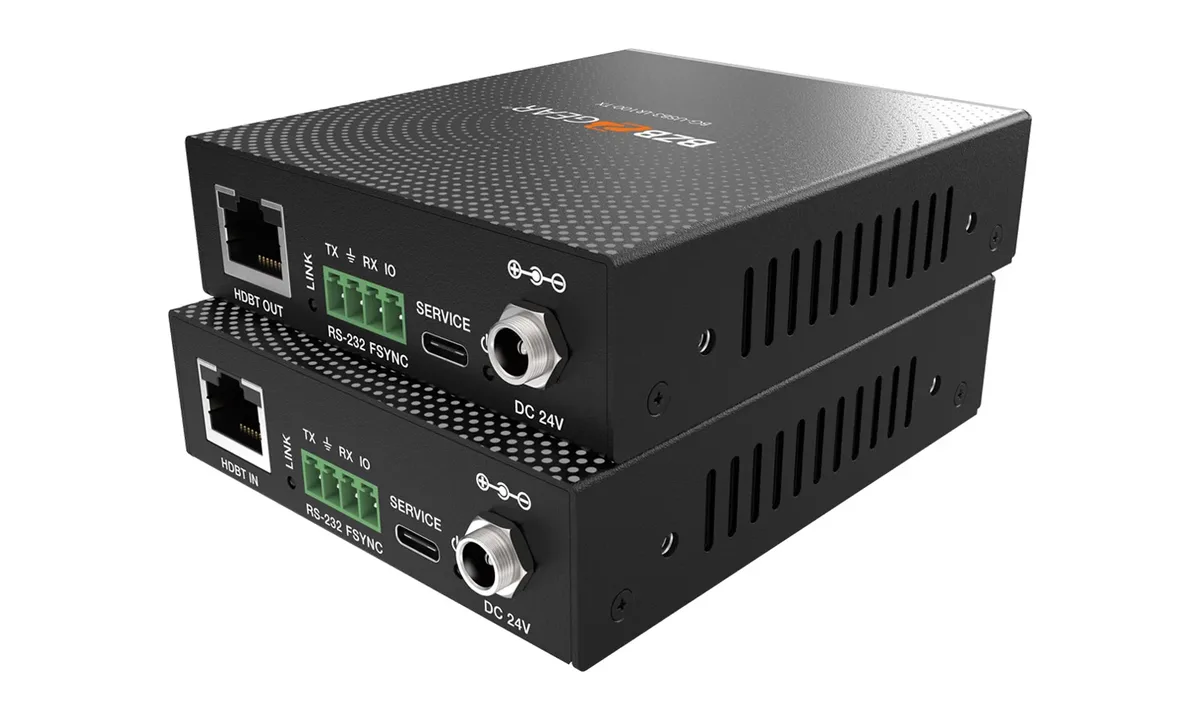

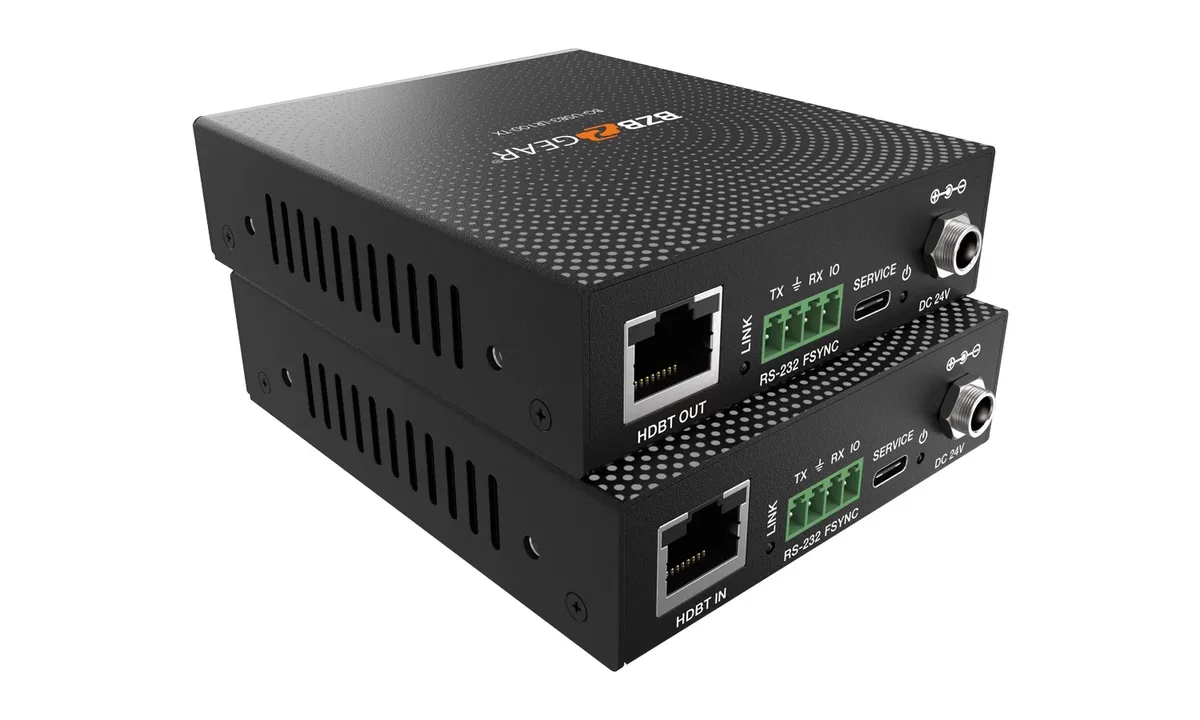

Bi-directional 24V Power over Cable means either end can supply the pair, which matters when the remote position has no socket. RS-232 passes through for control, and an FSYNC GPIO pair carries a frame sync signal for camera and machine-vision work. Both units are metal, 85 x 100 mm, and the PoC supply provides up to 40W.
