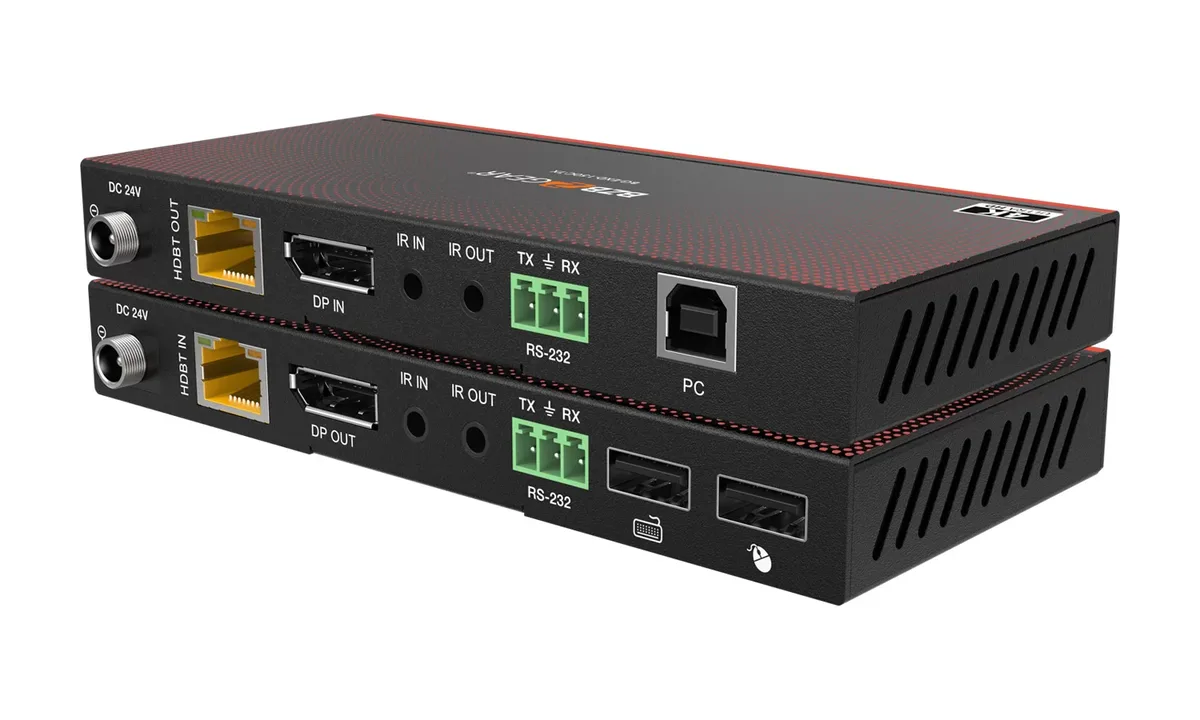

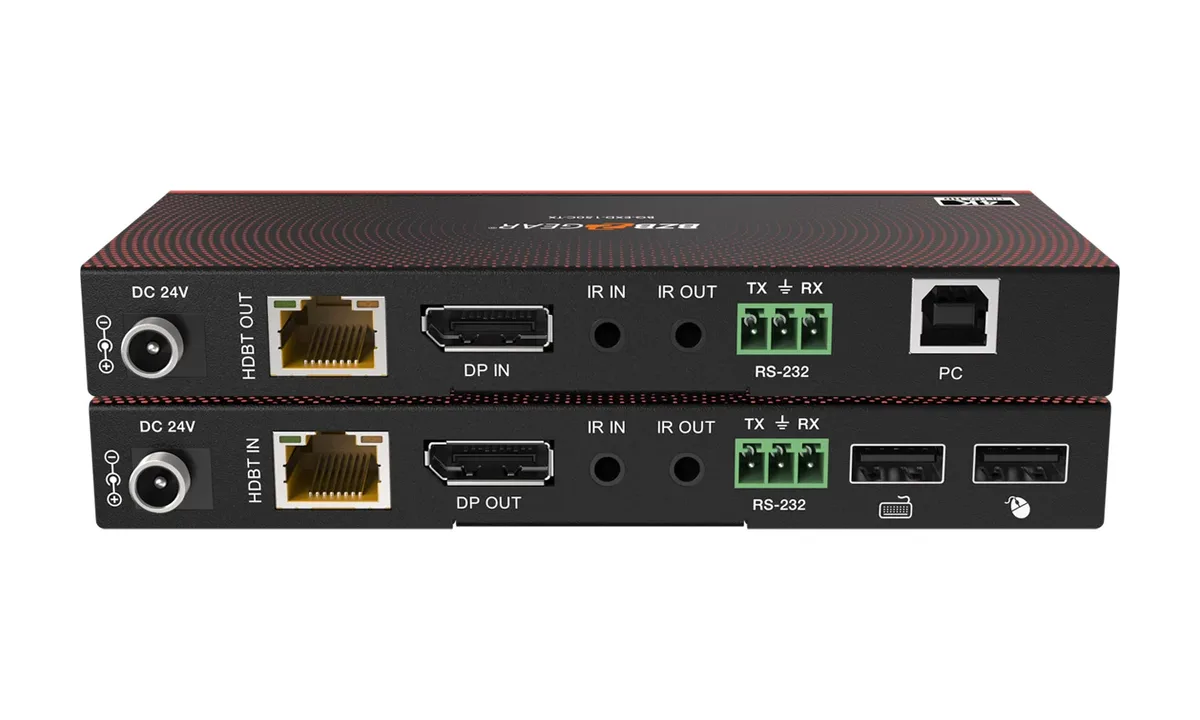

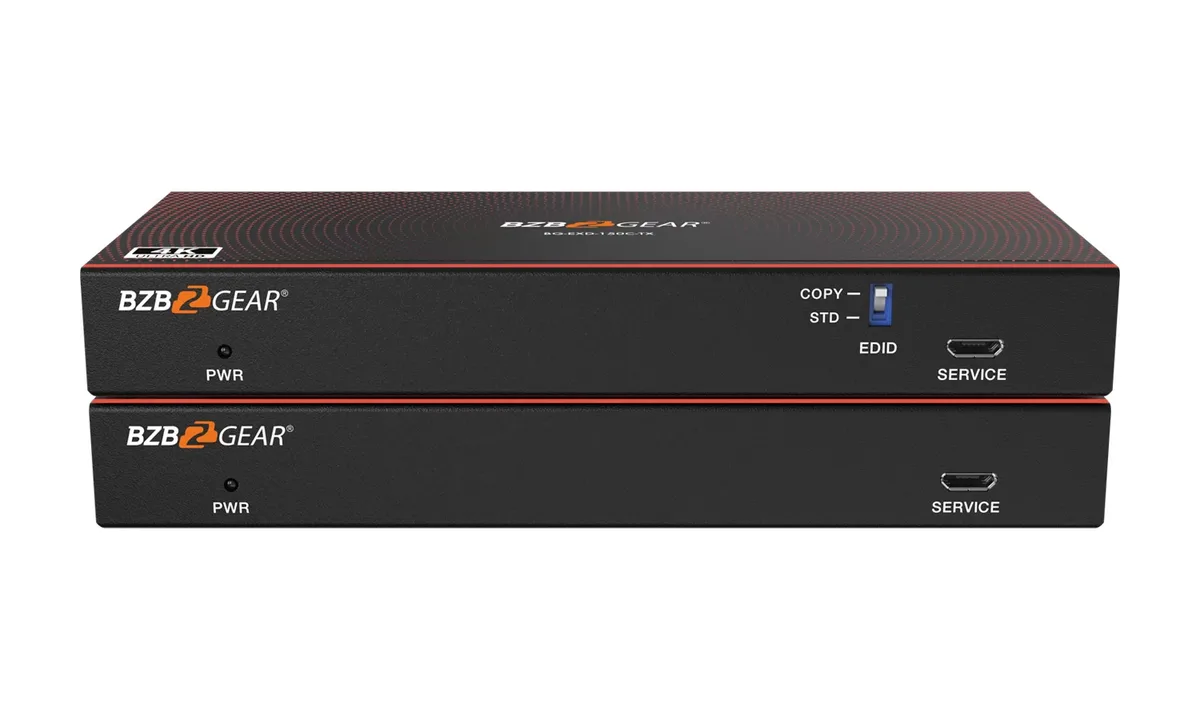

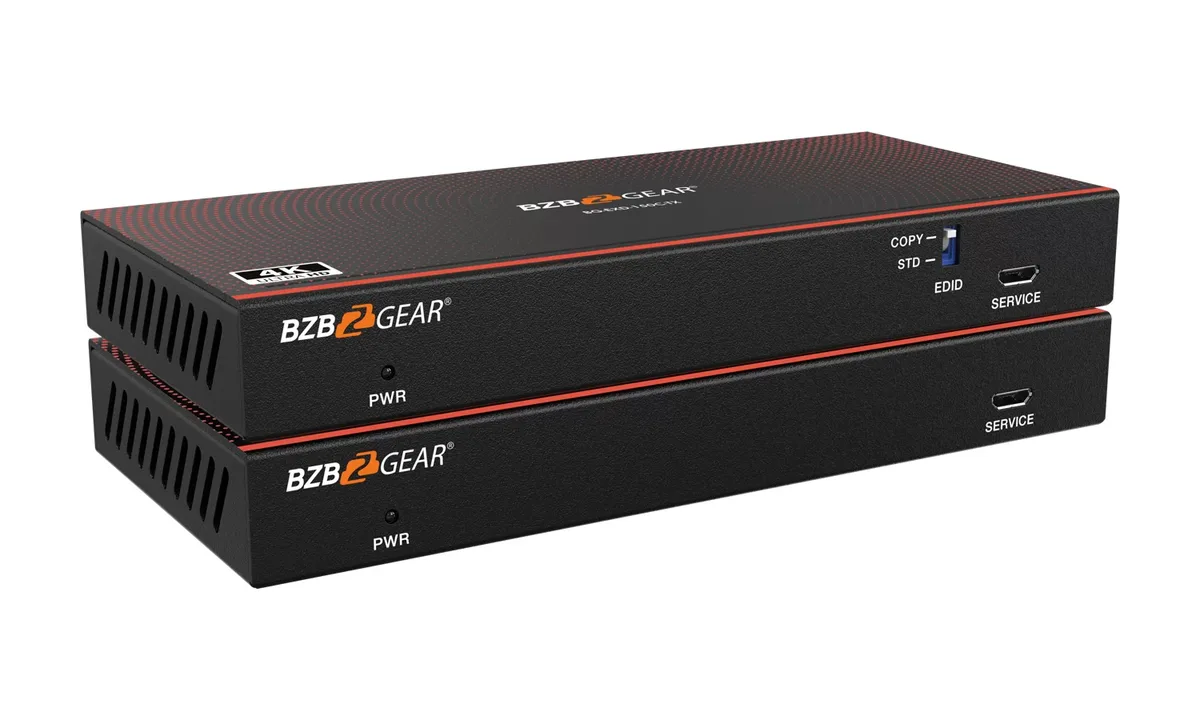

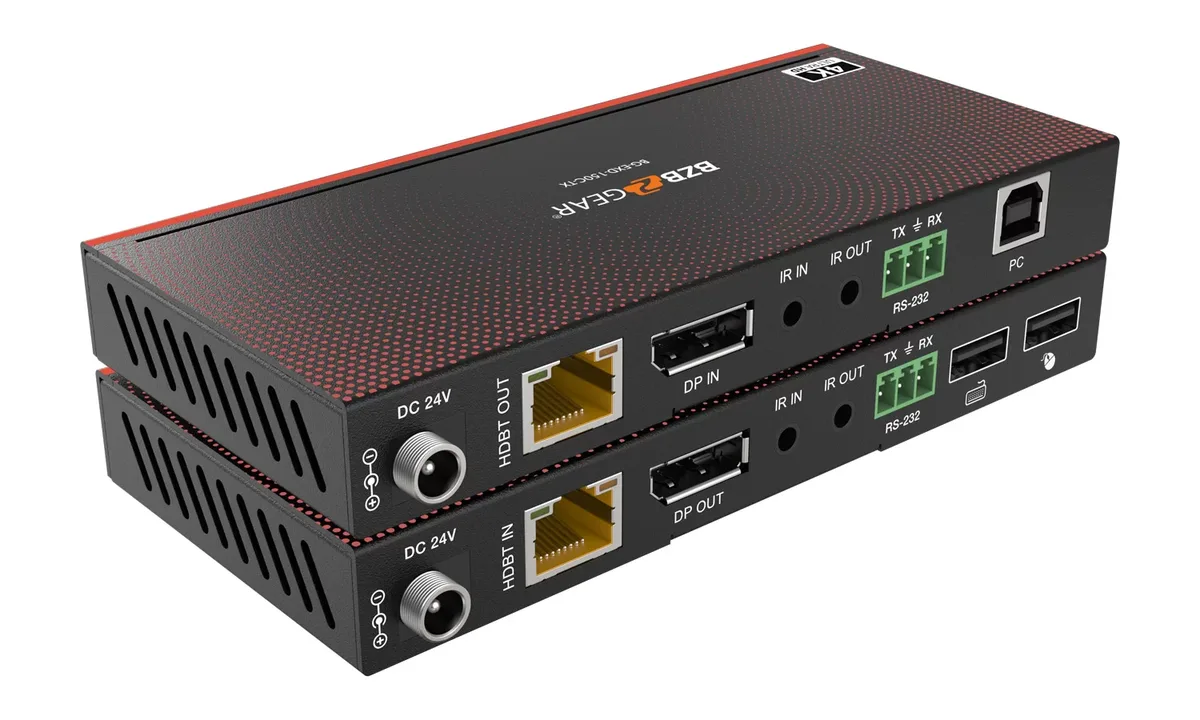

BZBGear BG-EXD-150C DisplayPort KVM Extender Kit over HDBaseT

The BG-EXD-150C converts a DisplayPort 1.2a source to HDBaseT and sends it down a single Cat6 cable, reaching 100 m at 4K60 YUV 4:4:4 or 150 m at 1080p. That covers the case a HDMI extender cannot: a workstation or medical cart with a DisplayPort output only.

USB KVM travels with the video so a keyboard and mouse stay at the display end, bi-directional IR lets either end control the other, and RS-232 passes through for a control system. Power over Cable works in both directions, so only one unit of the pair needs a supply. Link bandwidth is up to 21.6 Gbps.
