BZBGear BG-IPGEAR-ULTRA-C Smart Controller

The IPGEAR-ULTRA-C is the management box for an IPGEAR-ULTRA deployment. It sits on the same gigabit network as the transceivers and gives one place to route sources, build video walls and push settings, rather than configuring each endpoint on its own.

Beyond the two gigabit LAN ports, one of which supplies PoE to the video network, it carries IR in and out, a six-pin digital I/O block and two RS-232 ports, so the AV-over-IP system can be tied into room control without a separate gateway.

Network bandwidth	1G
Transmission distance	100m (CAT5E/6/6A/7)

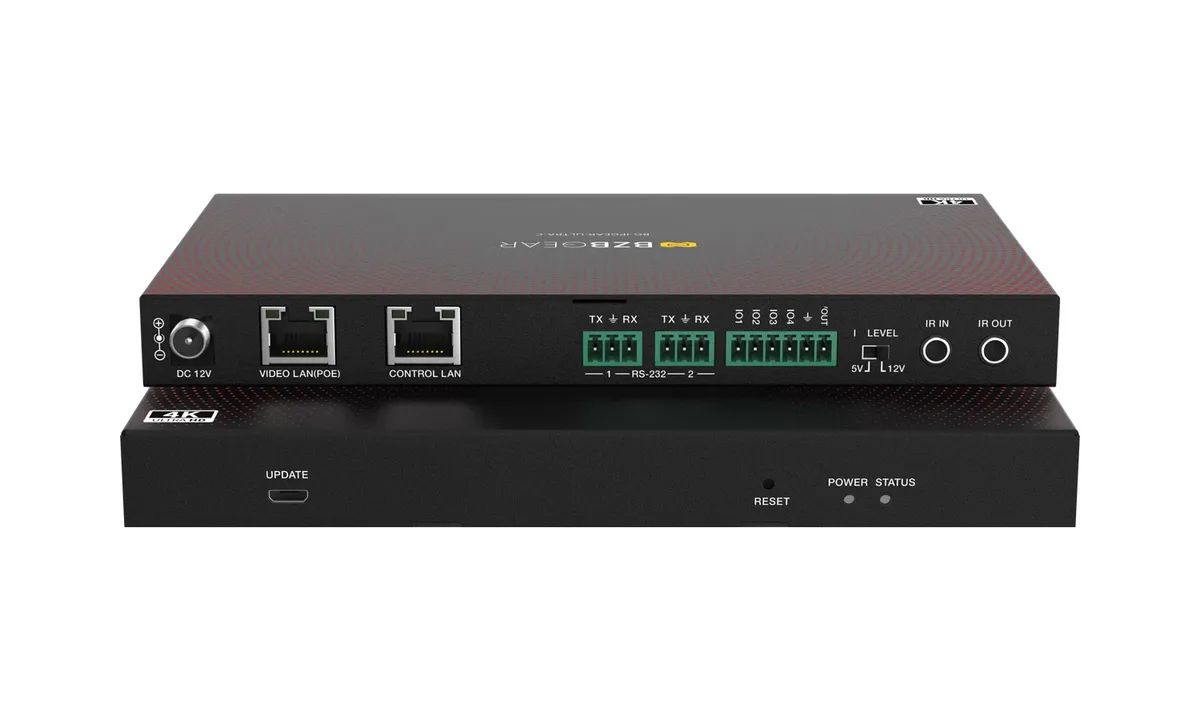

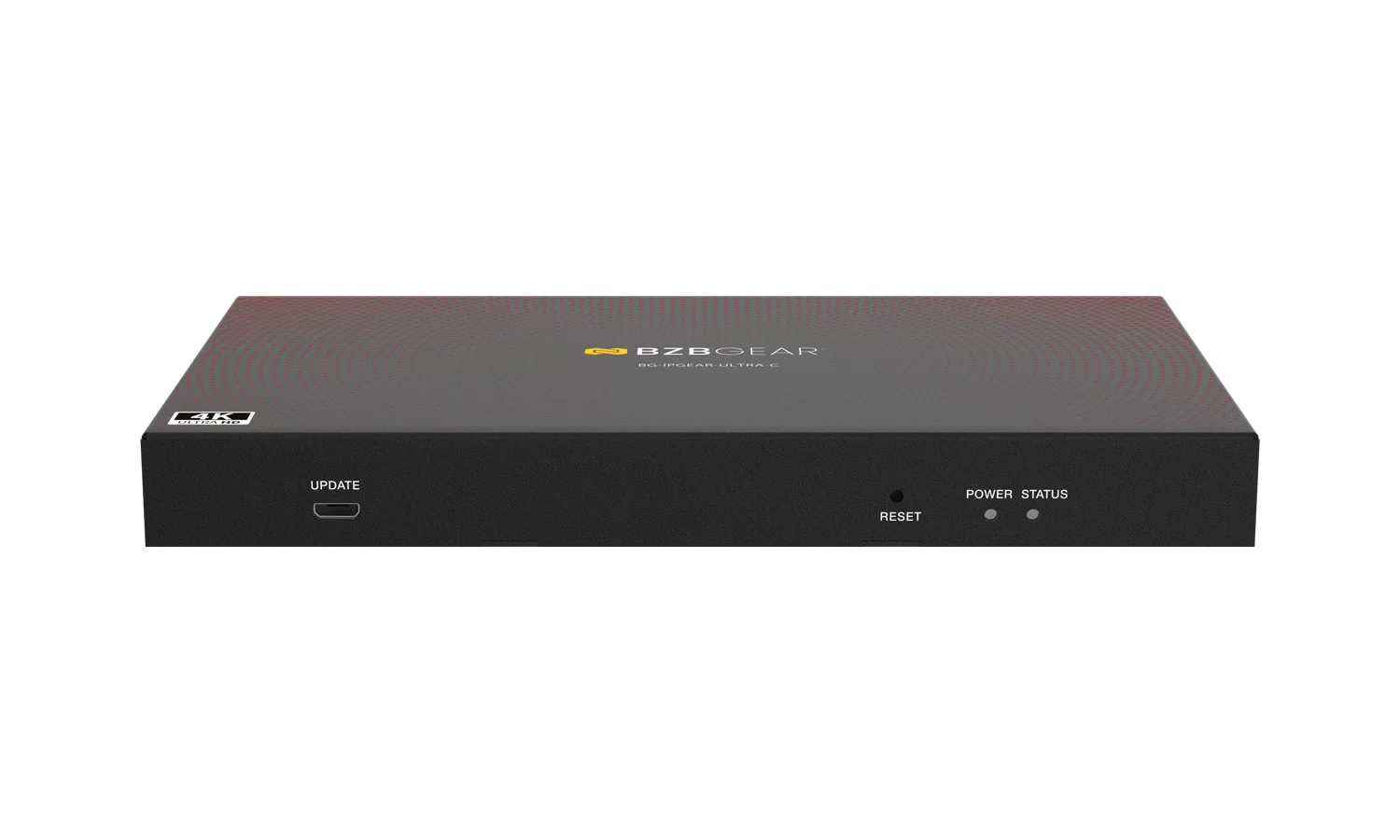

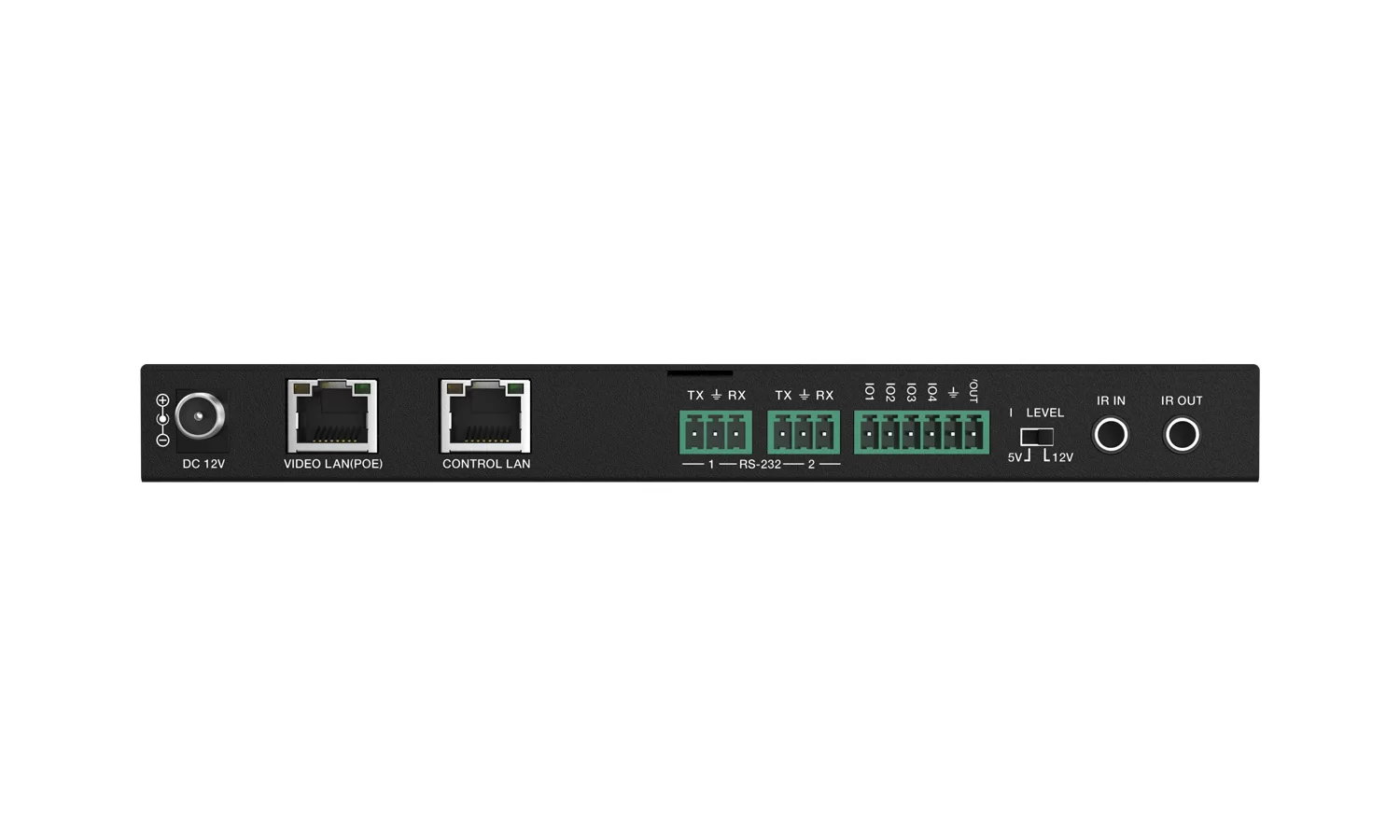

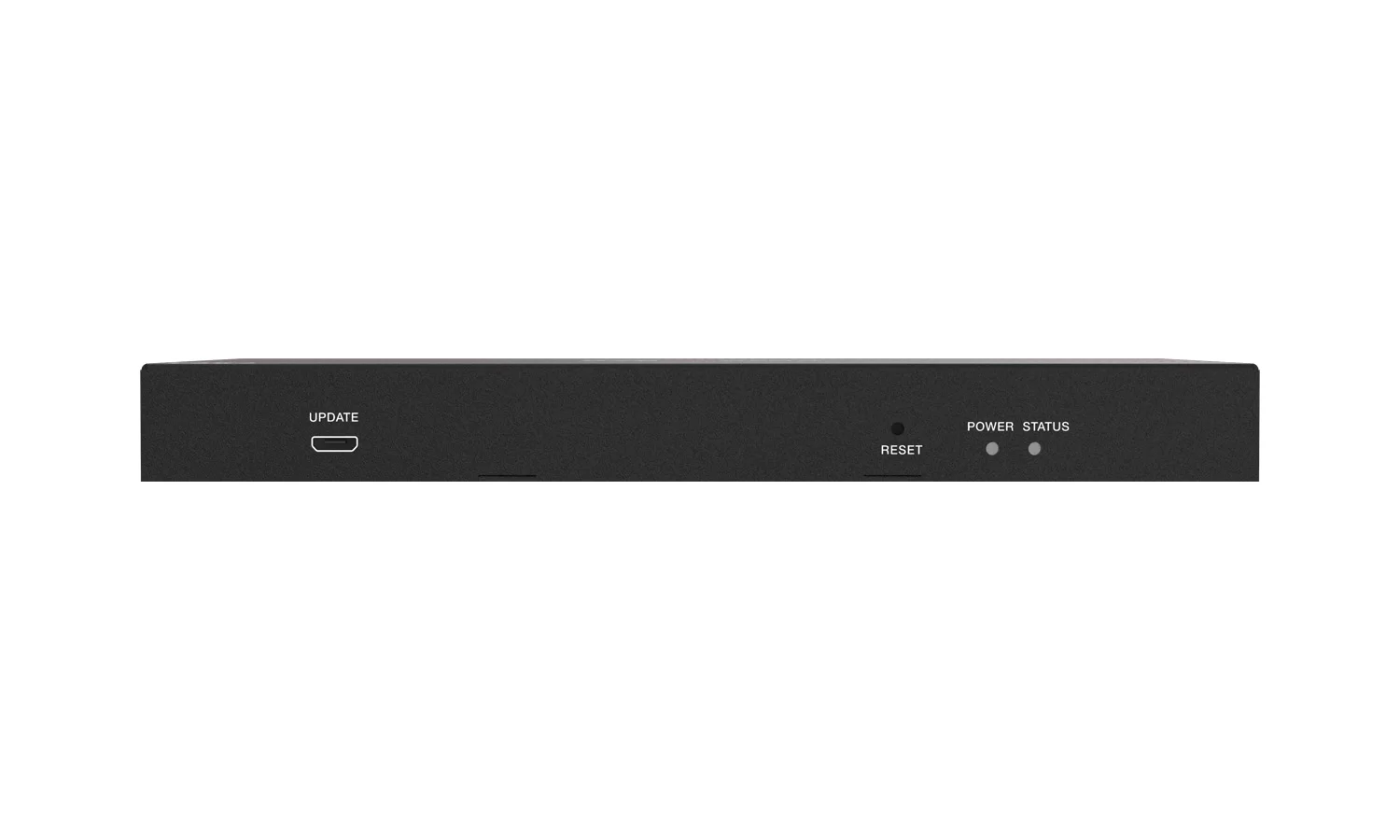

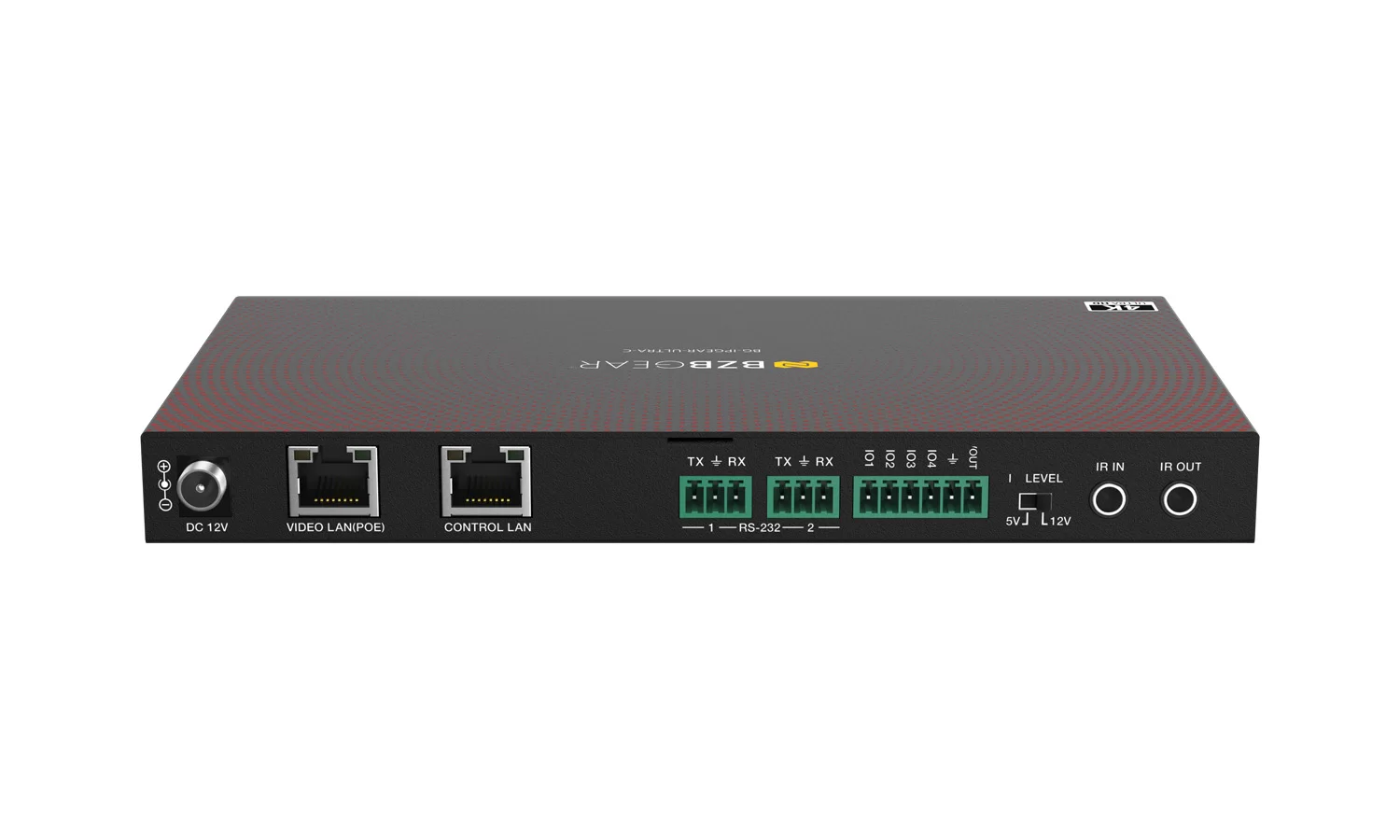

Control ports	2 x 1G LAN [RJ45 connector] [VIDEO LAN supports PoE] 1 x IR IN [3.5mm audio jack, 12V level] 1 x IR OUT [3.5mm audio jack, 5V level] 1 x DIGITAL I/O [6-pin 3.81mm phoenix connector] 2 x RS-232 [3-pin 3.81mm phoenix connector] 1 x UPDATE [Micro USB, 5-pin female]
Housing	Metal Enclosure
Power supply	12V/2.5A
Power consumption	6.84W
Operating temperature	32 degreesF ~ 104 degreesF / 0 degreesC ~ 40 degreesC
Dimensions (W x D x H)	8.0in x 4.6in x 0.85in [204mm x 117.5mm x 21.5mm]
Weight	1.3 lbs [597g]
