Name: BZBGear BG-EXH-100C5 HDBaseT Extender
Brand: BZBGear
Price: 599.00 USD
Availability: InStock

The EXH-100C5 covers the standard long HDBaseT run: 4K at 50/60 Hz on a single category cable, dropping back to 1080p for the longest distances, with audio breakout to S/PDIF and analog at the transmitter. Power over Cable feeds the receiver from the transmitter end.

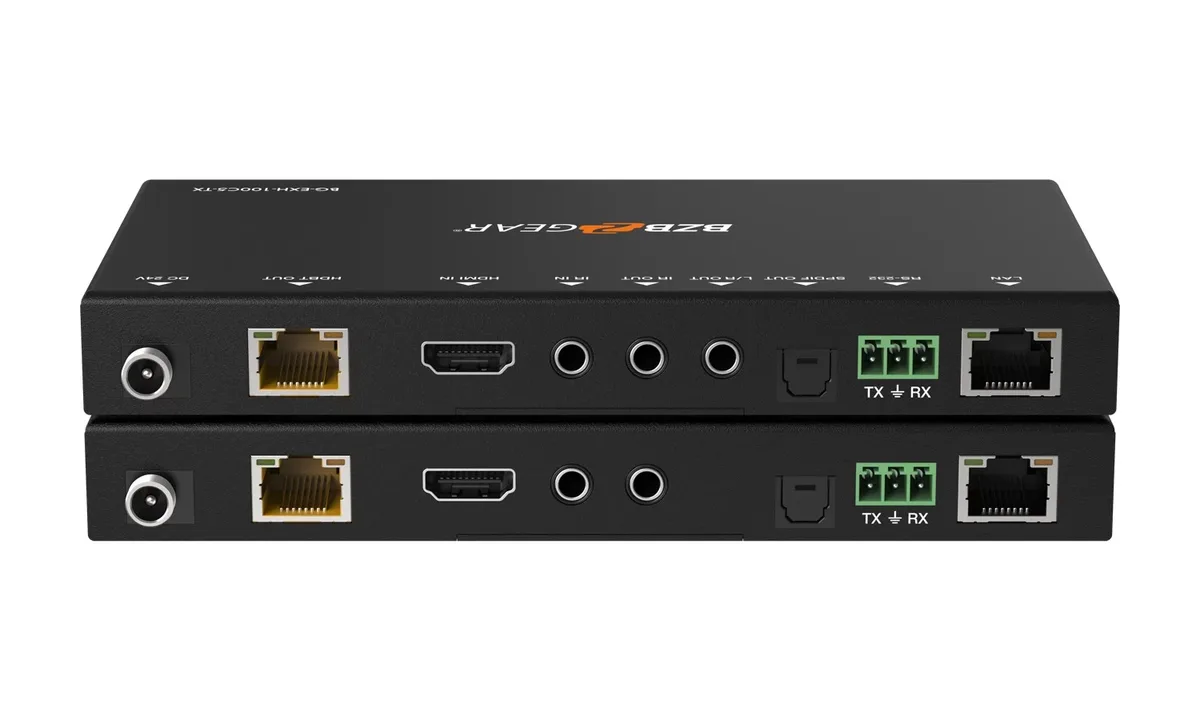

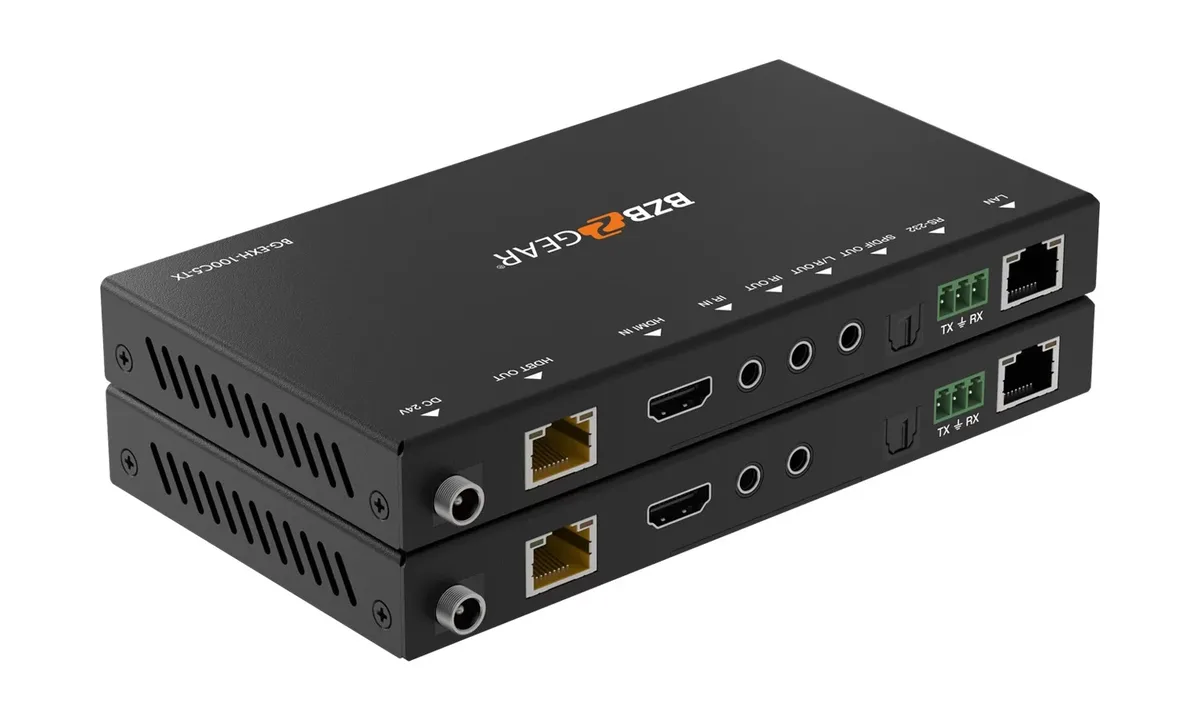

Both ends carry a LAN port for Ethernet pass-through, IR in and out, and an RS-232 Phoenix connector for control, so a display at the far end of a building can still be driven from the rack. The units are small - 163 mm wide, under 16 mm tall - and weigh well under half a pound each.

HDCP compliance	HDCP 2.2 / 1.x
Video bandwidth	18Gbps
Video resolution	4K 50/60Hz 4:4:4 4K 50/60Hz 4:2:2 4K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i All PC resolutions including 1920 x 1200
Colour space	RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Colour depth	8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K60Hz 4:4:4 )
HDMI audio formats	LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Transmitter connections	Input: 1x HDMI Type A [19-pin female] Output: 1x HDBT OUT [RJ45, 8-pin female] 1x SPDIF OUT [S/PDIF] 1xL/R OUT [3.5mm Stereo Mini-jack] 1xLAN [RJ45] Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1x SERVICE [Mini-USB, Update port]
Receiver connections	Input: 1x HDBT IN [RJ45, 8-pin female] / 1x SPDIF IN [S/PDIF] Output: 1x HDMI Type A [19-pin female] / 1x LAN [RJ45] Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack] 1x SERVICE [Mini-USB, Update port]
Power supply	Input: AC 100 - 240V 50/60Hz Output: DC 24V/1A (Locking connector)
Dimensions	Transmitter / Receiver: 6.4"(W) x 3.5"(D) x 0.63"(H) [163mm (W) x 90mm (D) x 16mm (H)]
